Old 02-05-2010, 07:01 PM   #1
Senior Member
10 Year Member
5 Year Member

Scikotics
SL Member

Carlanga's Avatar
Carlanga 32/M

Join Date: Apr 2004
Location: Houston, TX (Puerto Rico)
iTrader: (0)
Default Engine Swap and LSD Install!!

For reasons I will be unveiling later, I had to do an engine swap on my baby.
Hey Mike, I found out what happened. Here are some pics of the old engine and new toy going in.

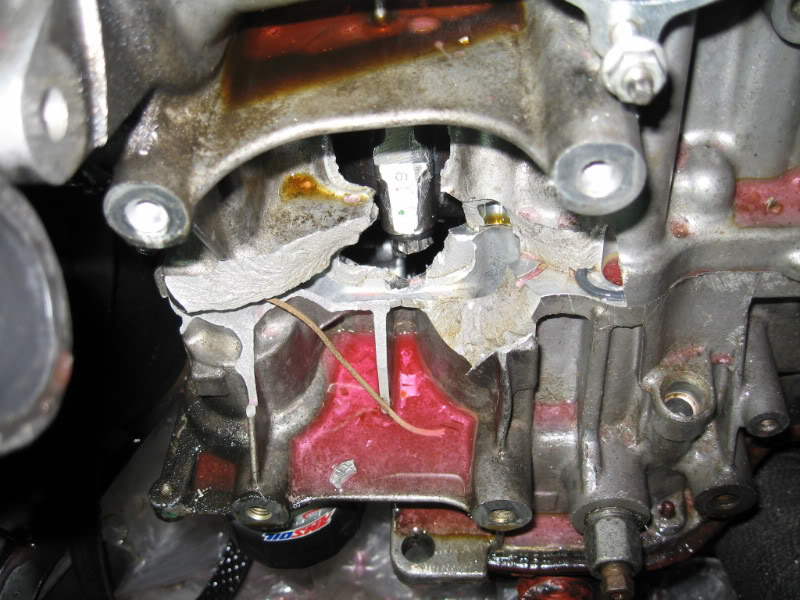

Old engine with 67,000 miles
Click the image to open in full size.

Click the image to open in full size.

New 08' Engine going in
Click the image to open in full size.

Click the image to open in full size.

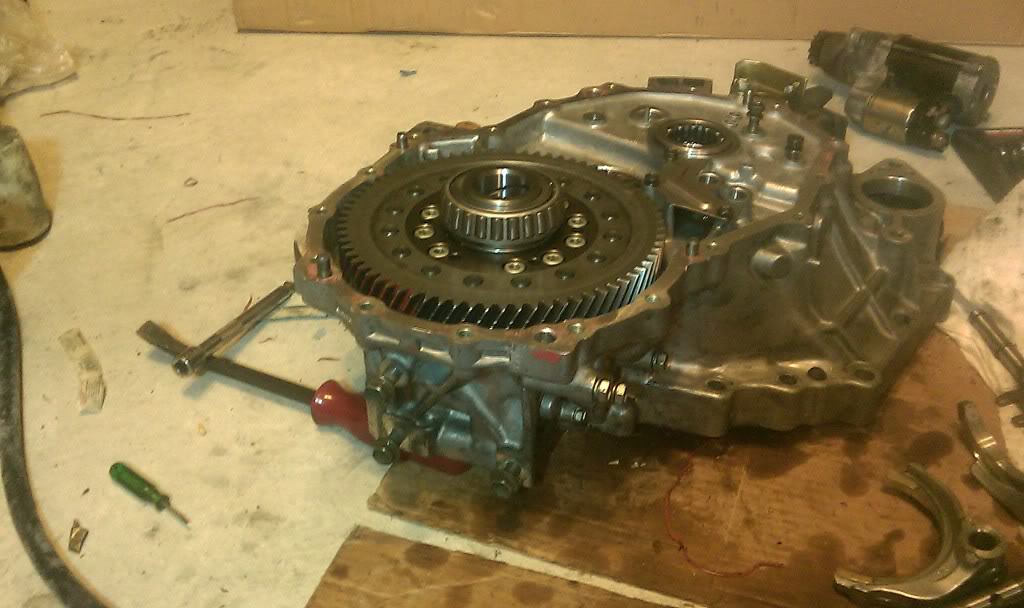

Quaife LSD thanks to Autotech! Heck of a deal.
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

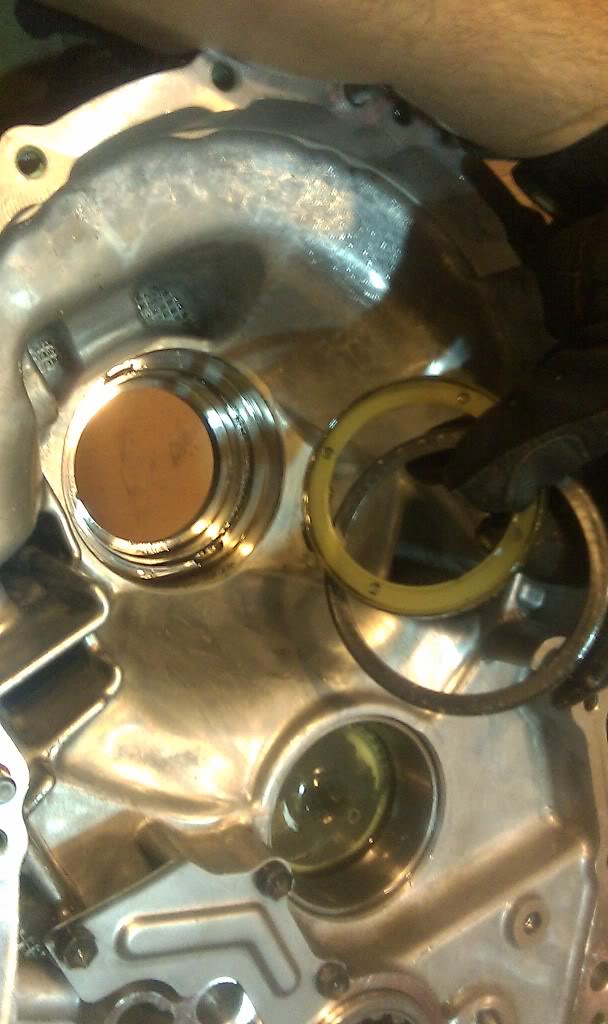

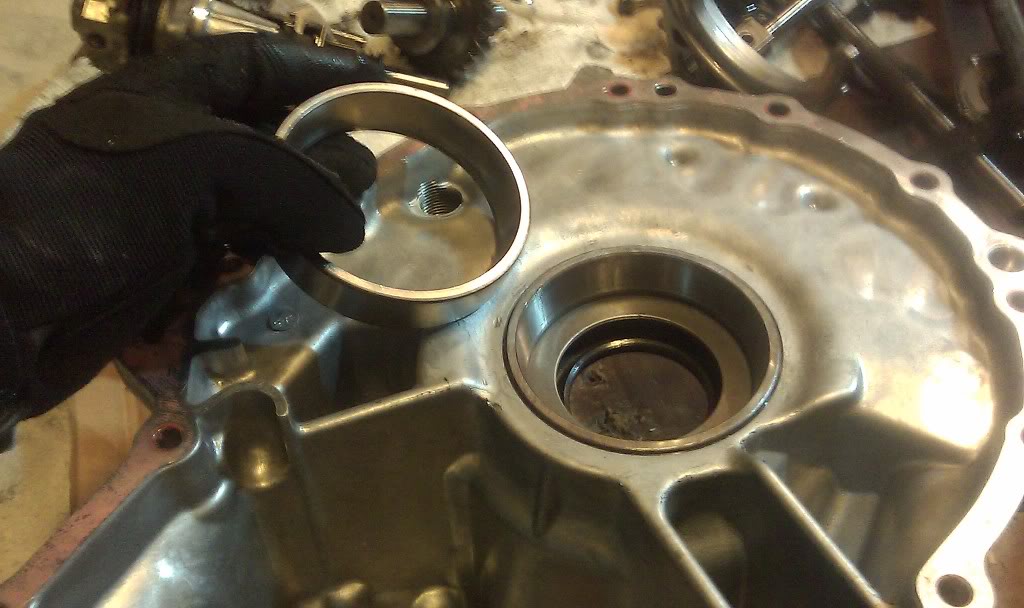

Install kit from TRDsparks. I think the bearings are the only necessary parts.
Click the image to open in full size.

Click the image to open in full size.

Old Differential
Click the image to open in full size.


Later
__________________
Sponsored by:
Crush Automotive Customs

Practice is the best of all Instructors!

Last edited by Carlanga; 02-05-2010 at 07:14 PM.
Carlanga is offline   Reply With Quote
Old 02-05-2010, 07:21 PM   #2
Senior Member
5 Year Member
SL Member

rangerryda's Avatar
rangerryda 28/M


Join Date: May 2009
Location: Melbourne FL
iTrader: (1)
Default

Sweet, moar pics as you move on with project. How sweet of a deal exactly did you get on the LSD? BTW, that block will be fine with a smidgeon of JB Weld.
rangerryda is offline   Reply With Quote
Old 02-05-2010, 07:25 PM   #3
Senior Member
5 Year Member
SL Member

tcturbo07's Avatar
tcturbo07 25/M

Join Date: Dec 2008
Location: Lancaster PA
iTrader: (0)
Default

Ouch, at least you ll be getting the new motor in. You have any plans on building the new motor?
__________________
Ptuning Dyno 287hp , 274ft/lb
tcturbo07 is offline   Reply With Quote
Old 02-05-2010, 07:30 PM   #4
Senior Member
5 Year Member
SL Member

flintMicaTC's Avatar
flintMicaTC 27/M

Join Date: Aug 2006
Location: Katy/Houston!
iTrader: (0)
Flintmicatc
Default

i'm in for pics! looks great so far! i wanna see this beast with an lsd down the track!
__________________
x 05' Flint Mica Tc
x 08' World Rally Blue Sti Wagon
08' Platinum Graphite G37 Coupe
flintMicaTC is offline   Reply With Quote
Old 02-05-2010, 09:07 PM   #5
Senior Member
10 Year Member
5 Year Member

Scikotics
SL Member

Carlanga's Avatar
Carlanga 32/M

Join Date: Apr 2004
Location: Houston, TX (Puerto Rico)
iTrader: (0)
Default

Got LSD for $716 brand new and lifetime warranty.
Engine for $850, thanks Chris for finding that gold mine! Not planning on doing a build for at least 1.5 years from now, got twin baby girls coming on June

Quote:
Originally Posted by flintMicaTC View Post
i'm in for pics! looks great so far! i wanna see this beast with an lsd down the track!
I'm hoping I can see it go down my street, lol
__________________
Sponsored by:
Crush Automotive Customs

Practice is the best of all Instructors!
Carlanga is offline   Reply With Quote
Old 02-05-2010, 09:10 PM   #6
Moderator
Premium Member
5 Year Member
Trader
SL Member
Moderator

crush02342002's Avatar
crush02342002 32/M

Join Date: Feb 2008
Location: Houston, Tx
iTrader: (2)
Default

hey look its my hand...lmao
__________________
Quote:
Originally Posted by DezodDon View Post
I made a sprayer using the windshield washer bottle and pump, a pressure switch, vac hose, and 360 degree misters from a hydroponics store. Worked awesome.
Quote:
Originally Posted by gingles View Post
hydroponics store eh?
crush02342002 is offline   Reply With Quote
Old 02-05-2010, 09:43 PM   #7
Senior Member
5 Year Member

SL Member

O5_TRD_tC's Avatar
O5_TRD_tC 28/M

Join Date: May 2005
Location: Bay Area!
iTrader: (0)
Send a message via AIM to O5_TRD_tC
Default

watching!
__________________
LED swaps at competitive pricing! Will beat anyone’s price!
Served locally out of NorCal or by mail.
Feel free to PM me for a quote

shop @ Mengmotorsports.com just $5 shipping on ANY order!
O5_TRD_tC is offline   Reply With Quote
Old 02-05-2010, 10:02 PM   #8
Senior Member
10 Year Member
5 Year Member

Scikotics
SL Member

Carlanga's Avatar
Carlanga 32/M

Join Date: Apr 2004
Location: Houston, TX (Puerto Rico)
iTrader: (0)
Default

Update

I'll try posting as I go, cuz if not I will never do a clear DIY.

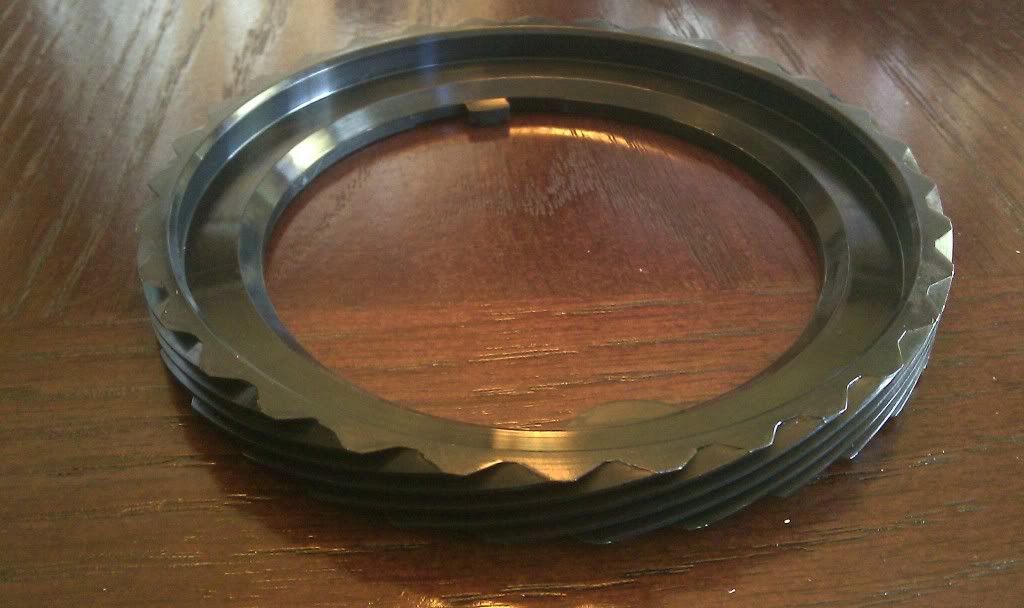

Useless speedo gear, used cuz was already purchased.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.

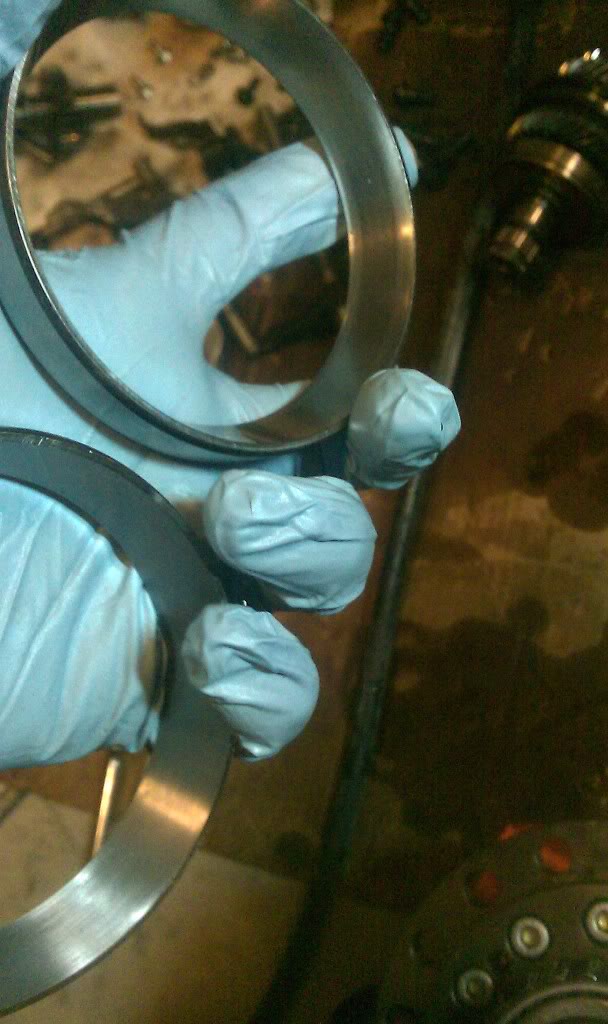

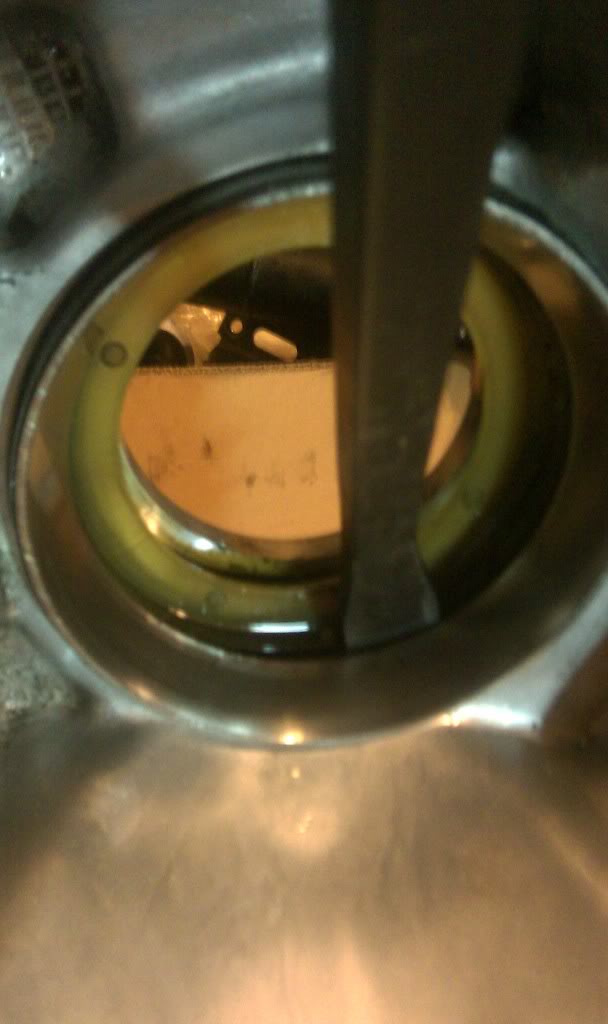

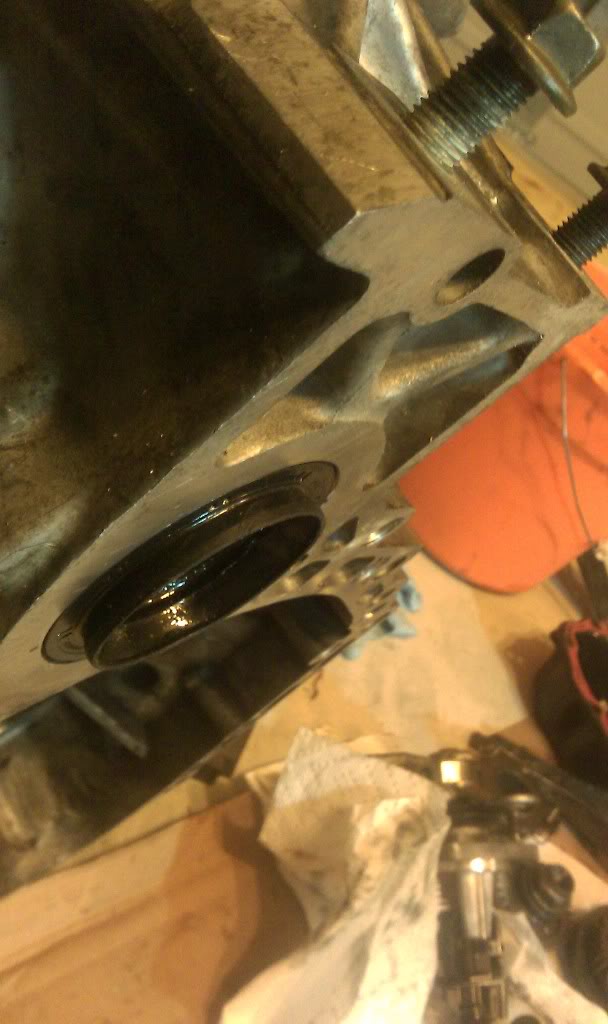

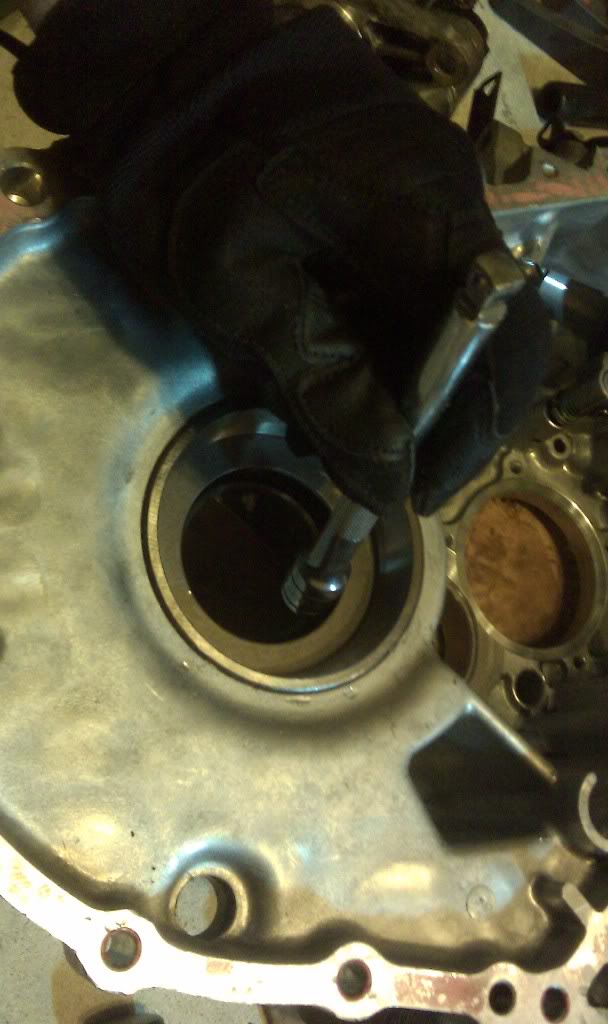

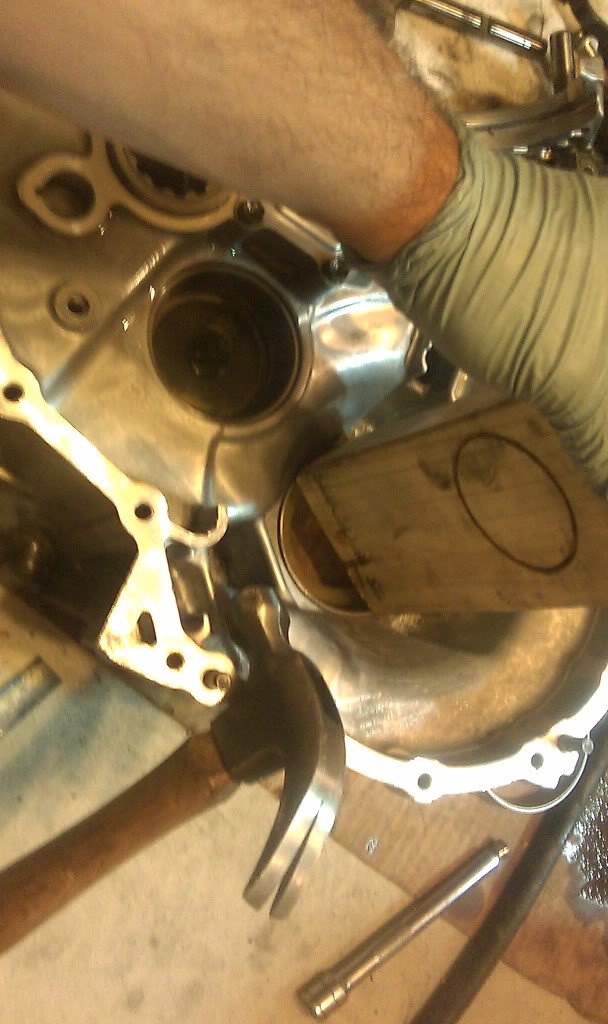

Tools/technique used to press bearings to LSD.
I started by holding it with my legs and hammering them to place with a rubber mallet. Go around a couple of times until it's there safe. Once that's done follow pics below and keep hitting carefully with rubber mallet. It helps to have someone hold the differential against the 2x4, btw the piping used is 2.5in ID. It was from one of my intercooler pipes back in the day.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
__________________
Sponsored by:
Crush Automotive Customs

Practice is the best of all Instructors!
Carlanga is offline   Reply With Quote
Old 02-05-2010, 10:06 PM   #9
Moderator
Premium Member
5 Year Member
Trader
SL Member
Moderator

crush02342002's Avatar
crush02342002 32/M

Join Date: Feb 2008
Location: Houston, Tx
iTrader: (2)
Default

now that is a thing of beauty...lol
__________________
Quote:
Originally Posted by DezodDon View Post
I made a sprayer using the windshield washer bottle and pump, a pressure switch, vac hose, and 360 degree misters from a hydroponics store. Worked awesome.
Quote:
Originally Posted by gingles View Post
hydroponics store eh?
crush02342002 is offline   Reply With Quote
Old 02-05-2010, 10:08 PM   #10
Moderator
Premium Member
5 Year Member
Trader
SL Member
Moderator

crush02342002's Avatar
crush02342002 32/M

Join Date: Feb 2008
Location: Houston, Tx
iTrader: (2)
Default

does the gear fit around it snug?
__________________
Quote:
Originally Posted by DezodDon View Post
I made a sprayer using the windshield washer bottle and pump, a pressure switch, vac hose, and 360 degree misters from a hydroponics store. Worked awesome.
Quote:
Originally Posted by gingles View Post
hydroponics store eh?
crush02342002 is offline   Reply With Quote
Old 02-05-2010, 11:08 PM   #11
Senior Member
5 Year Member
SL Member

madmarx's Avatar
madmarx 46/M

Join Date: Aug 2007
Location: Phoenix Arizona
iTrader: (0)
Default

Could you have used the old speedo gear if you had not purchased a new one?
__________________
I'm staying!......I'm finishing my coffee!
madmarx is offline   Reply With Quote
Old 02-05-2010, 11:15 PM   #12
Senior Member
5 Year Member

Scikotics
SL Member

all4degame's Avatar
all4degame 25/M

Join Date: Jun 2005
Location: Broken Arrow, OK
iTrader: (0)
Send a message via AIM to all4degame
Default

Good luck Carlos! I'm glad to see everything is working out for you! That hole you made in your block is pretty nice by the way, haha. You guys down there in Houston keep me inspired.
__________________
Scikotics
Your Friendly Neighborhood Scion Club
www.scikotics.com

Turbo install -> blown motor -> back to stock motor adventure -> Boost again with PTuning?
http://www.scionlife.com/forums/view...102295#4102295

Turbo Partout Thread
http://www.scionlife.com/forums/view...885&highlight=
all4degame is offline   Reply With Quote
Old 02-05-2010, 11:31 PM   #13
Moderator
Premium Member
5 Year Member
Trader
SL Member
Moderator

crush02342002's Avatar
crush02342002 32/M

Join Date: Feb 2008
Location: Houston, Tx
iTrader: (2)
Default

Quote:
Originally Posted by madmarx View Post
Could you have used the old speedo gear if you had not purchased a new one?
you could but its useless...when we first opened up the tranny we seen that it indeed has a speedo gear and from the first look of it it kinda looked like it was shimming the bearing. Carlos told me though that it doesnt shim it as you can see from the pics so its absolutly worthless.
__________________
Quote:
Originally Posted by DezodDon View Post
I made a sprayer using the windshield washer bottle and pump, a pressure switch, vac hose, and 360 degree misters from a hydroponics store. Worked awesome.
Quote:
Originally Posted by gingles View Post
hydroponics store eh?
crush02342002 is offline   Reply With Quote
Old 02-05-2010, 11:33 PM   #14
Moderator
Premium Member
5 Year Member
Trader
SL Member
Moderator

crush02342002's Avatar
crush02342002 32/M

Join Date: Feb 2008
Location: Houston, Tx
iTrader: (2)
Default

Quote:
Originally Posted by all4degame View Post
Good luck Carlos! I'm glad to see everything is working out for you! That hole you made in your block is pretty nice by the way, haha. You guys down there in Houston keep me inspired.
man i told you to come down here, well take a day at the track and come home and bbq or something.
__________________
Quote:
Originally Posted by DezodDon View Post
I made a sprayer using the windshield washer bottle and pump, a pressure switch, vac hose, and 360 degree misters from a hydroponics store. Worked awesome.
Quote:
Originally Posted by gingles View Post
hydroponics store eh?
crush02342002 is offline   Reply With Quote
Old 02-05-2010, 11:51 PM   #15
Senior Member
5 Year Member

Scikotics
SL Member

all4degame's Avatar
all4degame 25/M

Join Date: Jun 2005
Location: Broken Arrow, OK
iTrader: (0)
Send a message via AIM to all4degame
Default

I'm jealous, you guys can still bbq down there? All I see outside is snow and slush. Its depressingly cold outside for that stuff. haha. How bout I drive down there sometime this summer and drop my car off at your house for some "mods" since my car is too slow to go down the track. :D
__________________
Scikotics
Your Friendly Neighborhood Scion Club
www.scikotics.com

Turbo install -> blown motor -> back to stock motor adventure -> Boost again with PTuning?
http://www.scionlife.com/forums/view...102295#4102295

Turbo Partout Thread
http://www.scionlife.com/forums/view...885&highlight=
all4degame is offline   Reply With Quote
Old 02-06-2010, 12:19 AM   #16
Senior Member
5 Year Member
SL Member

tcchris38's Avatar
tcchris38 26/M

Join Date: Mar 2007
Location: South Jersey
iTrader: (0)
Send a message via AIM to tcchris38
Default

Wow that LSD looks so funny next to the pen. It so weird seeing how small it acually is
__________________
I dont think ill ever be done with my car!!!!!!!!!!!!
tcchris38 is offline   Reply With Quote
Old 02-06-2010, 01:12 AM   #17
Moderator
Premium Member
5 Year Member
Trader
SL Member
Moderator

crush02342002's Avatar
crush02342002 32/M

Join Date: Feb 2008
Location: Houston, Tx
iTrader: (2)
Default

Quote:
Originally Posted by all4degame View Post
I'm jealous, you guys can still bbq down there? All I see outside is snow and slush. Its depressingly cold outside for that stuff. haha. How bout I drive down there sometime this summer and drop my car off at your house for some "mods" since my car is too slow to go down the track. :D
today was a great day to bbq, how do you think i can stand doing that 2step today...lol..it was prolly 68f or better.

whenever your ready bro come on over.
__________________
Quote:
Originally Posted by DezodDon View Post
I made a sprayer using the windshield washer bottle and pump, a pressure switch, vac hose, and 360 degree misters from a hydroponics store. Worked awesome.
Quote:
Originally Posted by gingles View Post
hydroponics store eh?
crush02342002 is offline   Reply With Quote
Old 02-06-2010, 01:16 AM   #18
Moderator
Premium Member
5 Year Member
Trader
SL Member
Moderator

crush02342002's Avatar
crush02342002 32/M

Join Date: Feb 2008
Location: Houston, Tx
iTrader: (2)
Default

Quote:
Originally Posted by tcchris38 View Post
Wow that LSD looks so funny next to the pen. It so weird seeing how small it acually is
kinda makes you wonder why it cost soo much huh...
__________________
Quote:
Originally Posted by DezodDon View Post
I made a sprayer using the windshield washer bottle and pump, a pressure switch, vac hose, and 360 degree misters from a hydroponics store. Worked awesome.
Quote:
Originally Posted by gingles View Post
hydroponics store eh?
crush02342002 is offline   Reply With Quote
Old 02-06-2010, 03:16 AM   #19
Senior Member
10 Year Member
5 Year Member

Scikotics
SL Member

Carlanga's Avatar
Carlanga 32/M

Join Date: Apr 2004
Location: Houston, TX (Puerto Rico)
iTrader: (0)
Default

Quote:
Originally Posted by all4degame View Post
Good luck Carlos! I'm glad to see everything is working out for you! That hole you made in your block is pretty nice by the way, haha. You guys down there in Houston keep me inspired.
Thanks bro! U better make it here for the summer, that way u could get boosted in a weekend.

Here's some more:
To get out the driver side axle seal and lsd bearing race, tap out with anything that might help. The install kit comes with this seal anyways, so if you break it that would be no problem. One thing to note is, once pressing back the new seal and you get it flush with the housing, go in an extra 1/8 inch. Or better, take note of how far in the old one was.
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

To get the passenger side axle combo I used a sears pry bar, reason being was that there's a flimsy plastic oil blocker between the oil seal and lsd bearing race.
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Cleaning up the housing with throttle body cleaner lol, only thing I had.
Click the image to open in full size.

Old and new pass side lsd bearing races, notice the wear?
Click the image to open in full size.

Technique used for both lsd bearing races.
Click the image to open in full size.

the 2.5 in pipe came out very handy, make sure to make the seal flush with the housing
Click the image to open in full size.

Finally got the LSD assembled, do follow the maintenance repair manual. It says to bake the differential gear ring to 230F for a reason. I tried installing it cool and it was kind of though. I put it in the oven at 250F for about 15 min and when I put it back together it was as loose as a hooker's... It does work, but do get it back together and tight down quick cuz it will start shrinking fast. Remember 78 ft/lb and red thread sealant.
Click the image to open in full size.

be back tomorrow with more :-)
__________________
Sponsored by:
Crush Automotive Customs

Practice is the best of all Instructors!

Last edited by Carlanga; 02-06-2010 at 03:22 AM.
Carlanga is offline   Reply With Quote
Old 02-06-2010, 03:47 AM   #20
Junior Member
5 Year Member
blacktc06 30/M

Join Date: Nov 2006
iTrader: (0)
Default

Be sure to use OEM toyota Red FIPG. This will retian oem look on tranny. And also will give you best seal possible!

Nice. If there is no speedo gear isint that an issue lol?
__________________
93 Hatch Built/N boosted
06 Now White/ Turbo tc.
blacktc06 is offline   Reply With Quote
Old 02-06-2010, 03:47 AM
Scionlife.com
Scion TC



Paid Advertisement



Reply


Tags
diy, engine, houston, install, installing, installo, life, lsd, motor, scion, scionlife, swap, tc, toyota, tx, xd


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT. The time now is 08:36 AM.
Advertising - Privacy Statement - Terms of Service - Jobs
vBulletin® v3.8.7, Copyright ©2000-2014, vBulletin Solutions, Inc.


Forums Backup with Admin Control Panel
