Default Help with aligning timing marks on Cams

How exactly do you align the timing marks on the camshaft and the caps? Should the marks be aligned at the same time the cam is bolted down? Or can you turn the camshaft after the cams are bolted down? Any info will help
__________________
inFAMOUS 2008 Silver *eBay* Turbo tC

I'm from NY where we keep Re-Inventing
johnhawkins is offline   Reply With Quote
Old 12-24-2010, 05:52 PM   #2
Senior Member
5 Year Member
SL Member
iTrader: ( -1 )

borderguy881's Avatar

Join Date: Feb 2006
Location: Poolesville, MD
Send a message via AIM to borderguy881
Default

ive always aligned cams while they are still in.. just simply turn em till they are lined and then when crank in TDC u slip on belt/chain
borderguy881 is offline   Reply With Quote
Old 12-24-2010, 06:44 PM   #3
Moderator
Premium Member
5 Year Member
Trader
SL Member
Moderator
iTrader: ( 2 )

crush02342002's Avatar

Join Date: Feb 2008
Location: Houston, Tx
Default

its really not bad at all...done it a few times now.


Click the image to open in full size.
__________________
Quote:
Originally Posted by DezodDon View Post
I made a sprayer using the windshield washer bottle and pump, a pressure switch, vac hose, and 360 degree misters from a hydroponics store. Worked awesome.
Quote:
Originally Posted by gingles View Post
hydroponics store eh?
crush02342002 is offline   Reply With Quote
Old 12-24-2010, 06:58 PM   #4
Moderator
Premium Member
5 Year Member
Trader
SL Member
Moderator
iTrader: ( 2 )

crush02342002's Avatar

Join Date: Feb 2008
Location: Houston, Tx
Default

Click the image to open in full size.

youll notice there is 3 marks on the exhaust cam sprocket... one dot has ex by it (exhaust), one dot has IN (intake), then there is a hash mark between them. you want to align the hash mark with the arrow thats located on the first cap for that cam.

on the intake cam you will see a small dot on the face of the cam sprocket, look just above it and you will see a long hash mark. align that hash mark with the arrow on the first cap for that cam.

all this is assuming your crank is set to TDC.

align the gold links of chain (yellow) on these marks. If you dont have the crank set to TDC you can easily find TDC by doing the above and aligning the crank with the third yellow link. there will be a dot on the small sprockets on the crank. third yellow link goes there.

any other questions?
__________________
Quote:
Originally Posted by DezodDon View Post
I made a sprayer using the windshield washer bottle and pump, a pressure switch, vac hose, and 360 degree misters from a hydroponics store. Worked awesome.
Quote:
Originally Posted by gingles View Post
hydroponics store eh?
crush02342002 is offline   Reply With Quote
Old 12-26-2010, 02:04 AM   #5
Senior Member
SL Member
iTrader: ( 1 )

johnhawkins's Avatar

Join Date: Oct 2008
Location: Buffalo, NY
Default

Quote:
Originally Posted by crush02342002 View Post
Click the image to open in full size.

youll notice there is 3 marks on the exhaust cam sprocket... one dot has ex by it (exhaust), one dot has IN (intake), then there is a hash mark between them. you want to align the hash mark with the arrow thats located on the first cap for that cam.

on the intake cam you will see a small dot on the face of the cam sprocket, look just above it and you will see a long hash mark. align that hash mark with the arrow on the first cap for that cam.

all this is assuming your crank is set to TDC.

align the gold links of chain (yellow) on these marks. If you dont have the crank set to TDC you can easily find TDC by doing the above and aligning the crank with the third yellow link. there will be a dot on the small sprockets on the crank. third yellow link goes there.

any other questions?

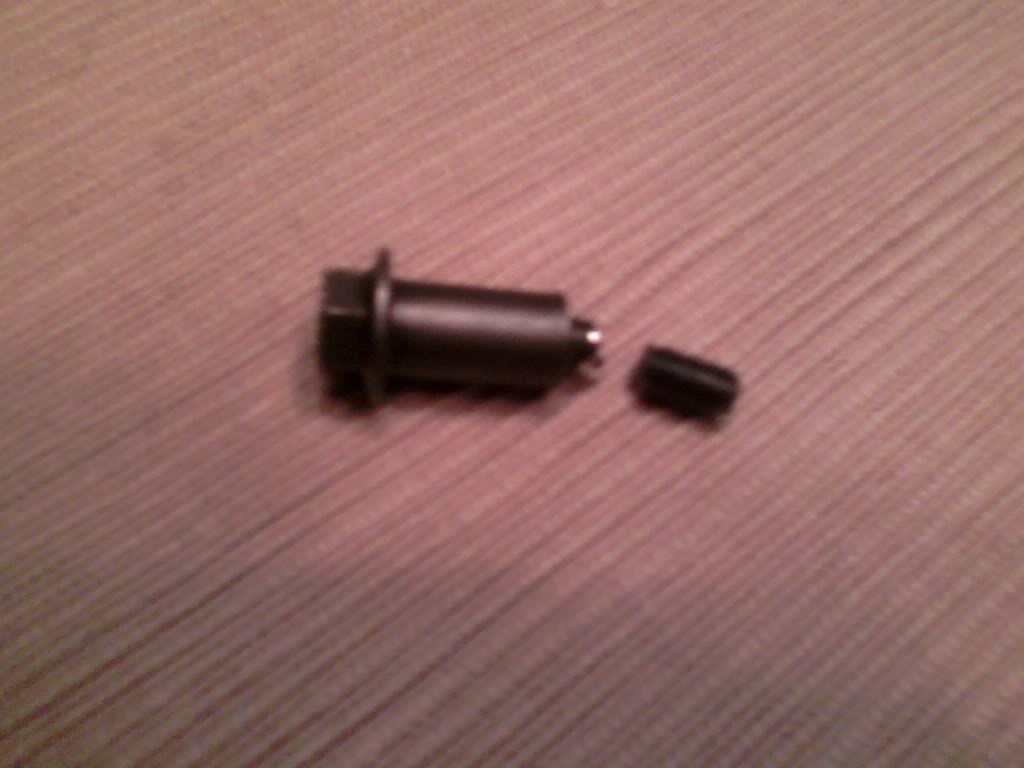

alot easier than I thought I did this today - Although the oil chain tensioner bolt broke before I could even put it in! Know anywhere I can get a replacement?

Click the image to open in full size.
__________________
inFAMOUS 2008 Silver *eBay* Turbo tC

I'm from NY where we keep Re-Inventing
johnhawkins is offline   Reply With Quote
Old 12-26-2010, 03:28 AM   #6
Moderator
Premium Member
5 Year Member
Trader
SL Member
Moderator
iTrader: ( 2 )

crush02342002's Avatar

Join Date: Feb 2008
Location: Houston, Tx
Default

i have a spare. if you need it fast though id just run out to the dealership
__________________
Quote:
Originally Posted by DezodDon View Post
I made a sprayer using the windshield washer bottle and pump, a pressure switch, vac hose, and 360 degree misters from a hydroponics store. Worked awesome.
Quote:
Originally Posted by gingles View Post
hydroponics store eh?
crush02342002 is offline   Reply With Quote
Old 12-26-2010, 04:30 AM   #7
Senior Member
SL Member
iTrader: ( 1 )

johnhawkins's Avatar

Join Date: Oct 2008
Location: Buffalo, NY
Default

money sent - thanks man
