Default a-mendoza build (Part 2) Finished and boosted @ 25psi

Some of ya may know me and alot of you probably not. Ive been out of the seen for awhile checking in every now and then but got really busy with life to worry about updating anything about my build. Well i decided to pick this back up after seeing all the good builds go down and parted out. I had seen so many good builds on here and now it seems like eveyone has dropped their builds to start fresh on a new project or have run into other problems. Anyways i decided it was time to bring life back to my 05 tC so hope ya enjoy the ride.

Build Summary:
Back in April 2010 I had decided to make the jump to build my motor and go the custom route to make more power than i was use to from the stock motor. After alot of time and money I finally fired it up for the first time with all the new mods in September. I got to enjoy the car alot over the time starting with a simple 10psi and working my way up to 15psi then 20psi. After about 10k miles of hard racing everything just decided to start going bad. I fixed a few issues to get me by so i could still drive the car but finally i said it was time to put my project away. In 0ctober 2011 I got me a new 2012 Scion tC RS7.0 cause i got tired of having problems with my '05 tC and just being to busy to worry about fixing it. After 6 months of having my '05 tC sit in my garage i finally said its time to make time to give this car a chance to make a comeback. The plan is to tear down the motor, fix whatever needs to be repaired, and get it all back together and shoot for 25psi. I miss the boost and i want to feel that power again. Ahhh here we go again

For those of ya intrested heres the link to my orignal build thread: http://www.scionlife.com/forums/showthread.php?t=185712

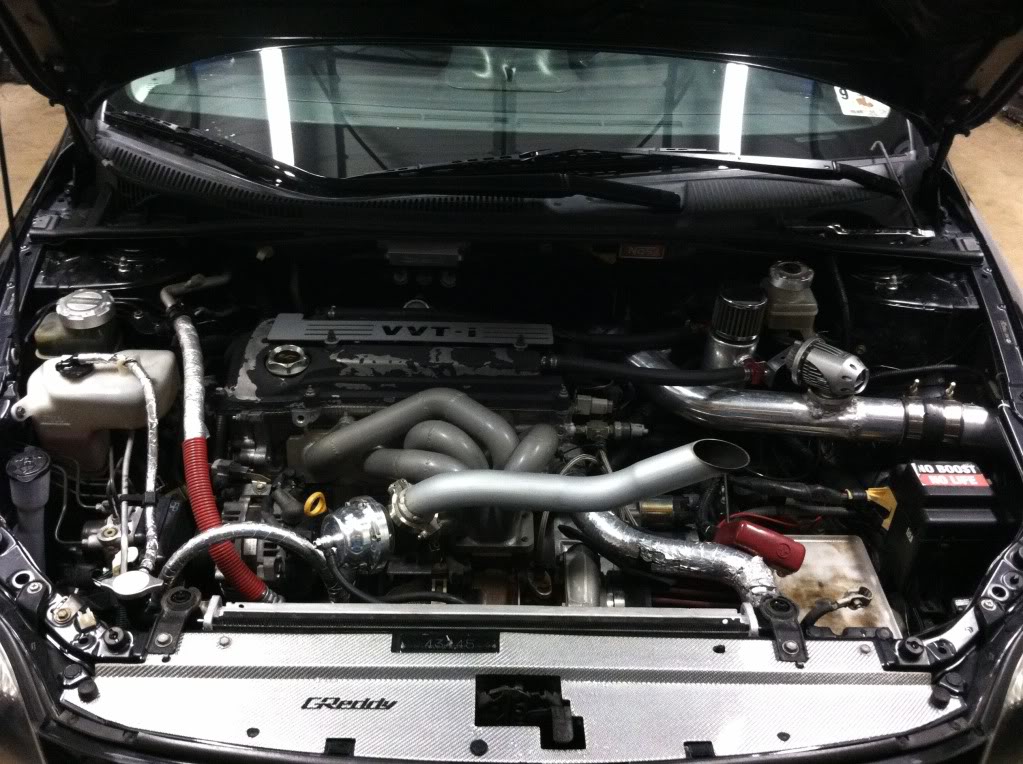

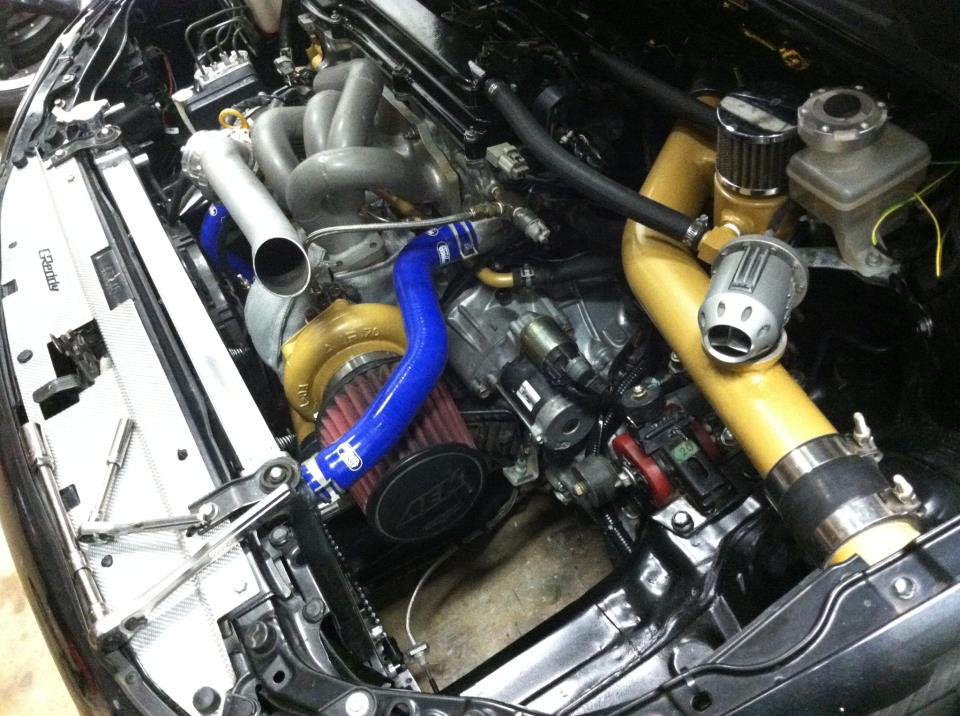

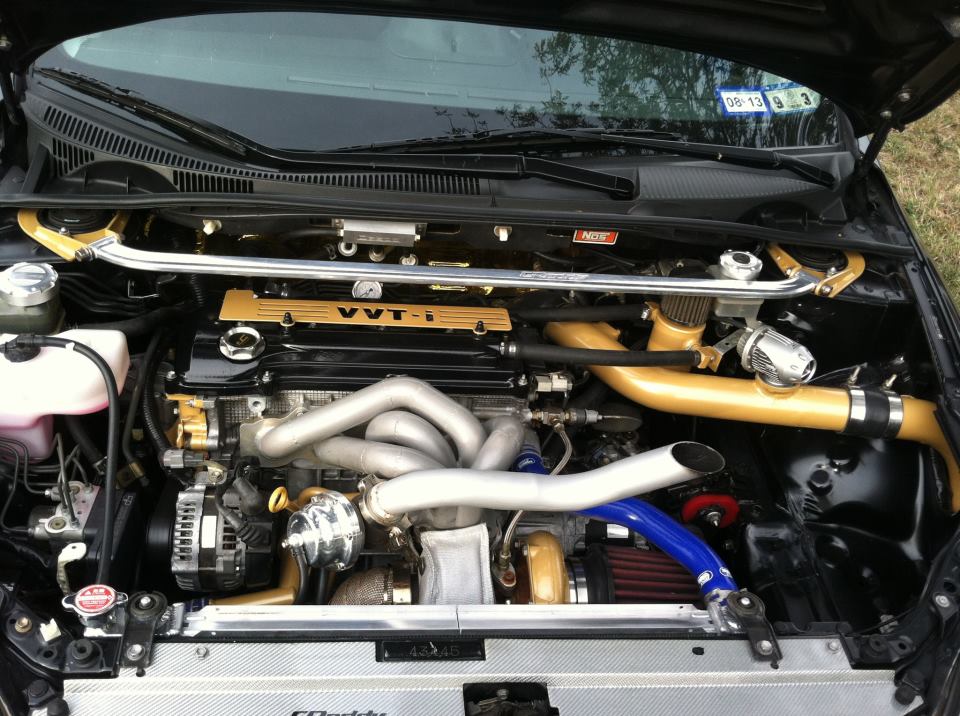

Some Pics before she got put away
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.
The car that took over as my daily driver
Click the image to open in full size.

Click the image to open in full size.
My new project that will be put to a hault to bring my 05 tC back
Click the image to open in full size.

'05 Scion tC mods list:
ENGINE:
-- Darton MID Sleeves
-- Wiseco 8.8:1 89mm Forged Pistons
-- K1 Technologies Connecting Rods
-- ACL Race Main Bearings
-- ACL Race Rod Bearings
-- ACL Race Thrust Bearing
-- ARP Main Studs
-- ARP Head Studs
-- Custom Balance Shaft Delete
-- Cometic 89mm Head Gasket
-- Dezod Exhaust Manifold Studs
-- OEM Head
-- TT V2 Manifold
-- Custom 3” Turbo-Back Exhaust
-- Custom 2" Dump Tube
-- Garrette 60-1 Turbocharger
-- Custom -4AN Oil Feed Line
-- Custom -10AN Oil Drain Line
-- Custom 2.5” Intercooler Piping
-- Treadstone TR8L (30"x7.8"x3.5") Intercooler
-- HKS BOV Version III SSQV BOV
-- AEM Dry flow filter
-- Tial 44mm Wastegate
-- Dezod 850cc Fuel Injectors
-- Ptuning Spec-SS Rertun-Style Fuel System
-- AEM Water/Meth Kit
-- OEM ‘07 Intake Manifold
-- NGK Iridium IX Spark Plugs
-- Dezod Vacuum Block
-- Custom Oil Catch-can
-- Spal 11” Slim Fans
-- Custom O2 Simulator
-- Royal Purple 10W-40 Engine Oil
TRANSMISSION:
-- ACT Heavy Duty 6 Puck Clutch Kit
-- Quaife Limited Slip Differential (LSD)
-- Dezod Stainless Steel Clutch Line
-- Split Motorsports Brass Shifter Cable Bushings
-- Summit Engineering Aluminum Shifter Cage Bushings
-- Eneos GL-5 75W-90 Gear Oil
ENGINE DRESS UP:
-- Custom VVT-I Spark Plug Cover
-- ScionTech Billet Brake Resivor Cap
-- ScionTech Billet Power Steering Resivor Cap
-- TRD Radiator Cap
-- AEM Battery Tie Down
-- Custom tC Billet Oil Cap
-- Custom Painted Valve Cover (Black)
-- Greddy Carbon Silver Air Diversion Panel
ELECTRONICS:
-- AEM EMS V2 Standalone w/ boost control solenoid
-- RaptorPerformance Shift Light
-- HKS Type-0 Turbo Timer
-- AEM UEGO Wideband Air/Fuel Ratio Gauge
-- Autometer Cobalt Mechanical Boost Gauge
-- Autometer Cobalt Mechanical Oil Pressure Gauge
-- Autometer Cobalt Electronic EGT Gauge
SUSPENSION:
-- Greddy Front Strut Tower Bar
-- Greddy Rear Strut Tower Bar
-- Tein S-Tech Lowering Springs
-- Energy Suspension Motor Mounts
WHEELS/ TIRES:
-DD Setup:
-- 18"x9.5" et35 Rota Grid Wheels
-- Nitto NT850 225/40/18 Tires
-- Rays Valve Stems
-AutoX Roadcourse Setup:
-- 17"x9" Rota Grid
-- NItto NT05 255/40/17 Tires
-Drag Setup:
-- 15"x7" Steel Wheels
-- 24.5x8.5x15 M&H Slicks
EXTERIOR:
-- OEM Factory Lip Kit
-- Custom GFX Lip Add-On
-- Custom Carbon Fiber OEM Style Front Bumper
-- VRD Foglamps
-- TRD "VVT-I" Grill Emblem
-- AIT BMagic R1 Series Carbon Fiber Hood
-- OEM Carbon Fiber B-Pillars With tC Laser Imprinted Logos
-- OEM Honda S2K Antenna
-- Kaminari Carbon Fiber Race Wing W/ Adjustable Blade
-- OEM 08' tC Taillights
-- Custom Carbon Fiber Rear Garnish Emblem Insert
INTERIOR:
-- OEM RS tC Illuminated Door Sills
-- ATI Triple Center Gauge Pod
-- DoctorIsotope Cubby Panel
-- Custom Carbon Fiber Dash Kit
-- Pilot Racing Switches
-- Custom Painted Interior Panels
-- Greddy/Trust Traditional Shift Knob
-- Custom Carbon Fiber Shift Boot
-- OEM tC Badge
-- Custom Carbon-Racy-Blue Wrapped Interior
LIGHTING:
-- HIDeXtra 6000K Xenon 9006 HID Headlight Conversion
-- HIDeXtra 6000K Xenon H3 HID Foglight Conversion
-- LEDGlow Underglow Kit (Blue)
-- LEDGlow Interior Kit (Blue)
-- LEDGlow Engine Bay lighting kit (Blue)
-- Garage1217 Blue Aluminum Ringed Parking Lights
-- Garage1217 Blue Aluminum Ringed Dome Lights
-- Garage1217 White Aluminum Ringed Map Lights
-- Garage1217 White Aluminum Ringed license Plate Lights
-- Garage1217 Reverse Lighting Odometer Film
-- Custom 2 Tone LED Gauge Cluster Swap
-- SuperBrightLED's 5mm White High Flux Turn Signal Indicators
__________________
tC1 Build Thread Pt.1: http://www.scionlife.com/forums/scio...-track-185712/
tC1 Build Thread Pt.2: http://www.scionlife.com/forums/scio...-25psi-214101/
tC1 Build Thread Pt.3: Soon to come
tC2 Build Thread: http://www.scionlife.com/forums/scio...thread-228044/

Last edited by a-mendoza; 05-16-2014 at 01:03 PM.
a-mendoza is offline   Reply With Quote
Old 04-29-2012, 05:53 AM   #2
Senior Member
5 Year Member
SL Member

a-mendoza's Avatar
a-mendoza 25/M


Join Date: Aug 2008
Location: Amarillo, TX 79109
iTrader: (2)
APR1
Default

Update 7/29/12

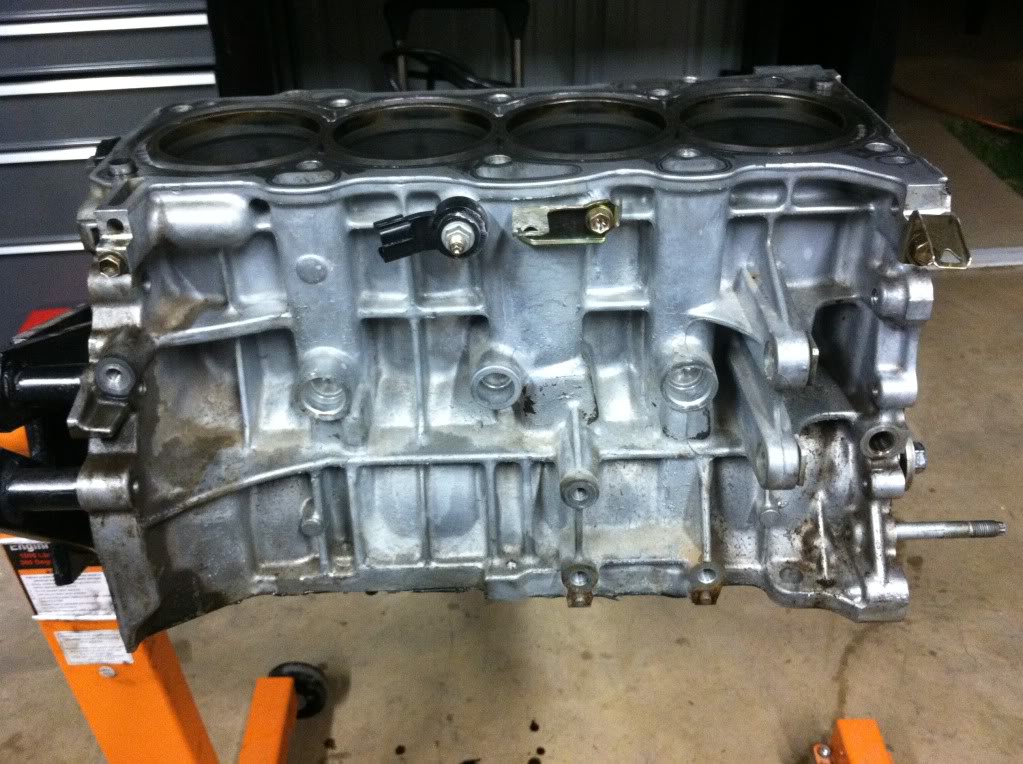

Alright guys so after 3 months i finally decided to give a little update on what ive been up to. Well first off i didnt go thru with what i originally said. When i sold my Civic i kinda used a bit of that money to do a little two tone on my Yellow tC and buy a carbon fiber hood for it. I didnt atually start the rebuild till about 3 weeks ago so heres what we got going on so far. Got the motor out and completley torn down to a bare block. Found some slight head warpage and it looks like some combustion gasses may have been seeping between cylinders 2 and 3 as the head looked a little hot between that area. Also judging from the valves it appears that i may have been running a little lean and never realized it. Just glad my motor never went boom at this point. Nothing wrong with the block but i did drop it off at the machine shop to have the block resurfaced and also had the head dropped off to have it rebuilt. Should have them back within the next couple days.

So heres whats new for the rebuild
-- Wrapping the firewall in DEI Reflect-A-Gold (Mainly for looks)
-- Powdercoating Engine Parts (Timing Cover, Valve Cover, thermostat housing, etc)
-- Wire tuck with moddified harnesses and relocated fuse block and battery
-- Shaved and filled engine bay

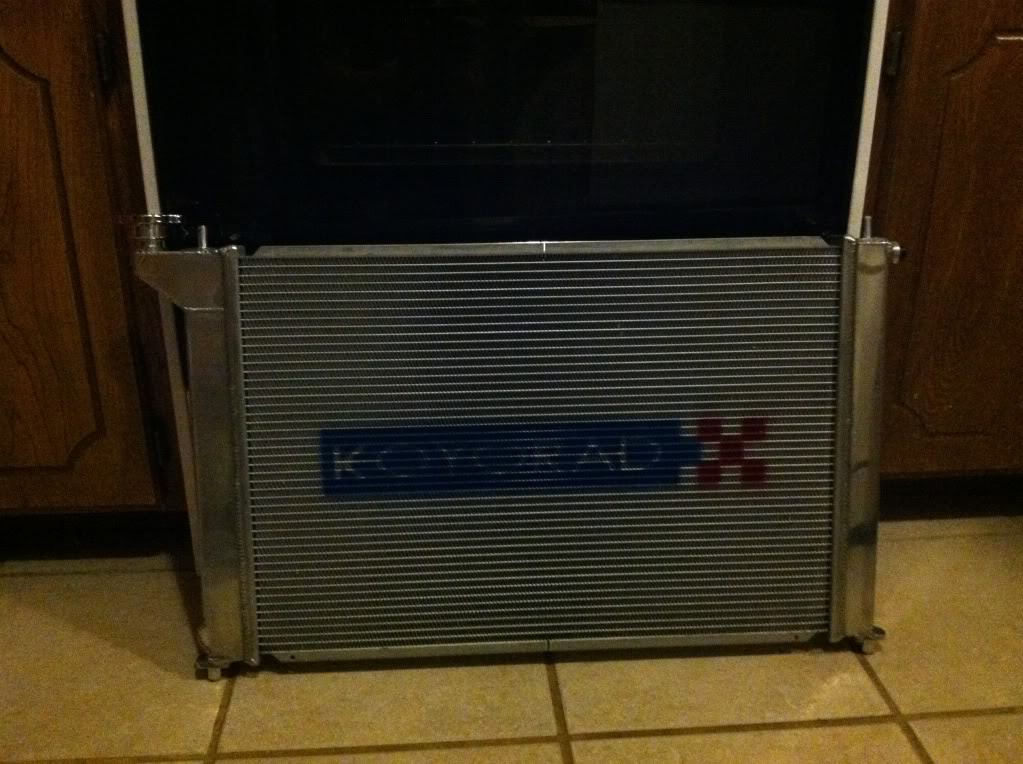

-- KoyoRad 36mm Aluminum Radiator
-- Koyo 1.3bar Radiator Cap
-- Mishimoto 61*C Thermostat
-- Samco Radiator Hoses

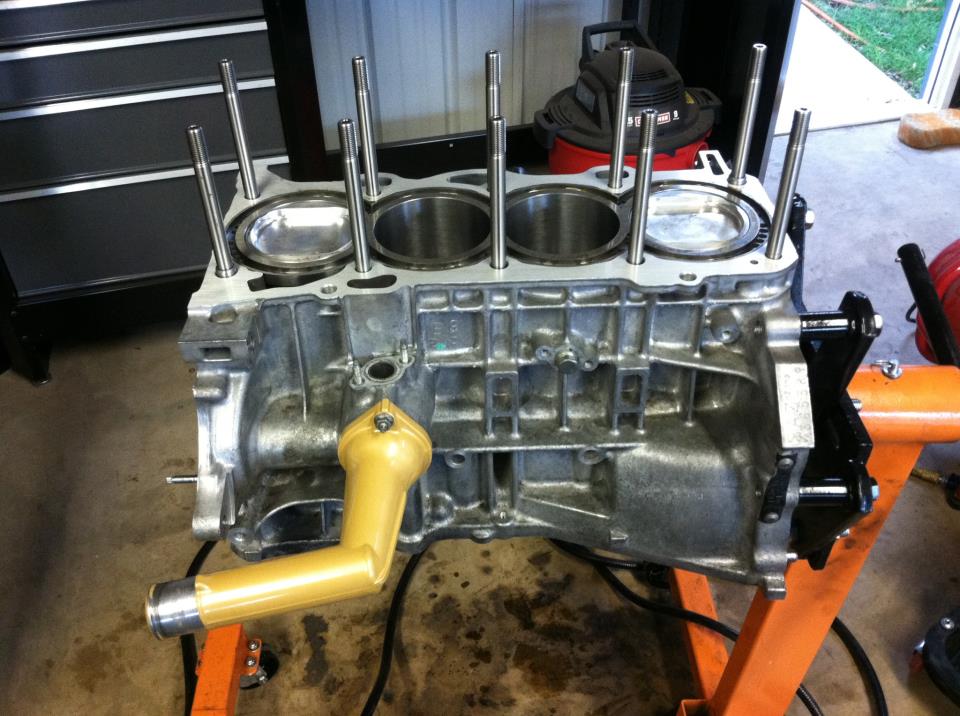

-- ARP2000 Head studs (stronger than the last set of ARP studs i used)
-- New 89mm Cometic Head Gasket and all new gaskets

Oh yea did i mention i have a deadline of September 15 to get this done. Trying to have this car ready for HIN Dallas, TX On the 22nd so if anyone is planning on being there you can see the finished product in person there.

Pics:

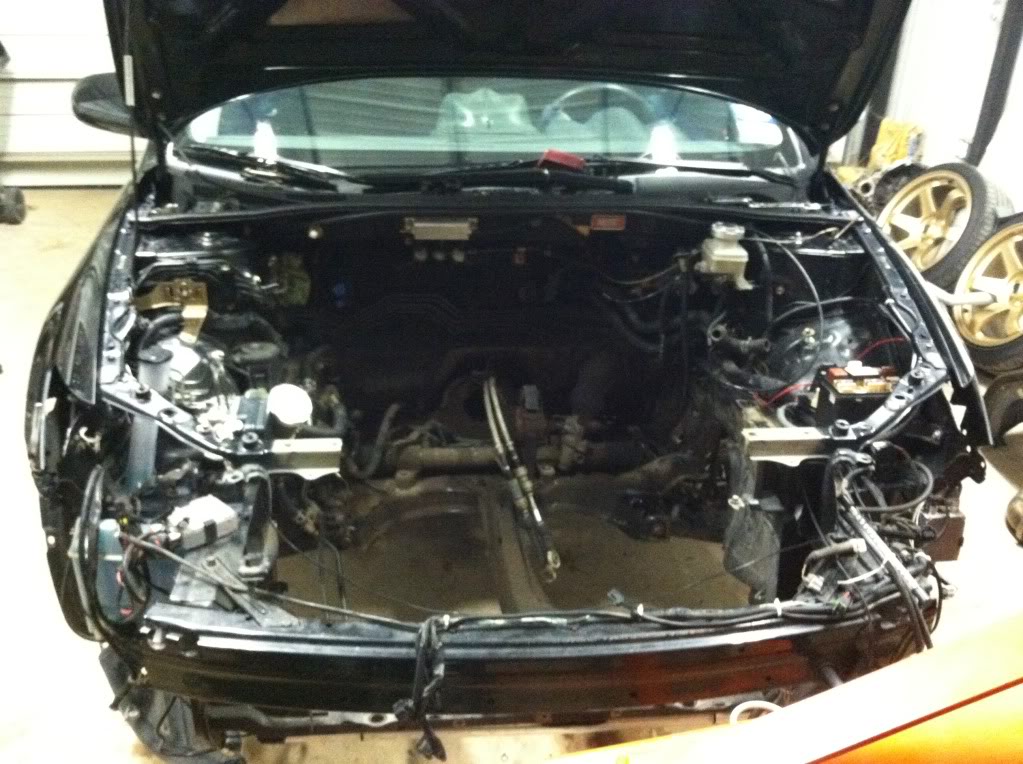

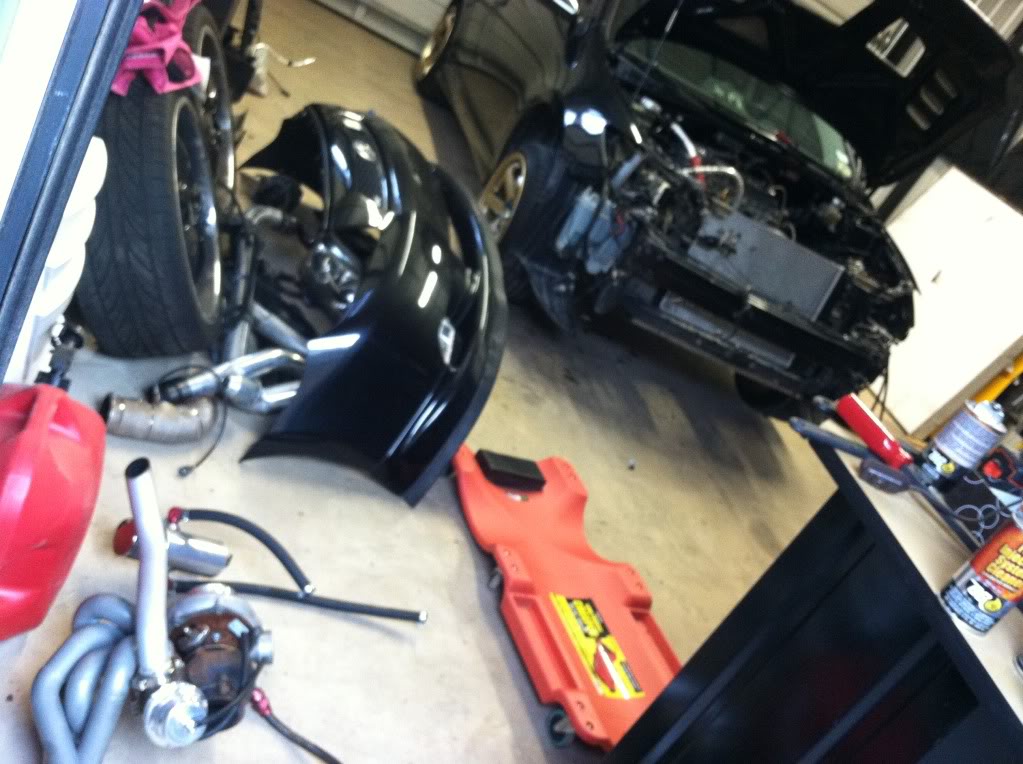

Finally rolled up into the shop for the rebuild
Click the image to open in full size.
Getting ready to tear into this
Click the image to open in full size.

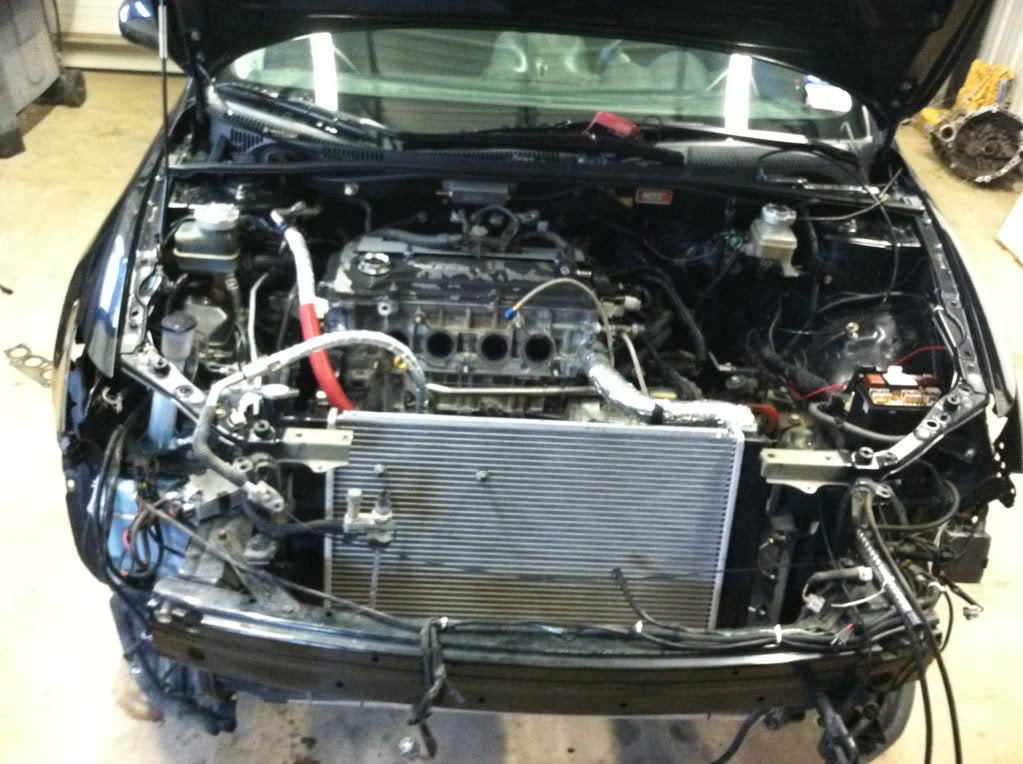

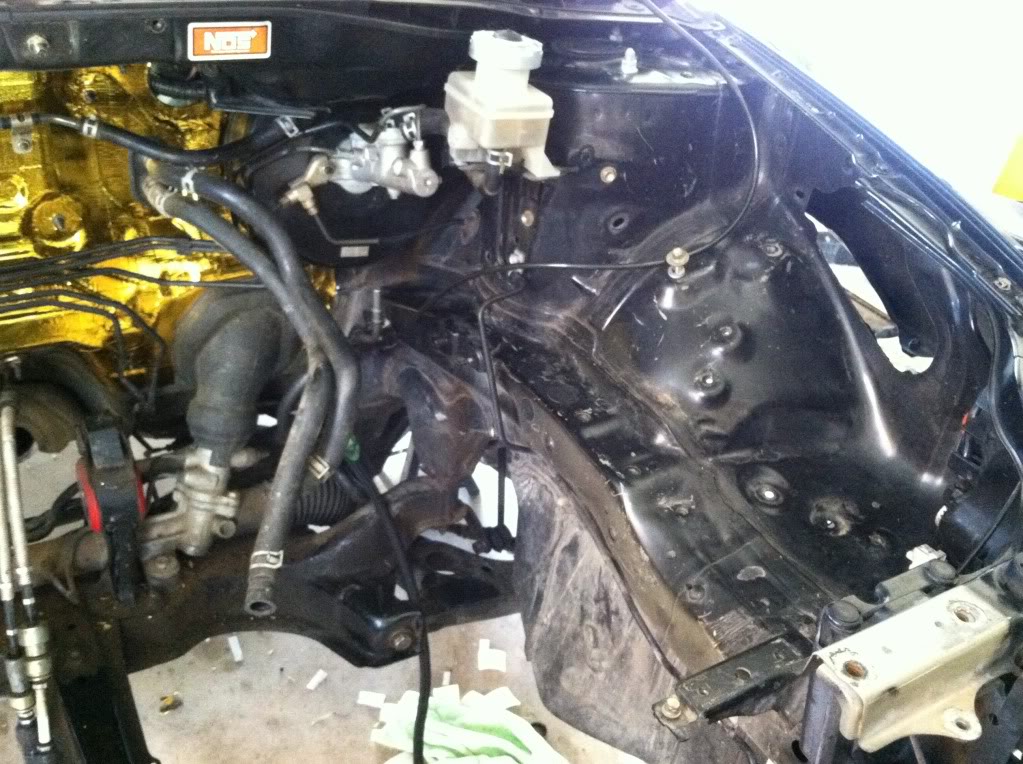

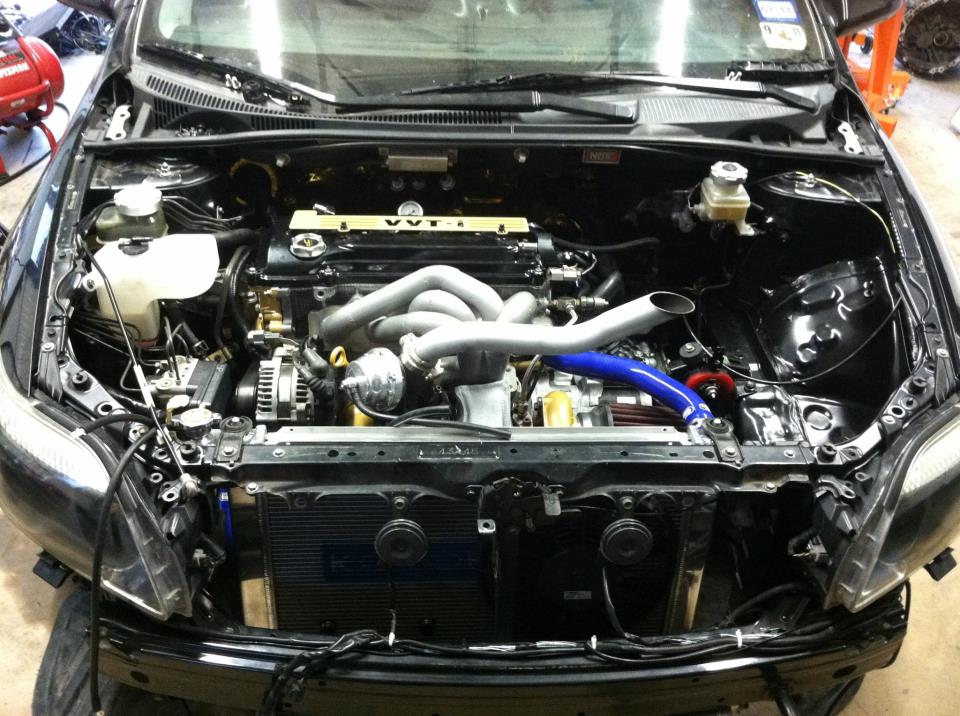

Last photo of engine bay before tear down
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

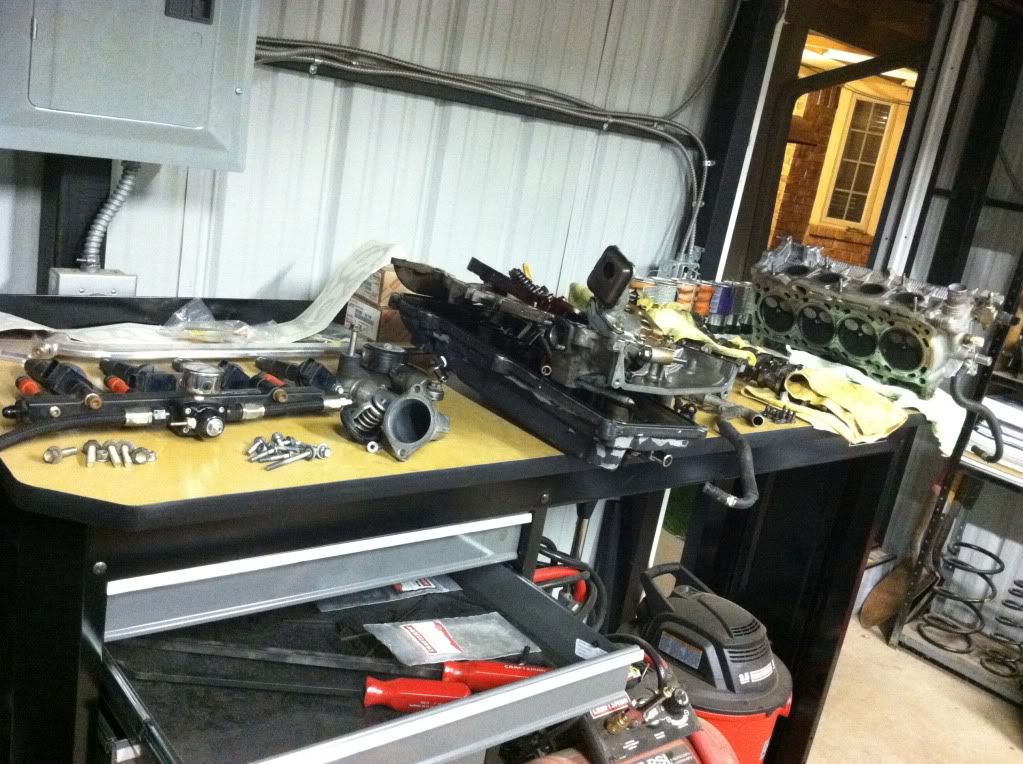

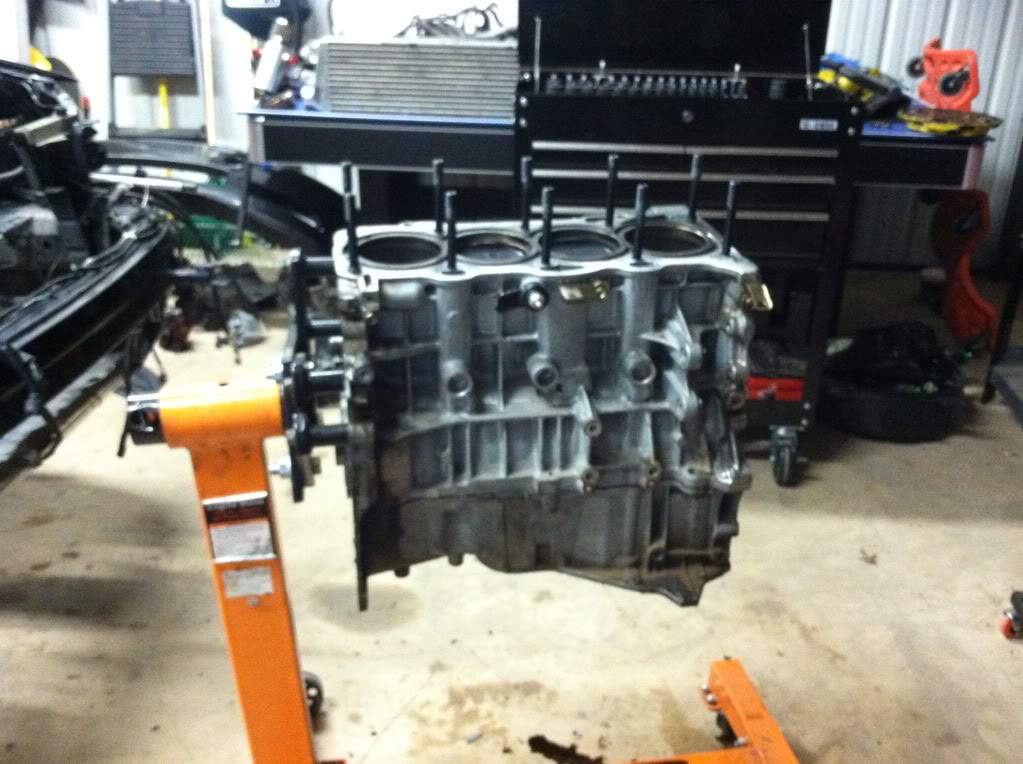

The new parts rolling in
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

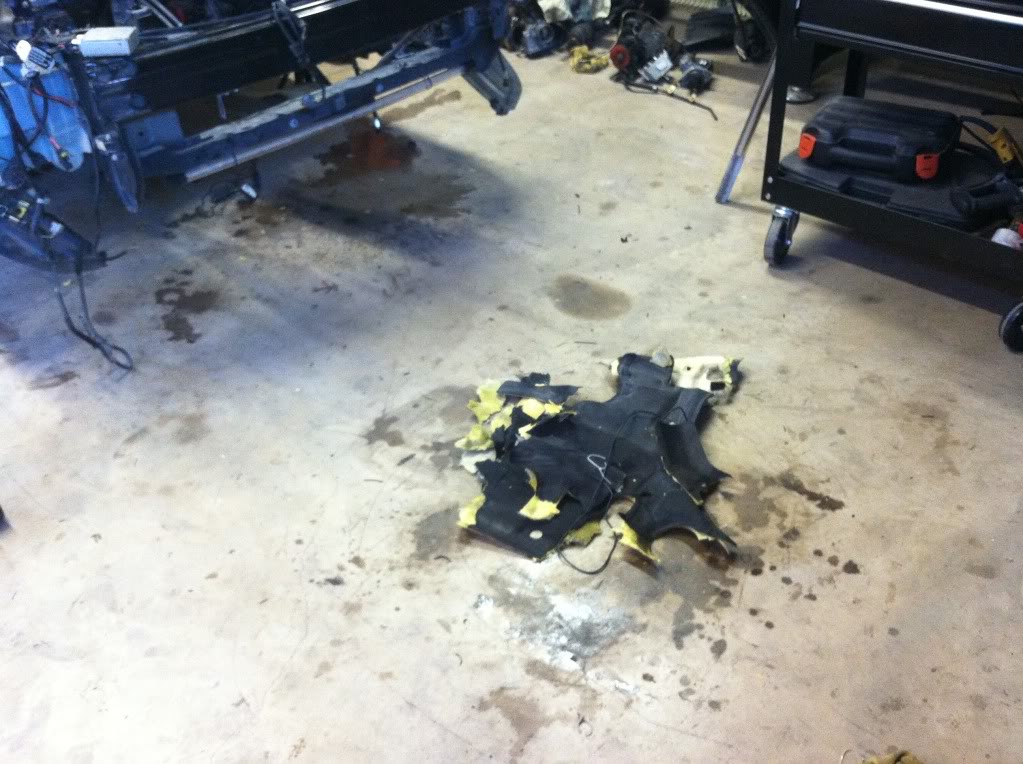

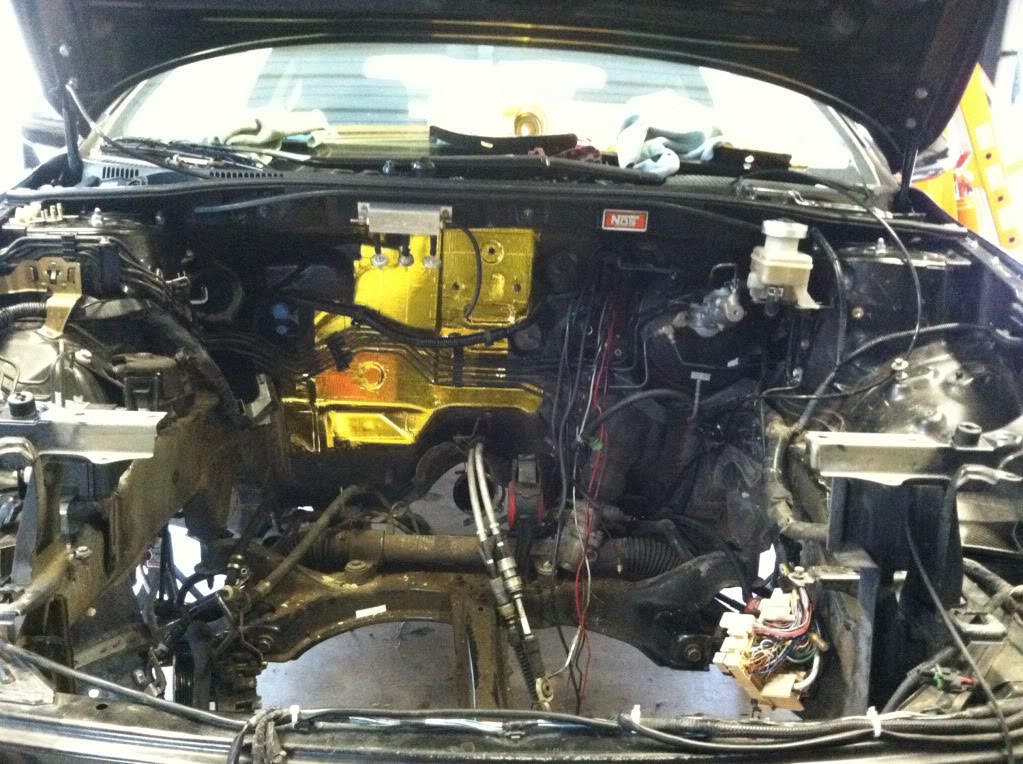

Tore out the old matterial off the firewall
Click the image to open in full size.

Click the image to open in full size.

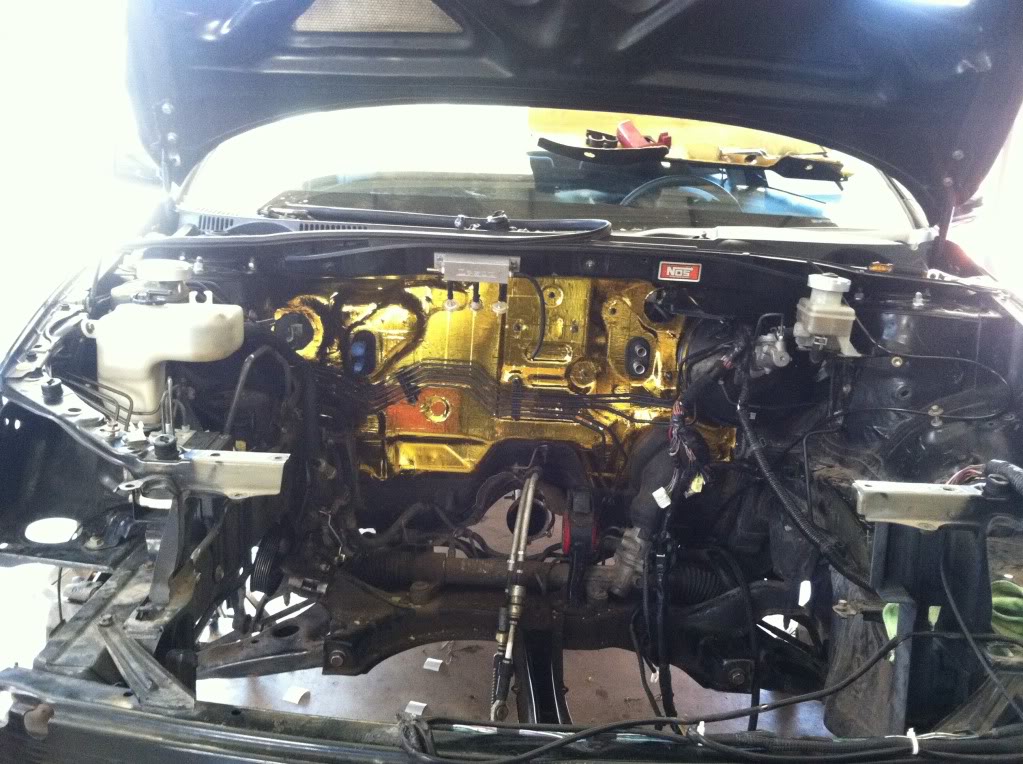

Getting my firewall wrapped up
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

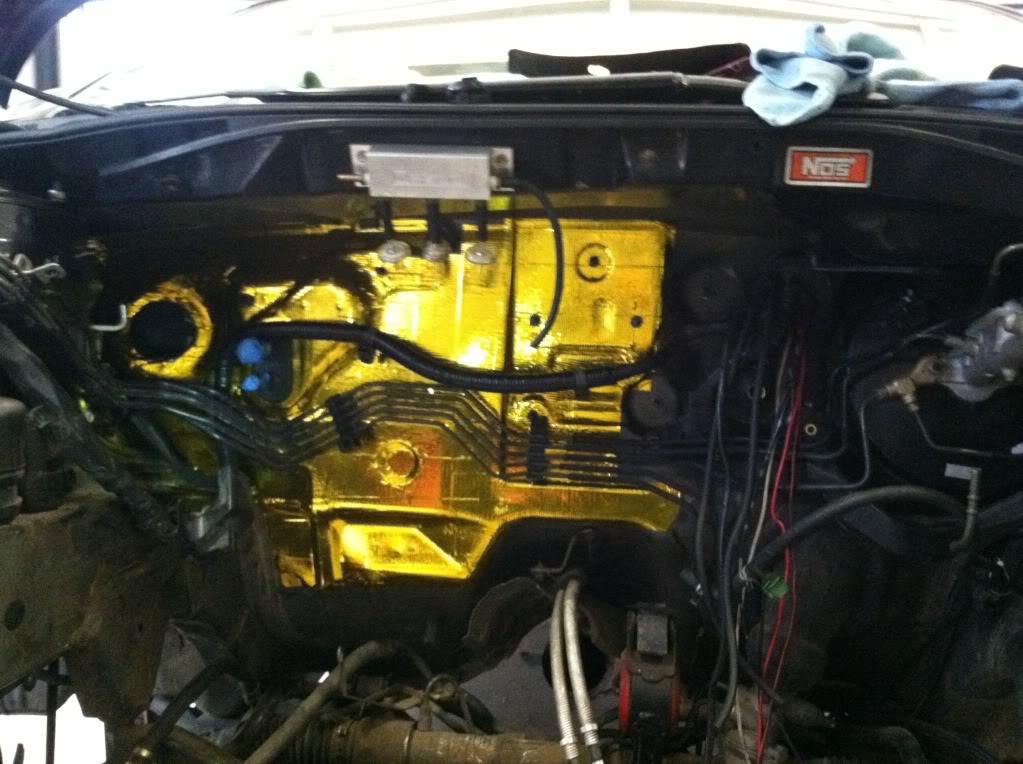

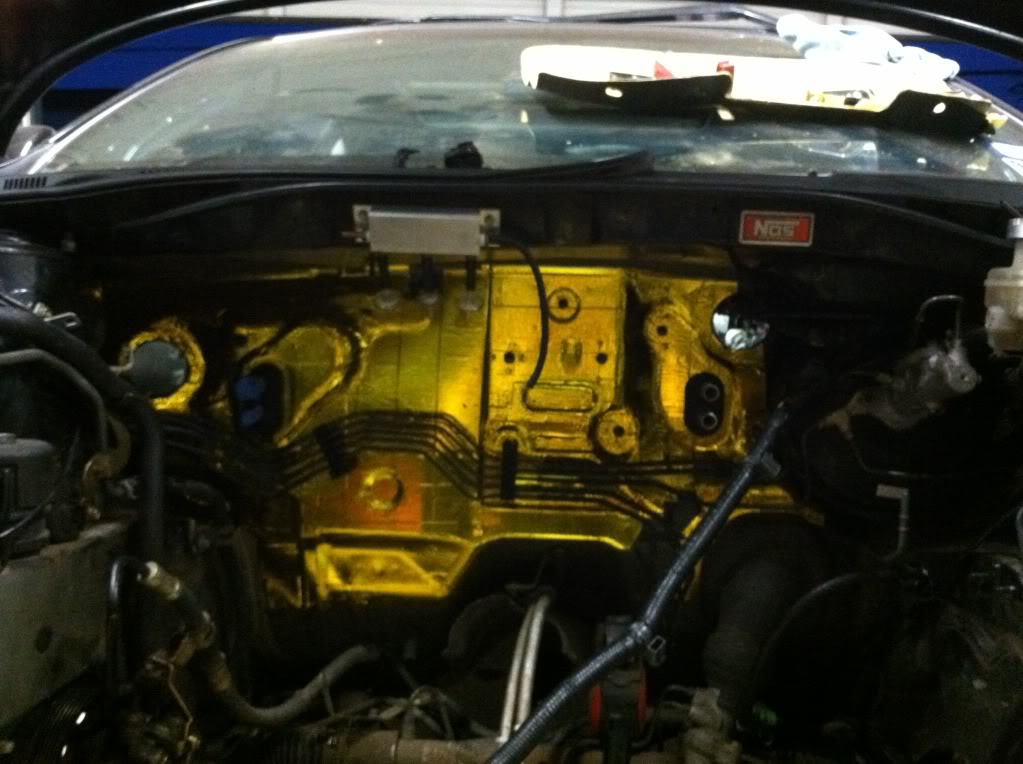

The finished firewall project
Click the image to open in full size.
All the wires here hiddin for wire tuck
Click the image to open in full size.

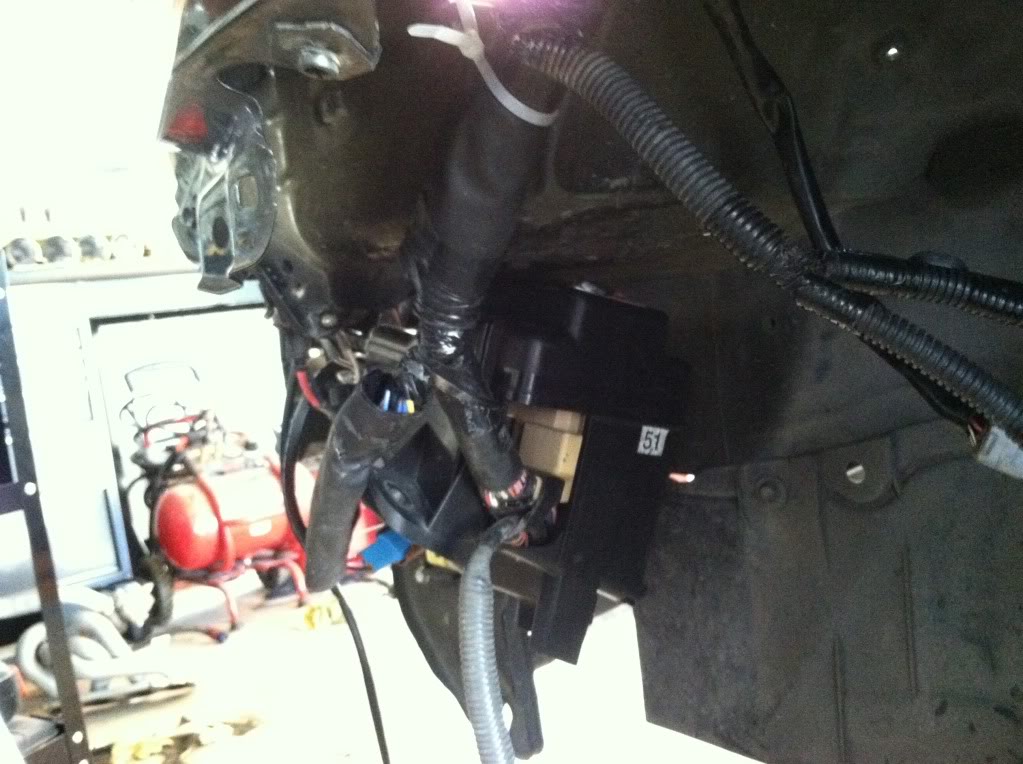

Mock up of where the fuse block is gonna be at
Click the image to open in full size.

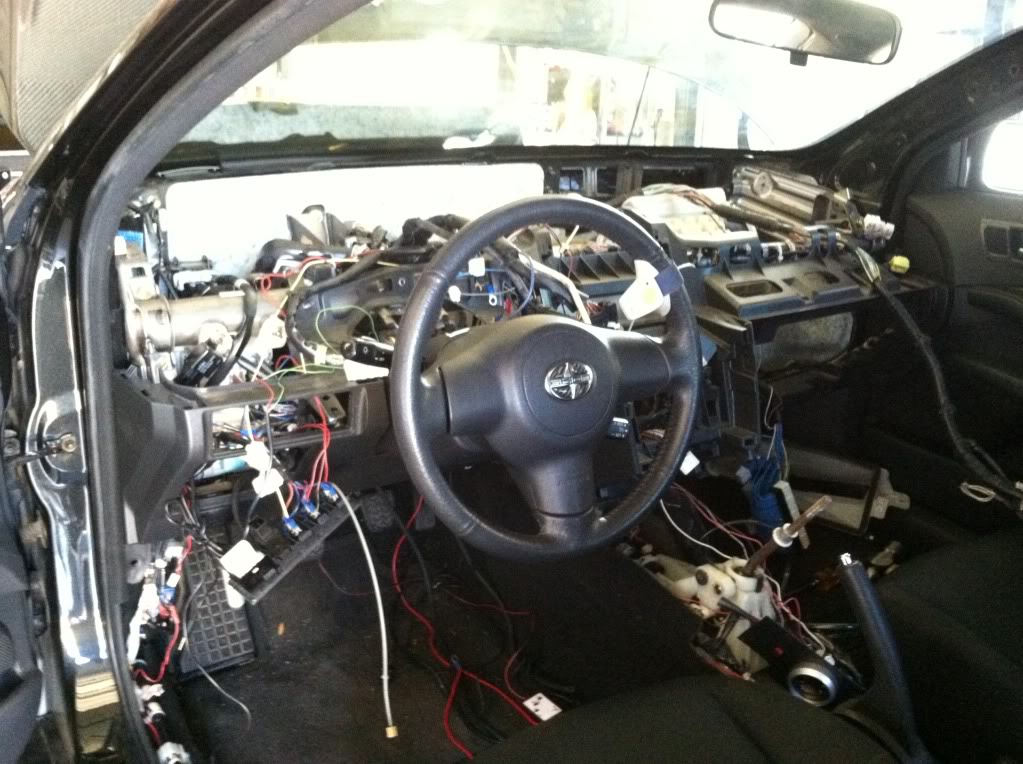

Got the dash torn out to route the wires across the firewall here
Click the image to open in full size.

Update 8/12/12

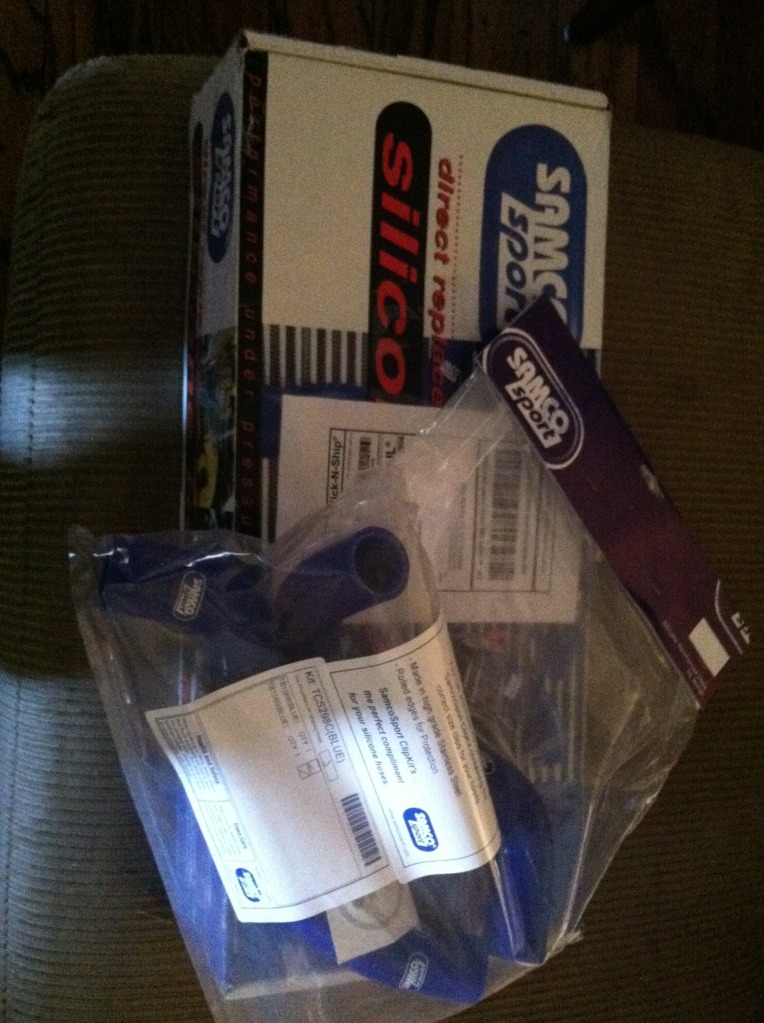

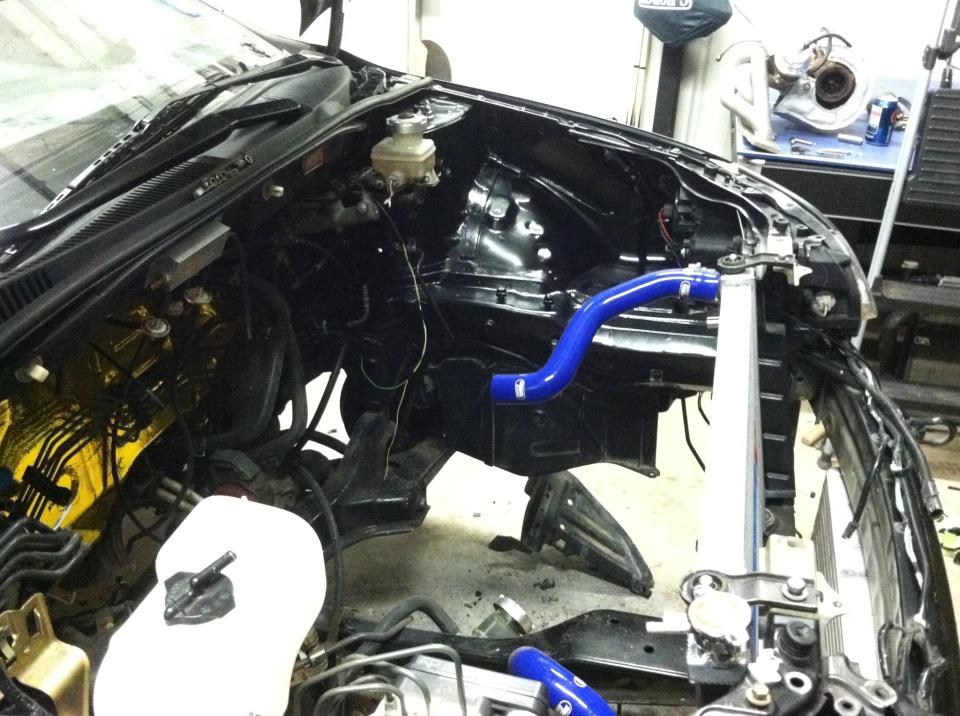

New Samco Radiator hoses finally arrived
Click the image to open in full size.

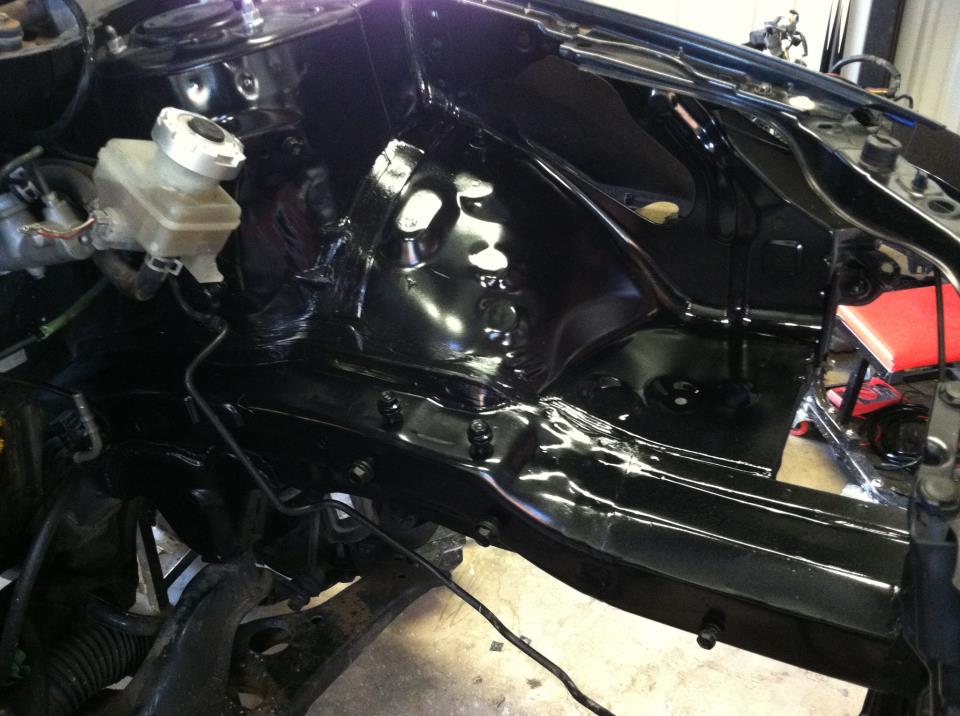

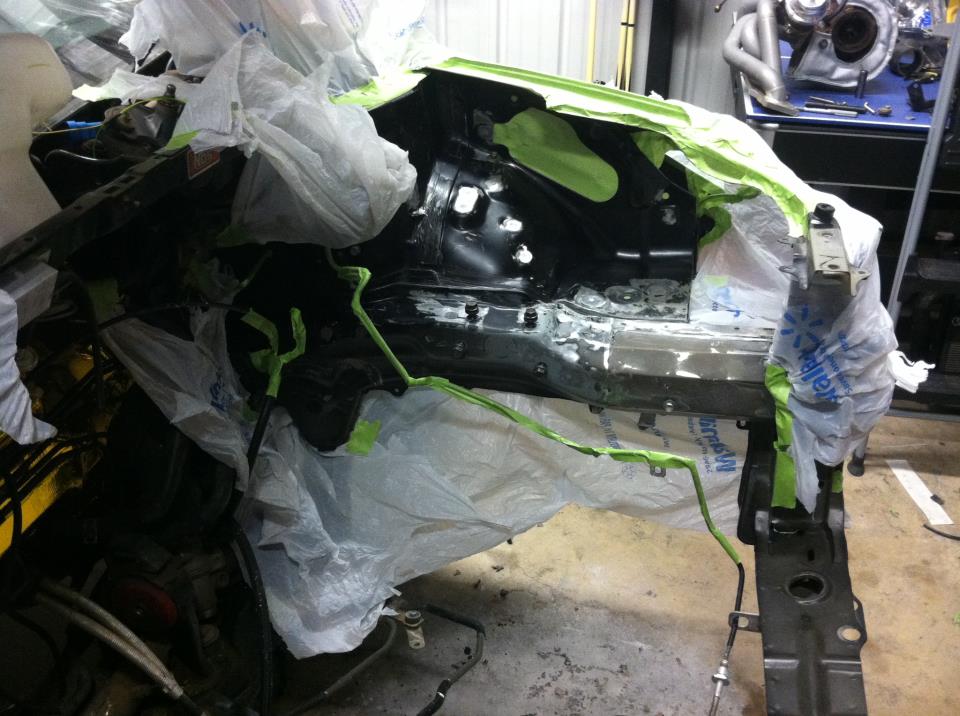

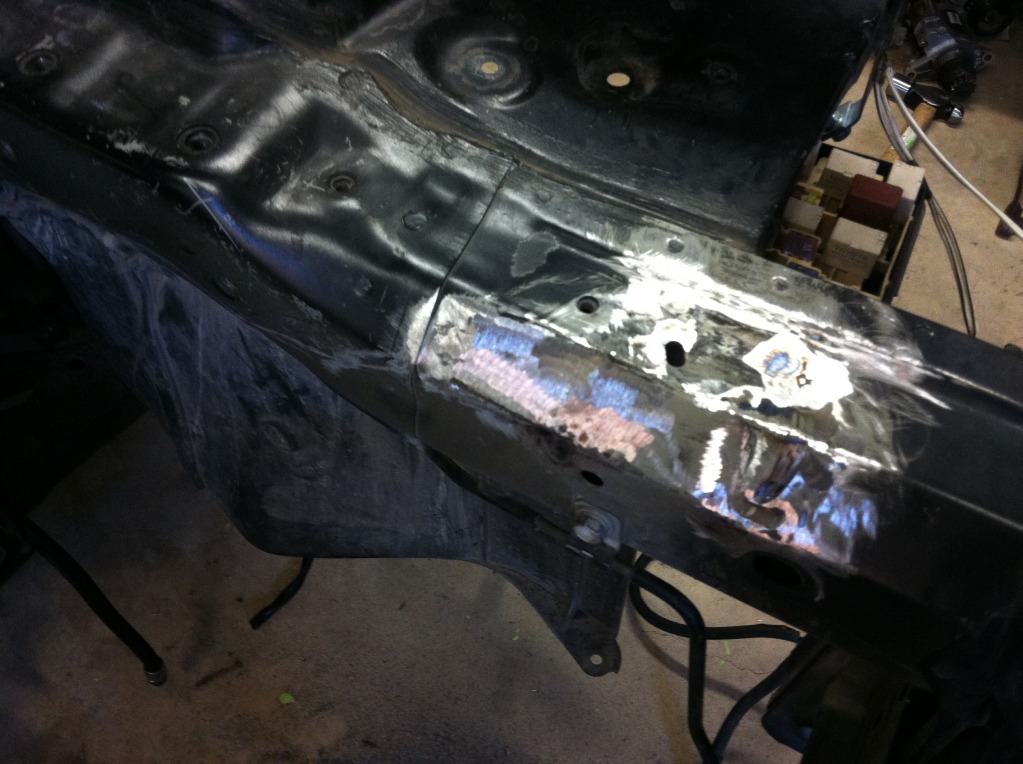

Shaved down the battery tray bracket. Next step is fill and paint
Click the image to open in full size.

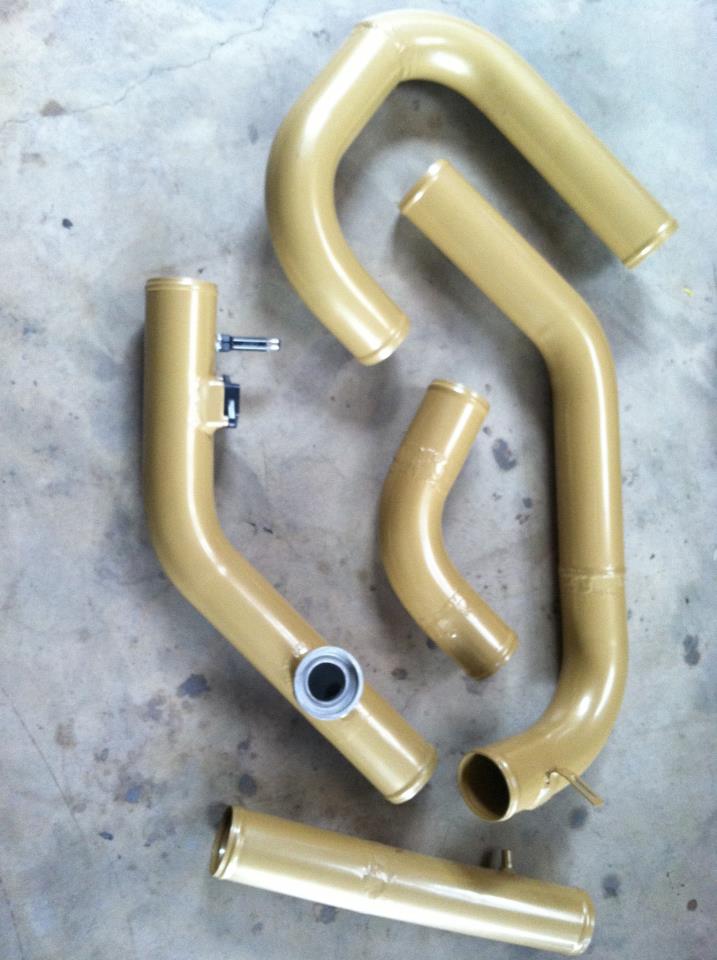

Engine parts back from powder coating
Click the image to open in full size.

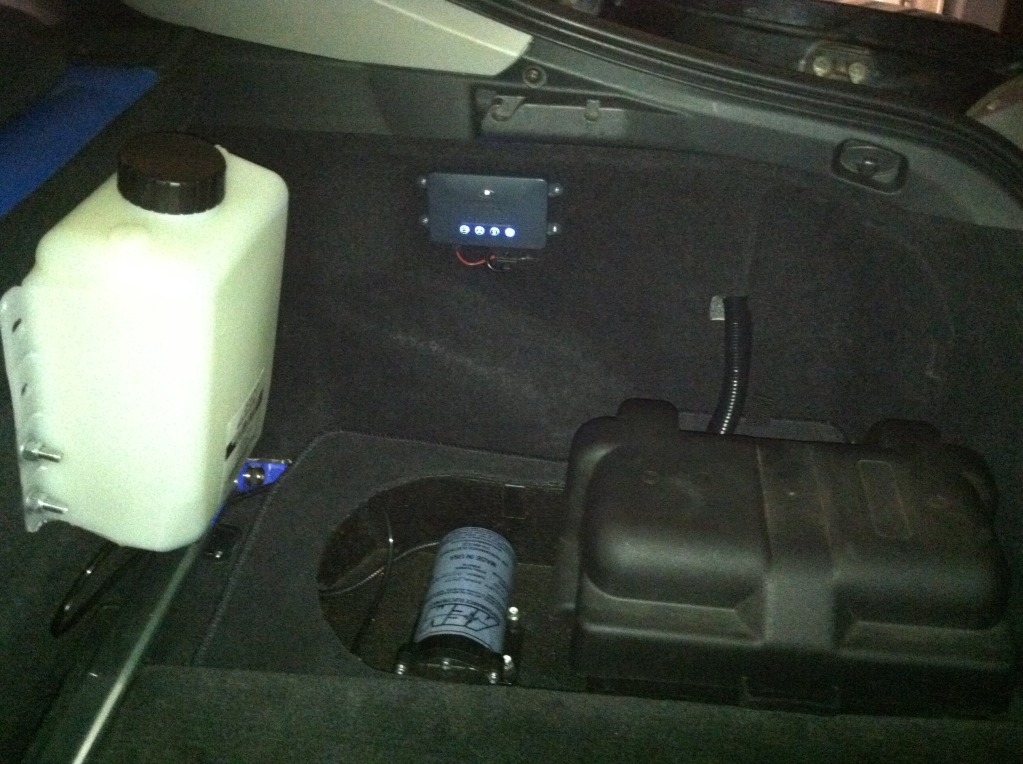

Battery relocation complete
Click the image to open in full size.

Click the image to open in full size.

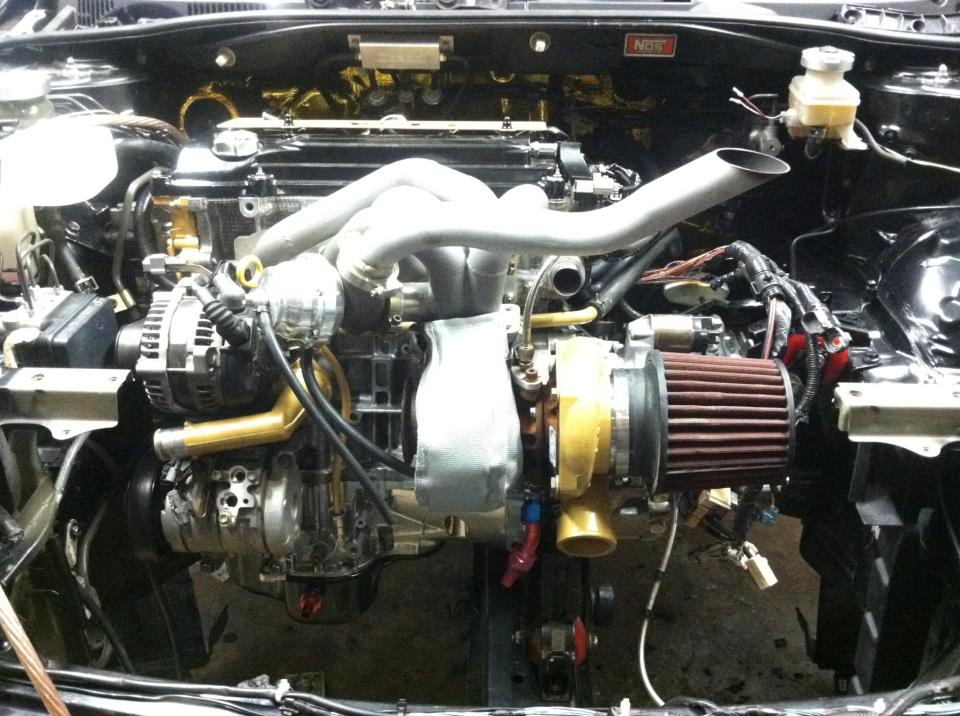

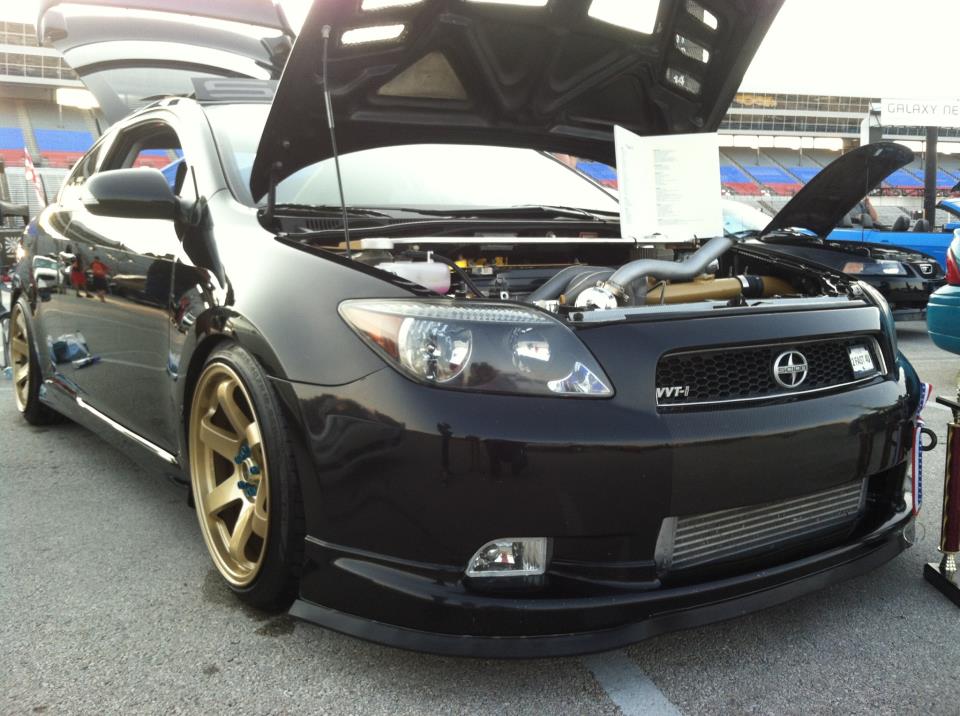

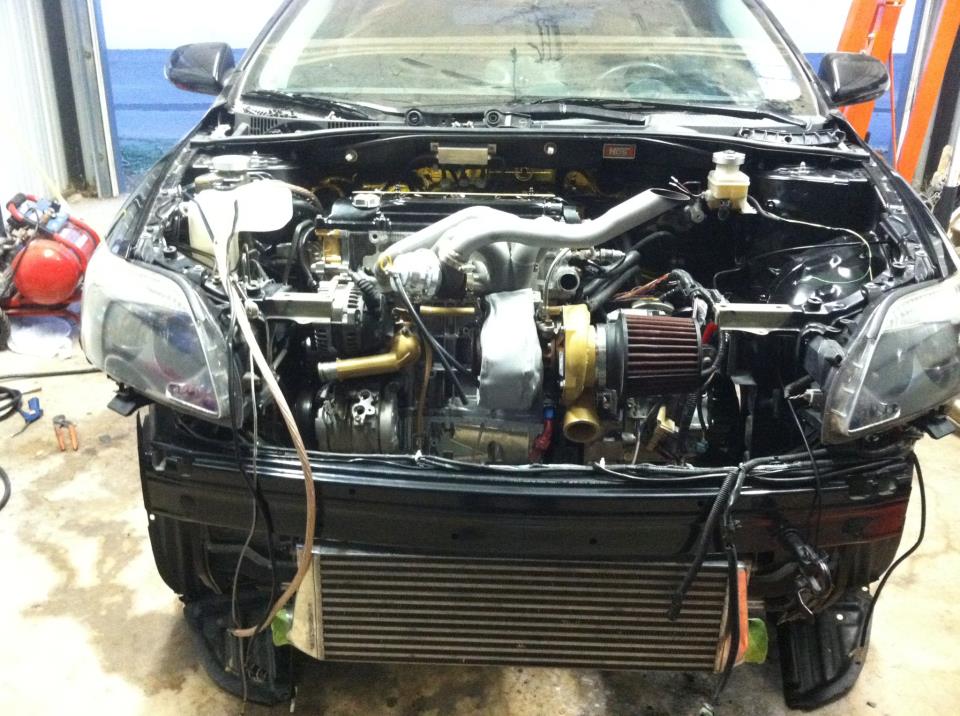

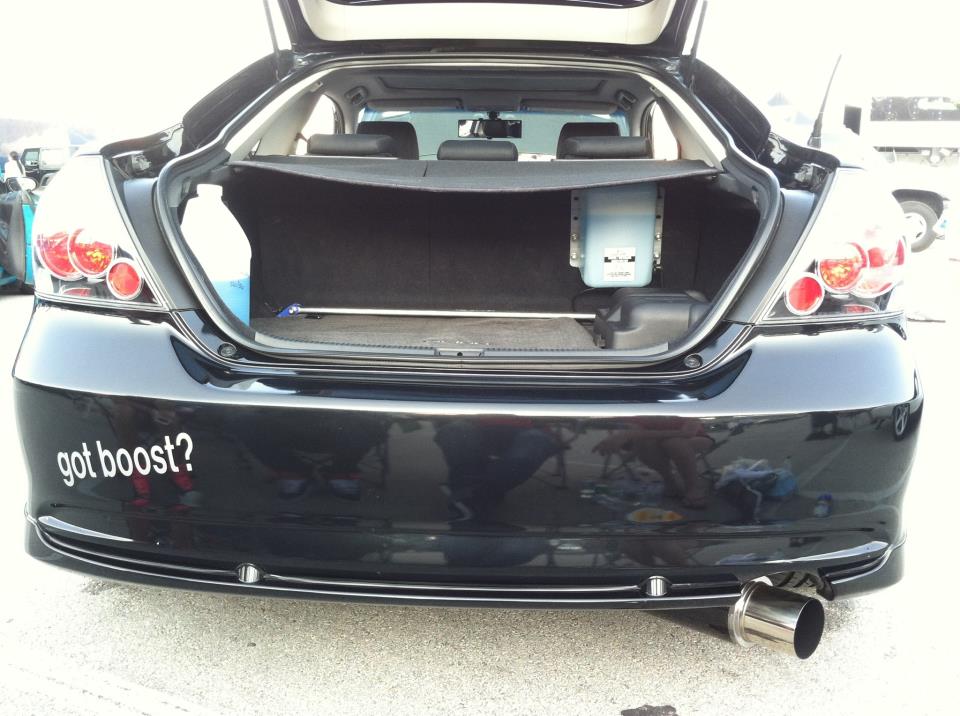

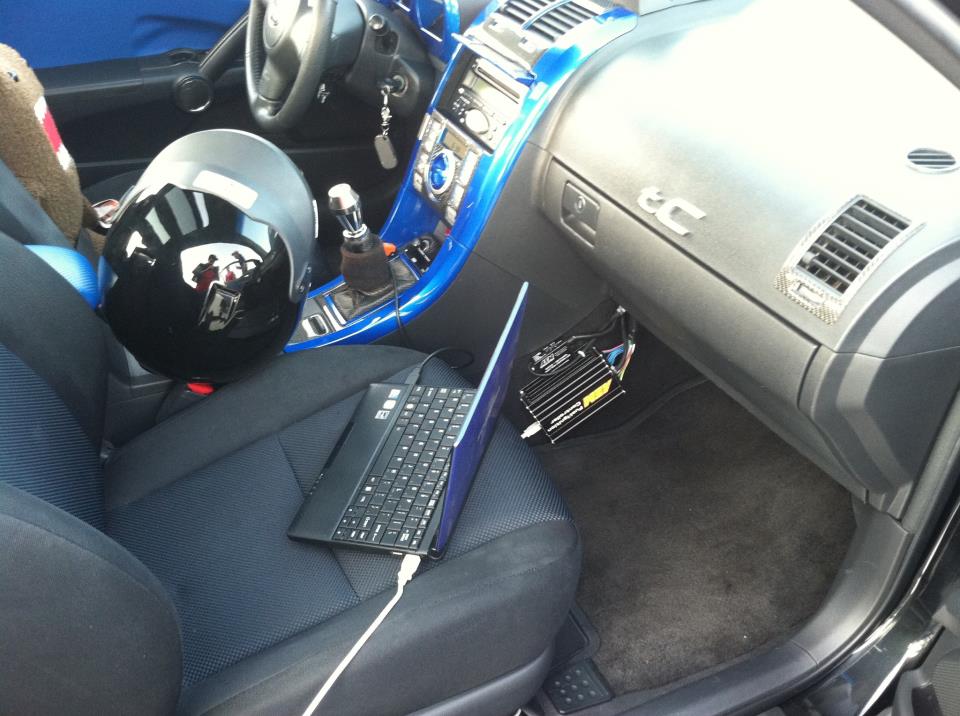

Newest Photos
