Default Front Door Lock Acuator Replacement: FAIL

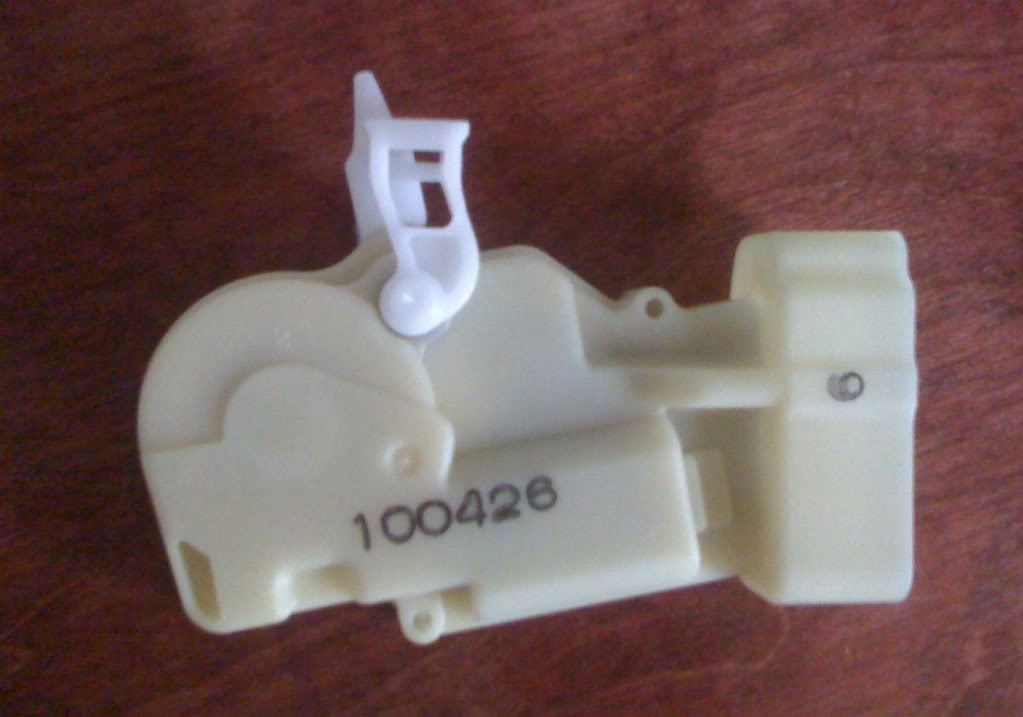

Definitely not happy. Got the part or at least ordered part number 69120-52030 and this is what came.

Click the image to open in full size.

Not having any idea what it is supposed to look like, got to it today and took off the door panel

Click the image to open in full size.

Couldn't find anything that remotely resembled this part in the door.

Click the image to open in full size.
Click the image to open in full size.

Put it all back together and for some odd reason the panel is not lining up properly, no matter what I did.

Any help would be appreciated and it looks like I have the wrong part, either I ordered the wrong part or the part sent was wrong.

Thanks all.
__________________
-------
NYCxB
2005 Scion xB/ Black
2010 HUMMER H3 Alpha /Black
NYCxB is offline   Reply With Quote
Old 02-21-2011, 12:37 AM   #2
Senior Member
5 Year Member
SL Member

frogbox's Avatar
frogbox 58/M

Join Date: Jul 2005
Location: NOT HERE
iTrader: (0)
Default

Quote:
Originally Posted by NYCxB View Post
Definitely not happy. Got the part or at least ordered part number 69120-52030 and this is what came.

Click the image to open in full size.

Not having any idea what it is supposed to look like, got to it today and took off the door panel

Click the image to open in full size.

Couldn't find anything that remotely resembled this part in the door.

Click the image to open in full size.
Click the image to open in full size.

Put it all back together and for some odd reason the panel is not lining up properly, no matter what I did.

Any help would be appreciated and it looks like I have the wrong part, either I ordered the wrong part or the part sent was wrong.

Thanks all.

OK here goes, that bluish plastic , take it off.
follow the wire harness on the lower left that goes toward the door latch.
Find it? 2 small phillips head screws , if you look at the part you have ( yes it is the right one) you'll see two holes that is where the screws are.
Reach in side ( the screws will be point toward you, head facing away from you.

The part that goes bad is connected to the inside of the door. Your not that far off.
When replacing the inner door panel hook it onto the top of the door first , push toward hinge side , then align the clips and press them in.

Get back to me as soon as you are there.
__________________
I'll Try To Be Nicer, If You'll Try To Be Smarter.
I Refuse To Have A Battle Of Wits With Un-Armed People !
Sometimes it is better to say nothing and be thought a fool than to open your mouth and remove all doubt.
Hotbox05 wrote " You are not a nice man, and a Troll"
typhoonorchid wrote"What a completely rude a**hole. Learn some online manners"...hmmm some peoples kids
frogbox is offline   Reply With Quote
Old 02-21-2011, 12:52 AM   #3
Senior Member
5 Year Member
SL Member

NYCxB's Avatar
NYCxB 114/M

Join Date: Jan 2005
Location: New York City & Los Angeles
iTrader: (0)
Default

Thanks for the response. I've kind of given up and am going to get it into Scion this week.

I know it is stated there are 2 screws to get the door panel off, but there is a 3rd screw by the upper hinge that breaks when you pull off the door panel. It was not salvageable.

Furthermore, the door panel will not pop back on flush at all. Some of the plastic screws refuse to pop back in.

It is too dark to try it again today, but if I did, do I discard the blue plastic or do I need to glue it back on?
__________________
-------
NYCxB
2005 Scion xB/ Black
2010 HUMMER H3 Alpha /Black
NYCxB is offline   Reply With Quote
Old 02-21-2011, 12:56 AM   #4
Senior Member
5 Year Member
SL Member

frogbox's Avatar
frogbox 58/M

Join Date: Jul 2005
Location: NOT HERE
iTrader: (0)
Default

Yes , Glue it back on. It is a vapor barrier and keeps rain water out of your door switch.

And it's really not hard, your almost there and it needs to be done by feel anyway.

And that upper "screw" that is plastic can be replaced by one you can get at an auto store. Broke mine , its just an expanding type push plug

And your wire harness is probably just keeping it from sitting flush , try moving it around a little
__________________
I'll Try To Be Nicer, If You'll Try To Be Smarter.
I Refuse To Have A Battle Of Wits With Un-Armed People !
Sometimes it is better to say nothing and be thought a fool than to open your mouth and remove all doubt.
Hotbox05 wrote " You are not a nice man, and a Troll"
typhoonorchid wrote"What a completely rude a**hole. Learn some online manners"...hmmm some peoples kids
frogbox is offline   Reply With Quote
Old 02-21-2011, 01:08 AM   #5
Senior Member
5 Year Member
SL Member

NYCxB's Avatar
NYCxB 114/M

Join Date: Jan 2005
Location: New York City & Los Angeles
iTrader: (0)
Default

What kind of glue would I need to get for the blue plastic? Will try adjusting the wire harness tomorrow to see if I can get it flush.

Thanks for the advice.
__________________
-------
NYCxB
2005 Scion xB/ Black
2010 HUMMER H3 Alpha /Black
NYCxB is offline   Reply With Quote
Old 02-21-2011, 01:12 AM   #6
Senior Member
5 Year Member
SL Member

frogbox's Avatar
frogbox 58/M

Join Date: Jul 2005
Location: NOT HERE
iTrader: (0)
Default

Quote:
Originally Posted by NYCxB View Post
What kind of glue would I need to get for the blue plastic? Will try adjusting the wire harness tomorrow to see if I can get it flush.

Thanks for the advice.
I used the RTV , gasket glue , or maybe it was for an aquarium, rubber cement would work. Or you can just use tape to hold it on while you put the panel back up.
__________________
I'll Try To Be Nicer, If You'll Try To Be Smarter.
I Refuse To Have A Battle Of Wits With Un-Armed People !
Sometimes it is better to say nothing and be thought a fool than to open your mouth and remove all doubt.
Hotbox05 wrote " You are not a nice man, and a Troll"
typhoonorchid wrote"What a completely rude a**hole. Learn some online manners"...hmmm some peoples kids
frogbox is offline   Reply With Quote
Old 02-21-2011, 06:30 PM   #7
Senior Member
5 Year Member
SL Member

tanakasan's Avatar
tanakasan 59/M

Join Date: Nov 2005
Location: SoCal
iTrader: (0)
Default

Quote:
Originally Posted by NYCxB View Post
but there is a 3rd screw by the upper hinge that breaks when you pull off the door panel.
The "expanding fastener of doom" as Chris/Mandos calls it!

Take a phillips screwdriver and give it a 1/4 turn CCW. Grab it with your fingers and it pops out...for next time.

G/L with your repair...you are almost there! Don't give up or give the dealer your hard earned cash!

Robert
__________________
'06 Scion PW xB
Pioneer P880PRS-->AudioControl Matrix
Elemental Designs Nine.1-->13Av2
Zuki Eleets 4-->Oz CS180 Matrix Elite
Rock (Zed) RA4.55-->Oz CS25 Matrix Elite
125 sq/ft eDead v1SE2
>>Scion xB Toy Collection Link<<
tanakasan is offline   Reply With Quote
Old 02-22-2011, 12:22 AM   #8
Senior Member
5 Year Member
SL Member

NYCxB's Avatar
NYCxB 114/M

Join Date: Jan 2005
Location: New York City & Los Angeles
iTrader: (0)
Default

So I don't have to take off all the plastic, where in the door is this thing?

Thanks again.

Any idea where I can get another screw for the door? That one that pops out?

Quote:
Originally Posted by frogbox View Post
I used the RTV , gasket glue , or maybe it was for an aquarium, rubber cement would work. Or you can just use tape to hold it on while you put the panel back up.
__________________
-------
NYCxB
2005 Scion xB/ Black
2010 HUMMER H3 Alpha /Black
NYCxB is offline   Reply With Quote
Old 02-22-2011, 01:34 AM   #9
Senior Member
5 Year Member
SL Member

tanakasan's Avatar
tanakasan 59/M

Join Date: Nov 2005
Location: SoCal
iTrader: (0)
Default

Quote:
Originally Posted by frogbox View Post
Reach in side ( the screws will be point toward you, head facing away from you.

The part that goes bad is connected to the inside of the door.
Your not that far off.
^^

The expanding fastener is unfortunately a dealer item. You can get replacements at Lowe's hardware aisle (in the steel drawers) but they will be just ribbed press-in ones.

Robert
__________________
'06 Scion PW xB
Pioneer P880PRS-->AudioControl Matrix
Elemental Designs Nine.1-->13Av2
Zuki Eleets 4-->Oz CS180 Matrix Elite
Rock (Zed) RA4.55-->Oz CS25 Matrix Elite
125 sq/ft eDead v1SE2
>>Scion xB Toy Collection Link<<
tanakasan is offline   Reply With Quote
Old 02-22-2011, 01:57 AM   #10
Senior Member
5 Year Member
SL Member

frogbox's Avatar
frogbox 58/M

Join Date: Jul 2005
Location: NOT HERE
iTrader: (0)
Default

I found " The Expanding Fastner of Doom" at O'Reilleys ( Kragen) auto parts in the help section , they got all kinds , just match it up.

You don't need to remove the whole plastic wrap , just the lower left to get access to the part.

And you are so close , the dealer will rape you with alot of labor , that you already did.

Hoping you got it fixed by now , been busy moving stuff 2 hours away( thats one-way) in the box. Only got 3 more loads to go.
__________________
I'll Try To Be Nicer, If You'll Try To Be Smarter.
I Refuse To Have A Battle Of Wits With Un-Armed People !
Sometimes it is better to say nothing and be thought a fool than to open your mouth and remove all doubt.
Hotbox05 wrote " You are not a nice man, and a Troll"
typhoonorchid wrote"What a completely rude a**hole. Learn some online manners"...hmmm some peoples kids
frogbox is offline   Reply With Quote
Old 02-22-2011, 02:02 AM   #11
Senior Member
5 Year Member
SL Member

NYCxB's Avatar
NYCxB 114/M

Join Date: Jan 2005
Location: New York City & Los Angeles
iTrader: (0)
Default

The bottom hole? The top hole? Which one? Thanks again.
Click the image to open in full size.
__________________
-------
NYCxB
2005 Scion xB/ Black
2010 HUMMER H3 Alpha /Black
NYCxB is offline   Reply With Quote
Old 02-22-2011, 03:13 AM   #12
Senior Member
5 Year Member
SL Member

frogbox's Avatar
frogbox 58/M

Join Date: Jul 2005
Location: NOT HERE
iTrader: (0)
Default

Larger hole on the bottom. You see the wire harness ?Just above the big lower hole. That is connected to the part your replacing.

Click the image to open in full size.


Hope that worked
__________________
I'll Try To Be Nicer, If You'll Try To Be Smarter.
I Refuse To Have A Battle Of Wits With Un-Armed People !
Sometimes it is better to say nothing and be thought a fool than to open your mouth and remove all doubt.
Hotbox05 wrote " You are not a nice man, and a Troll"
typhoonorchid wrote"What a completely rude a**hole. Learn some online manners"...hmmm some peoples kids

Last edited by frogbox; 02-22-2011 at 03:26 AM.
frogbox is offline   Reply With Quote
Old 02-27-2011, 09:47 PM   #13
Senior Member
5 Year Member
SL Member

frogbox's Avatar
frogbox 58/M

Join Date: Jul 2005
Location: NOT HERE
iTrader: (0)
Default

Did you ever get it installed?
__________________
I'll Try To Be Nicer, If You'll Try To Be Smarter.
I Refuse To Have A Battle Of Wits With Un-Armed People !
Sometimes it is better to say nothing and be thought a fool than to open your mouth and remove all doubt.
Hotbox05 wrote " You are not a nice man, and a Troll"
typhoonorchid wrote"What a completely rude a**hole. Learn some online manners"...hmmm some peoples kids
frogbox is offline   Reply With Quote
Old 02-28-2011, 01:36 PM   #14
Senior Member
5 Year Member
SL Member

MadMike550's Avatar
MadMike550 51/M

Join Date: Feb 2007
Location: Wisconsin
iTrader: (0)
Default

enquireing minds want to know
MadMike550 is offline   Reply With Quote
Old 02-28-2011, 06:42 PM   #15
Senior Member
5 Year Member
SL Member

NYCxB's Avatar
NYCxB 114/M

Join Date: Jan 2005
Location: New York City & Los Angeles
iTrader: (0)
Default

Sorry for no update. Here is what happened. After I went through the above process, befuddled by it all, was ready to take another attempt. Suddenly, and for no reason I can figure out, the original actuator started working.

I then tried to get the door panel flush again, taking the advice of Frogbox, but to no avail can I get this door panel popped in flush. I played with the wire harness to get it flush, but still no luck.

So, I have a spare actuator, a busted expanding fastener (that is the screw closest to the hinge) and a door panel that is not flush.

And so we are all clear the car is in LA, not in NYC, so I'm clueless as to why this actuator acted like gremlins were messing with it, although I had the same problem with driver's side passenger door last year and it cleared itself up somehow, again not due to any work being done on it.

Now I need to get a new expanding fastener and figure out how the heck to get the door panel flush again. Any ideas?

I might just have to bring it into the dealership and hope they won't charge me through the nose to get this flush and put in a new fastener. Would rather do it myself, but not up to messing it up any more than I have.

Sorry this didn't end as well as I had hoped, and thanks to all for the usual great advice which has always worked out far better than I managed this time around.
__________________
-------
NYCxB
2005 Scion xB/ Black
2010 HUMMER H3 Alpha /Black
NYCxB is offline   Reply With Quote
Old 03-01-2011, 06:45 AM   #16
Senior Member
5 Year Member
SL Member

Zman's Avatar
Zman 26/M

Join Date: Aug 2007
Location: DubV
iTrader: (0)
Default

Are the clips on the top of the door panel aligned properly?

It can't be too difficult.


And Autozone has the fasteners, I used them for my doors and for my front grill, they are in the little orange plastic packages on a swivel rack in most stores I've seen.

I have this actuator issue on my rear door, is it a different part #?

How much did you pay for it?
__________________
<a href="http://s115.photobucket.com/user/PpRZman/media/1273626_10201075081532754_1345766080_o_zpsf8b4cead.jpg.html" target="_blank"><img src="http://i115.photobucket.com/albums/n303/PpRZman/1273626_10201075081532754_1345766080_o_zpsf8b4cead.jpg~original" border="0" alt=" photo 1273626_10201075081532754_1345766080_o_zpsf8b4cead.jpg"/></a>
Zman is offline   Reply With Quote
Old 03-01-2011, 03:40 PM   #17
Senior Member
5 Year Member
SL Member

NYCxB's Avatar
NYCxB 114/M

Join Date: Jan 2005
Location: New York City & Los Angeles
iTrader: (0)
Default

How I put the door panel back on. Got it over the door lock, aligned it, then popped in the fasteners that are on the door panel with their respective holes.

The door panel pops in for all for a few that are lined up, but will not fully pop in leaving a 1" gap on the outer part of the door (furthest away from the hinges). The door handle you can see a slight gap.

Before putting the 2 screws in, tried to get the wire harness adjusted, but it appears it won't.

I don't know if the actuator for the front driver's door can be used on a rear door. Paid $103 all in (tax, shipping). Got the part from http://www.toyotapartszone.com/
__________________
-------
NYCxB
2005 Scion xB/ Black
2010 HUMMER H3 Alpha /Black
NYCxB is offline   Reply With Quote
Old 03-01-2011, 03:47 PM   #18
Senior Member
5 Year Member
SL Member

frogbox's Avatar
frogbox 58/M

Join Date: Jul 2005
Location: NOT HERE
iTrader: (0)
Default

Quote:
Originally Posted by Zman View Post
Are the clips on the top of the door panel lined up properly?

It can't be too difficult.


And Autozone has the fasteners, I used them for my doors and for my front grill, they are in the little orange plastic packages on a swivel rack in most stores I've seen.

I have this actuator issue on my rear door, is it a different part #?

How much did you pay for it?
Yes for each door there is a separate part number check out
www.toyodiy.com will tell you part number and approx. cost from dealer

And NYCxB, just check all the clips , you may have one out of place, or it is catching on the shelf for the arm rest.
Make sure you get the top of the panel in first, start with it a little bit to the left side, hook over the top of the door, then slide forward ( right), drop the panel down towards door , check that the clips are alighned and press them in, do not smack it or you could bend the clips making your panel not sit flush, and them not catching the holes. Wish you were closer and I could install it for you in about 10 min.
__________________
I'll Try To Be Nicer, If You'll Try To Be Smarter.
I Refuse To Have A Battle Of Wits With Un-Armed People !
Sometimes it is better to say nothing and be thought a fool than to open your mouth and remove all doubt.
Hotbox05 wrote " You are not a nice man, and a Troll"
typhoonorchid wrote"What a completely rude a**hole. Learn some online manners"...hmmm some peoples kids
frogbox is offline   Reply With Quote
Old 03-01-2011, 03:47 PM
Scionlife.com
Scion TC



Paid Advertisement



Reply


Tags
08, 6912052030, actuator, door, front, hummer, images, lock, locking, replacing, scion, themself, tv, working, xb


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT. The time now is 05:58 AM.
Advertising - Privacy Statement - Terms of Service - Jobs
vBulletin® v3.8.7, Copyright ©2000-2014, vBulletin Solutions, Inc.


Forums Backup with Admin Control Panel
