Default Just installed glove box illumination :)

Thanks to this inspiration: Got bored at work a few weeks back

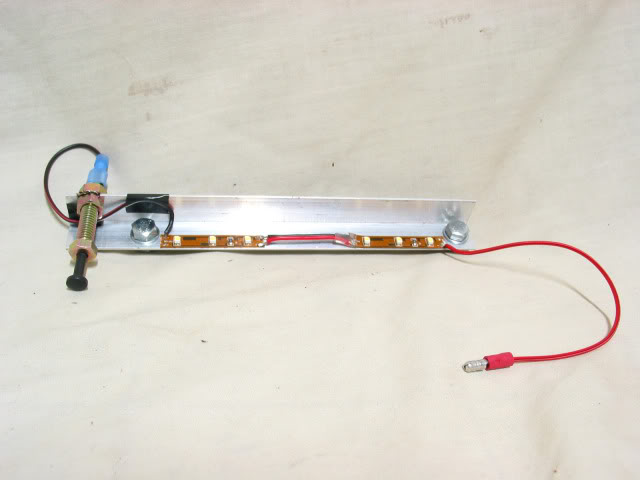

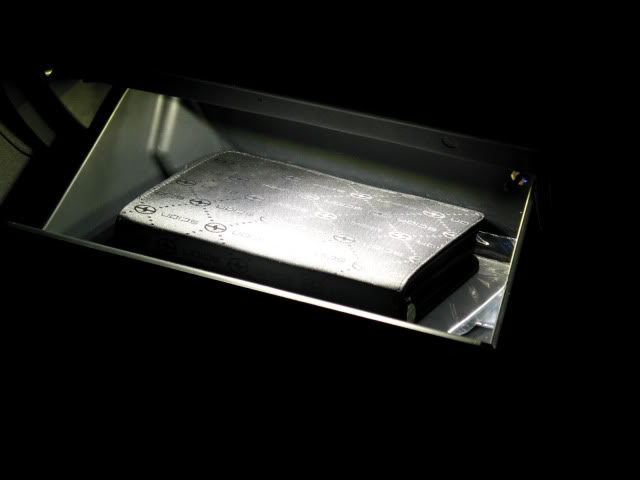

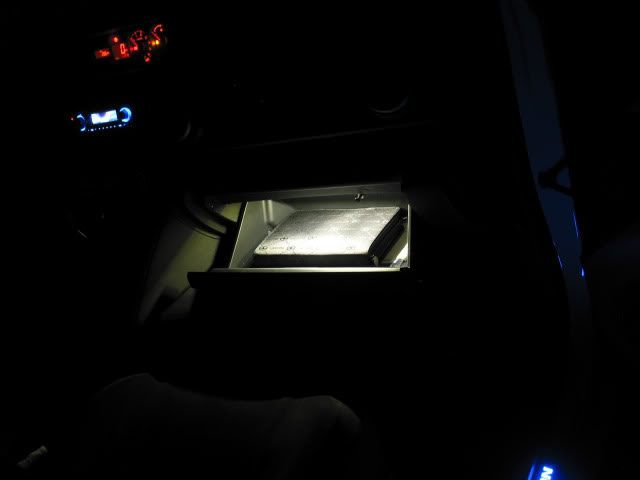

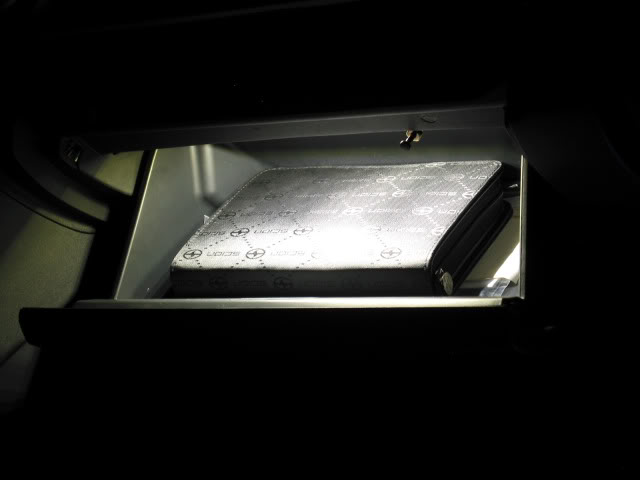

I decided to make glove box illumination my next xB2 project -- just finished today !

Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
__________________
Performance: homebrew CAI w/TRD air filter and inlet, TB mods (ScionFred P&P, coolant bypass, insulation), Boxstuf SB TBS w/gasket mod, ported painted wrapped Strup knock-off header, ported wrapped W-R "S"-pipe, ported "scuba" resonator/cat, painted original Tsudo dual exhaust w/modded hangers, Agency Power lightweight pulley, 2 AWG battery ground cable
Driver pleasure: Boxstuf Sport Shifter/Boot/Armrests, my lowered clutch-pedal mod, Dr. Isotope fore-aft shift bushing. (Other mods: Lots!)
TrevorS is offline   Reply With Quote
Old 04-28-2012, 01:56 AM   #2
Senior Member
5 Year Member
SL Member

pyroman131's Avatar


Join Date: Mar 2009
Location: Jacksonville, FL
iTrader: (0)
Default

Now that I like!

Does it close okay when it pushes in the switch?
__________________
Proud 2008 Scion xB owner.
Second grade teacher with a sweet xB.
For sale! Brand New 08-14 xB Wheel Skin!
http://www.scionlife.com/forums/ppc-suspension-brakes-1775/wheel-skin-sale-228420/
(As of 8/13/14)
pyroman131 is offline   Reply With Quote
Old 04-28-2012, 02:18 AM   #3
Senior Member
5 Year Member
SL Member

TrevorS's Avatar

Join Date: Feb 2008
Location: DE
iTrader: (1)
Default

Quote:
Originally Posted by pyroman131 View Post
Now that I like!

Does it close okay when it pushes in the switch?
Thanks !

Yes, it closes perfectly and I don't feel the switch when closing the door. I've adjusted it so with the door closed, it's only barely pushed, enough to break the contact plus a tad. If the door is to any degree open, the box is illuminated.
__________________
Performance: homebrew CAI w/TRD air filter and inlet, TB mods (ScionFred P&P, coolant bypass, insulation), Boxstuf SB TBS w/gasket mod, ported painted wrapped Strup knock-off header, ported wrapped W-R "S"-pipe, ported "scuba" resonator/cat, painted original Tsudo dual exhaust w/modded hangers, Agency Power lightweight pulley, 2 AWG battery ground cable
Driver pleasure: Boxstuf Sport Shifter/Boot/Armrests, my lowered clutch-pedal mod, Dr. Isotope fore-aft shift bushing. (Other mods: Lots!)
TrevorS is offline   Reply With Quote
Old 04-28-2012, 02:41 AM   #4
Senior Member
5 Year Member
SL Member

pyroman131's Avatar


Join Date: Mar 2009
Location: Jacksonville, FL
iTrader: (0)
Default

You should totally make me one that I can buy from you and install in my own box! I've wanted one for so long!
__________________
Proud 2008 Scion xB owner.
Second grade teacher with a sweet xB.
For sale! Brand New 08-14 xB Wheel Skin!
http://www.scionlife.com/forums/showthread.php?t=228420
(As of 8/13/14)
pyroman131 is offline   Reply With Quote
Old 04-28-2012, 04:03 AM   #5
Senior Member
5 Year Member
SL Member

TrevorS's Avatar

Join Date: Feb 2008
Location: DE
iTrader: (1)
Default

Quote:
Originally Posted by pyroman131 View Post
You should totally make me one that I can buy from you and install in my own box! I've wanted one for so long!
If you're serious, I'm willing to do that -- expect it to look much the same. If you want, I can include the metric mounting hardware and the power pigtail that feeds the glove box. There are a couple things you would have to do that you need to gauge your comfort with.

1) It's necessary to tap the small gauge dark green ILL+ wire (pin 10) on radio connector C1 (front door speakers plus other) for a power pigtail to feed the glove box (you can see the end of mine at the left of the second photo. It needs a female connector to accept the illumination male (red wire). If you have a harness adapter installed (aftermarket radio), then you can alternatively tap the adapter harness equivalent wire (which is what I did).

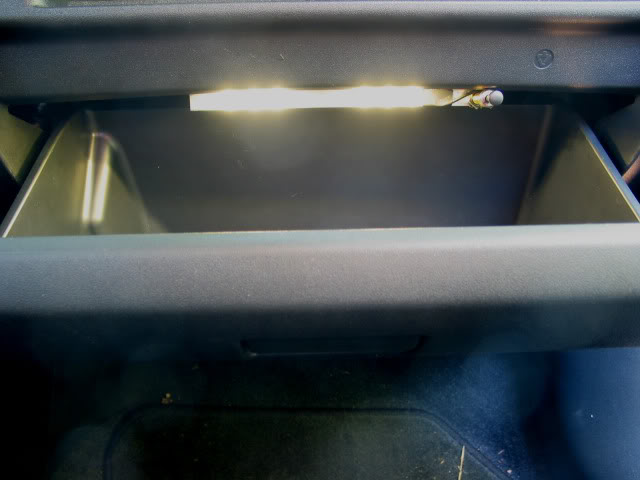

2) As you can see from the second photo, the assembly is bolted to the two steel braces above the glove box. If you remove your glove box door, you'll see they each have three holes, the bolts pass through the holes closest the passenger seat. If you sit on the passenger sill and feel down over the edge of those braces with your forefinger, you'll find the access space is very limited. I found it to be adequate, but positioning the fastening hardware to the bolt requires finger dexterity and patience. Basically, it's a three step process, the easiest being positioning a split ring lock washer over the end of a partially inserted bolt, next maneuvering a nut over the end of the bolt, and then carefully starting the bolt into the nut -- takes plenty of patience getting them aligned properly when you can't see the nut, only feel it. My guess is it'll take a couple or so tries to get some feel for it and a dry run without the light assembly is probably the best way to start.
__________________
Performance: homebrew CAI w/TRD air filter and inlet, TB mods (ScionFred P&P, coolant bypass, insulation), Boxstuf SB TBS w/gasket mod, ported painted wrapped Strup knock-off header, ported wrapped W-R "S"-pipe, ported "scuba" resonator/cat, painted original Tsudo dual exhaust w/modded hangers, Agency Power lightweight pulley, 2 AWG battery ground cable
Driver pleasure: Boxstuf Sport Shifter/Boot/Armrests, my lowered clutch-pedal mod, Dr. Isotope fore-aft shift bushing. (Other mods: Lots!)
TrevorS is offline   Reply With Quote
Old 04-28-2012, 09:03 AM   #6
Member

Join Date: Mar 2012
iTrader: (0)
Default

Great job. Just wondering where did you buy the switch?
kyleee is offline   Reply With Quote
Old 04-28-2012, 11:41 AM   #7
Senior Member
SL Member

DJ_Moonbass's Avatar


Join Date: Feb 2011
Location: Oregon City, OR
iTrader: (0)
Default

very intuitive i must say. allthough i dont like the switch and i would personally put in more thought on re designing it. (meaning if i was going to build one i would do it not that YOU need to, it works for you right?) i give you mad props for it non the less. good work. im curious how come you didn't use a continuous LED strip? instead you used to separate little strips.

for future reference if you want a brighter ouput. use 5050 SMD led cool white or neutral white strip. they are closer together and have a brighter output than anything else.
__________________
(this space is reserved for craps i give )
DJ_Moonbass is offline   Reply With Quote
Old 04-28-2012, 03:38 PM   #8
Senior Member
5 Year Member
SL Member

pyroman131's Avatar


Join Date: Mar 2009
Location: Jacksonville, FL
iTrader: (0)
Default

Trevor, if you're willing to make it and ship it to me, I'm down for it. I don't have the experience with doing custom brackets and LEDs, so getting it in my hands will give me an opportunity to play around with it and learn from it.

Let me know what kind of price you're looking at for materials and assembly. Then we'll talk shipping ha ha.
__________________
Proud 2008 Scion xB owner.
Second grade teacher with a sweet xB.
For sale! Brand New 08-14 xB Wheel Skin!
http://www.scionlife.com/forums/showthread.php?t=228420
(As of 8/13/14)
pyroman131 is offline   Reply With Quote
Old 04-28-2012, 06:50 PM   #9
Senior Member
10 Year Member
5 Year Member
SL Member

trdscion's Avatar


Join Date: Oct 2004
Location: Anahiem Hills, CA
iTrader: (1)
twitter.com/merrilljoe jedichimps merrilljoe
Default

Ive been looking for a switch like that but a little more low profile but not easy to find
__________________
Flickr // Instagram // SarapBuhay

FS: OEM Ground Effects pieces | FS: '08+ headlights w/ Digital Pro blinker mod
trdscion is offline   Reply With Quote
Old 04-28-2012, 10:36 PM   #10
Senior Member
5 Year Member
SL Member

TrevorS's Avatar

Join Date: Feb 2008
Location: DE
iTrader: (1)
Default

Quote:
Originally Posted by DJ_Moonbass View Post
very intuitive i must say. allthough i dont like the switch and i would personally put in more thought on re designing it. (meaning if i was going to build one i would do it not that YOU need to, it works for you right?) i give you mad props for it non the less. good work. im curious how come you didn't use a continuous LED strip? instead you used to separate little strips.

for future reference if you want a brighter ouput. use 5050 SMD led cool white or neutral white strip. they are closer together and have a brighter output than anything else.
Actually, I did spend some time thinking about it and specifically wanted a simple bolt in assembly that wouldn't affect any of the plastic panels (my personal experience is that simple is generally preferable to complex). What I used was natural white 3528SMD (didn't spot 5050) and in my judgement there was no need for more than the six. I find 12 5050SMD adequate in my dome light, and I just don't need blinding light in the glove box, just enough to be easily able to see -- this accomplishes that.
__________________
Performance: homebrew CAI w/TRD air filter and inlet, TB mods (ScionFred P&P, coolant bypass, insulation), Boxstuf SB TBS w/gasket mod, ported painted wrapped Strup knock-off header, ported wrapped W-R "S"-pipe, ported "scuba" resonator/cat, painted original Tsudo dual exhaust w/modded hangers, Agency Power lightweight pulley, 2 AWG battery ground cable
Driver pleasure: Boxstuf Sport Shifter/Boot/Armrests, my lowered clutch-pedal mod, Dr. Isotope fore-aft shift bushing. (Other mods: Lots!)

Last edited by TrevorS; 04-28-2012 at 11:42 PM.
TrevorS is offline   Reply With Quote
Old 04-28-2012, 11:04 PM   #11
Senior Member
5 Year Member
SL Member

TrevorS's Avatar

Join Date: Feb 2008
Location: DE
iTrader: (1)
Default

Quote:
Originally Posted by kyleee View Post
Great job. Just wondering where did you buy the switch?
Quote:
Originally Posted by trdscion View Post
Ive been looking for a switch like that but a little more low profile but not easy to find
I got the switch via Ebay, previously installed one just like it under the hood for my alarm system !

There are also car door open pin switches out there, but I specifically needed one that had a long adjustable reach.

Quote:
Originally Posted by pyroman131 View Post
Trevor, if you're willing to make it and ship it to me, I'm down for it. I don't have the experience with doing custom brackets and LEDs, so getting it in my hands will give me an opportunity to play around with it and learn from it.

Let me know what kind of price you're looking at for materials and assembly. Then we'll talk shipping ha ha.
We can do that, but are you OK with pulling your radio and attaching a power pigtail? Also, seriously, remove your glove box and check out those braces -- if install won't be practical for you, it's a waste of time and money. If you like, I could send you a pigtail and metric hardware so you can see if install will work before we go on the assembly itself.
__________________
Performance: homebrew CAI w/TRD air filter and inlet, TB mods (ScionFred P&P, coolant bypass, insulation), Boxstuf SB TBS w/gasket mod, ported painted wrapped Strup knock-off header, ported wrapped W-R "S"-pipe, ported "scuba" resonator/cat, painted original Tsudo dual exhaust w/modded hangers, Agency Power lightweight pulley, 2 AWG battery ground cable
Driver pleasure: Boxstuf Sport Shifter/Boot/Armrests, my lowered clutch-pedal mod, Dr. Isotope fore-aft shift bushing. (Other mods: Lots!)
TrevorS is offline   Reply With Quote
Old 04-29-2012, 06:35 AM   #12
Senior Member
5 Year Member
SL Member

pyroman131's Avatar


Join Date: Mar 2009
Location: Jacksonville, FL
iTrader: (0)
Default

^ Install shouldn't be too tough to me as I'm Asian and very good at crawling into tight, dark spaces. I've also installed the TRD remote start into the glove box area and was able to handle it fine. I'm sure my nimble fingers can access it!
__________________
Proud 2008 Scion xB owner.
Second grade teacher with a sweet xB.
For sale! Brand New 08-14 xB Wheel Skin!
http://www.scionlife.com/forums/showthread.php?t=228420
(As of 8/13/14)
pyroman131 is offline   Reply With Quote
Old 04-30-2012, 01:38 AM   #13
Senior Member
5 Year Member
SL Member

TrevorS's Avatar

Join Date: Feb 2008
Location: DE
iTrader: (1)
Default

I decided the pin switch would be better located further off to the side, so I moved it out roughly 3" further. Definitely better now, though at first I had clearance issues between the side of the glove box and the aluminum bracket -- guess I went 1/8" too far !

Click the image to open in full size.
__________________
Performance: homebrew CAI w/TRD air filter and inlet, TB mods (ScionFred P&P, coolant bypass, insulation), Boxstuf SB TBS w/gasket mod, ported painted wrapped Strup knock-off header, ported wrapped W-R "S"-pipe, ported "scuba" resonator/cat, painted original Tsudo dual exhaust w/modded hangers, Agency Power lightweight pulley, 2 AWG battery ground cable
Driver pleasure: Boxstuf Sport Shifter/Boot/Armrests, my lowered clutch-pedal mod, Dr. Isotope fore-aft shift bushing. (Other mods: Lots!)
TrevorS is offline   Reply With Quote
Old 04-30-2012, 05:44 AM   #14
Senior Member
5 Year Member
SL Member

DJ_FroZone's Avatar

Join Date: Sep 2007
Location: Vestal, NY
iTrader: (2)
Send a message via AIM to DJ_FroZone
Default

i love you. that is all.
DJ_FroZone is offline   Reply With Quote
Old 04-30-2012, 04:20 PM   #15
Senior Member
5 Year Member
SL Member

CIONIDE's Avatar


Join Date: Nov 2007
Location: Napa, CA
iTrader: (1)
Default

Quote:
Originally Posted by DJ_FroZone View Post
i love you. that is all. No homo.
Fixed it for you... I think.
__________________
Common sense is not common.
CIONIDE is offline   Reply With Quote
Old 05-01-2012, 01:18 AM   #16
Senior Member
5 Year Member
SL Member

TrevorS's Avatar

Join Date: Feb 2008
Location: DE
iTrader: (1)
Default

Just an aside -- I expect some might prefer to simplify a bit further by using a single strip of nine LEDs instead of my approach of jumpering two strips of three. It would also make the center region brighter, but for me, the six works fine and I like the reasonably even illumination. A question of personal choice !

Quote:
Originally Posted by DJ_FroZone View Post
i love you. that is all.
Thank you sir, happy to please !

Quote:
Originally Posted by pyroman131 View Post
Let me know what kind of price you're looking at for materials and assembly. Then we'll talk shipping ha ha.
In case anyone was following this discussion, we've switched to PM for the time being.
__________________
Performance: homebrew CAI w/TRD air filter and inlet, TB mods (ScionFred P&P, coolant bypass, insulation), Boxstuf SB TBS w/gasket mod, ported painted wrapped Strup knock-off header, ported wrapped W-R "S"-pipe, ported "scuba" resonator/cat, painted original Tsudo dual exhaust w/modded hangers, Agency Power lightweight pulley, 2 AWG battery ground cable
Driver pleasure: Boxstuf Sport Shifter/Boot/Armrests, my lowered clutch-pedal mod, Dr. Isotope fore-aft shift bushing. (Other mods: Lots!)
TrevorS is offline   Reply With Quote
Old 06-18-2012, 06:44 PM   #17
Senior Member
5 Year Member
SL Member

pyroman131's Avatar


Join Date: Mar 2009
Location: Jacksonville, FL
iTrader: (0)
Default

I just wanted to bump this thread and bring it back to light.


I've ordered a custom kit from Trevor that he kindly made for me at a fair price and installed it today. The outcome is fabulous! Not having a light there always drove me bonko, but now that I have one I can rest easy!.

I simply tapped into the cigarette lighter because I was too angry to wire it elsewhere. Reaching my hands in a tight enclosed space and working in the hot Florida sun basically drove me to the funny farm pretty quickly. And I didn't have time or patience for that jargon.


If you want pics, I can post some, but it would basically look the exact same as Trevor had it.
__________________
Proud 2008 Scion xB owner.
Second grade teacher with a sweet xB.
For sale! Brand New 08-14 xB Wheel Skin!
http://www.scionlife.com/forums/showthread.php?t=228420
(As of 8/13/14)
pyroman131 is offline   Reply With Quote
Old 06-18-2012, 08:02 PM   #18
Senior Member
10 Year Member
5 Year Member
SL Member

trdscion's Avatar


Join Date: Oct 2004
Location: Anahiem Hills, CA
iTrader: (1)
twitter.com/merrilljoe jedichimps merrilljoe
Default

more pics the better
__________________
Flickr // Instagram // SarapBuhay

FS: OEM Ground Effects pieces | FS: '08+ headlights w/ Digital Pro blinker mod
trdscion is offline   Reply With Quote
Old 06-19-2012, 05:43 AM   #19
Senior Member
5 Year Member
SL Member

TrevorS's Avatar

Join Date: Feb 2008
Location: DE
iTrader: (1)
Default

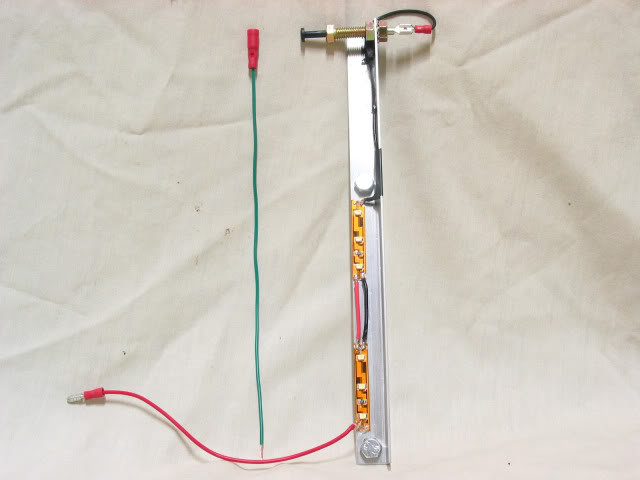

This is what I sent Daniel !
Click the image to open in full size.
Click the image to open in full size.
__________________
Performance: homebrew CAI w/TRD air filter and inlet, TB mods (ScionFred P&P, coolant bypass, insulation), Boxstuf SB TBS w/gasket mod, ported painted wrapped Strup knock-off header, ported wrapped W-R "S"-pipe, ported "scuba" resonator/cat, painted original Tsudo dual exhaust w/modded hangers, Agency Power lightweight pulley, 2 AWG battery ground cable
Driver pleasure: Boxstuf Sport Shifter/Boot/Armrests, my lowered clutch-pedal mod, Dr. Isotope fore-aft shift bushing. (Other mods: Lots!)
TrevorS is offline   Reply With Quote
Old 06-21-2012, 08:56 AM   #20
Senior Member
SL Member

Join Date: Oct 2009
iTrader: (0)
Default

I wonder if a mercury tilt switch would work instead of a pin switch?
KaneoheKoa is offline   Reply With Quote
Old 06-21-2012, 08:56 AM
Scionlife.com
Scion TC



Paid Advertisement



Reply


Tags
2008, box, door, glove, glovebox, illuminated, iq, mount, online, parts, put, scion, seal, space, tc, xb


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT. The time now is 01:03 PM.
Advertising - Privacy Statement - Terms of Service - Jobs
vBulletin® v3.8.7 AC1, Copyright ©2000-2014, vBulletin Solutions, Inc.


Forums Backup with Admin Control Panel
