HID Install (HIDExtra)


So I know HID's are simple to install, but this DIY is to show how truly easy it is. I made this DIY specifically for the HIDextra kit, and I hope this helps. HIDextra is an amazing company that I would recommend to anyone. The customer service and quality are excellent, and the price is purely unbeatable.
Let's get this thing on the road.
(pictures will be posted below instructions)

So this is the box that your kit will come in.
It will include everything necessary.
Attachment 119666

Step one: Take out the old bulb. (I have an 07, so I am using the 9006 size, but the instructions are the same for different years)
Attachment 119667

Step two: take one of the wiring harnesses and plug it into the connection you just freed up.
Attachment 119668
Attachment 119669

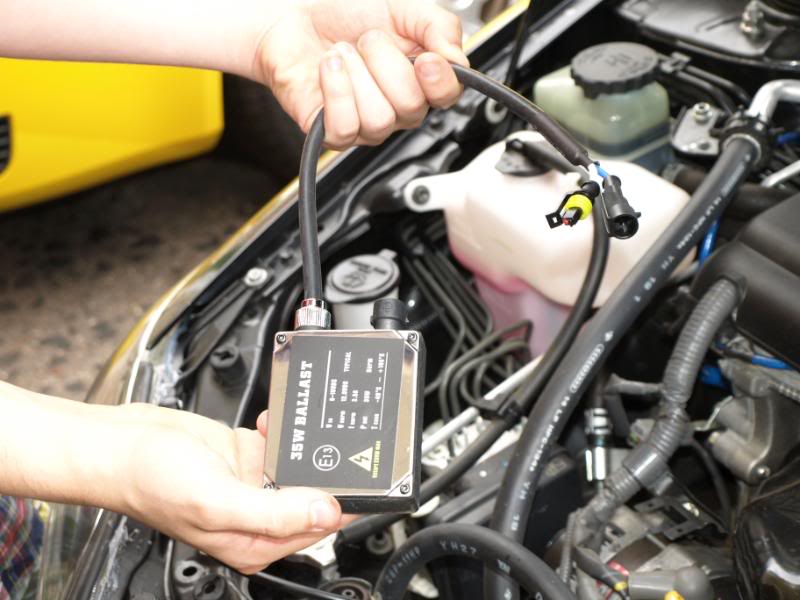

Step three: Take one of the ballasts, and plug the other end of the harness into the open slot on the ballast.
Attachment 119670
Attachment 119671

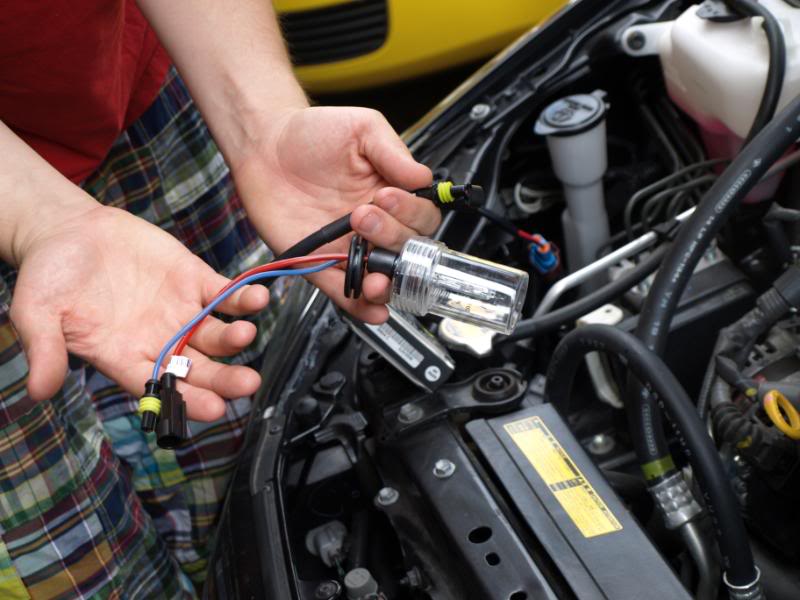

Step four: Take the last piece in the kit: the bulb and connect wires. There will be a wire exiting the ballast that splits into two smaller clips.
Connect the two clips from the wire on the bulb to the wires from the ballast.
Attachment 119672
Attachment 119673

Step five: now that everything is connected, turn on your lights and make sure they work.
If they do not, you have to reverse the polarity of your HID's. All this means is: when you connected the wire [into] the ballast, unplug it and flip it around, then re-insert it.
Attachment 119674

Step six: Once you're sure everything is connected and working, you're going to want to re-insert the bulb into the opening. Be sure that whenever you're handling bulbs, NEVER touch them with your skin. You WILL ruin the bulbs.
Attachment 119675

Step seven: With everything hooked up, you're going to want to "hide" your ballasts and wires. This wasn't too big of a concern to me, so you can modify this step to better suit you.

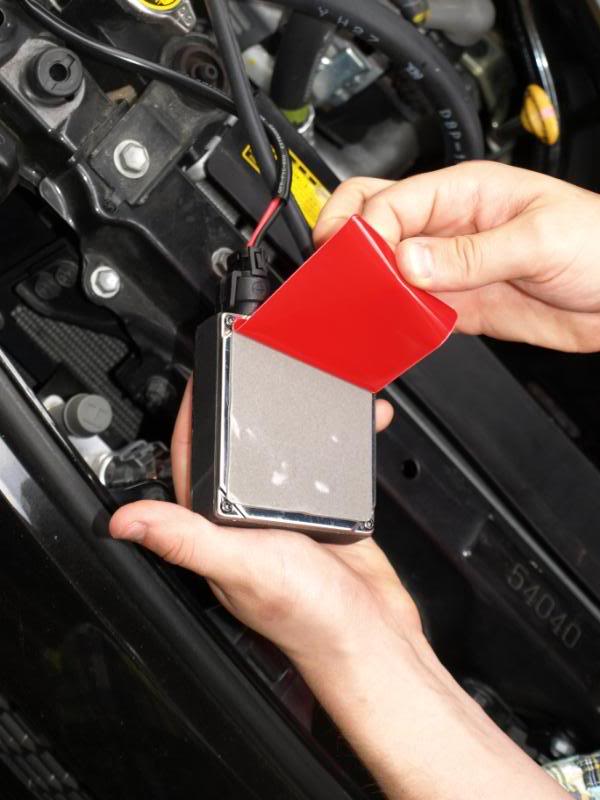

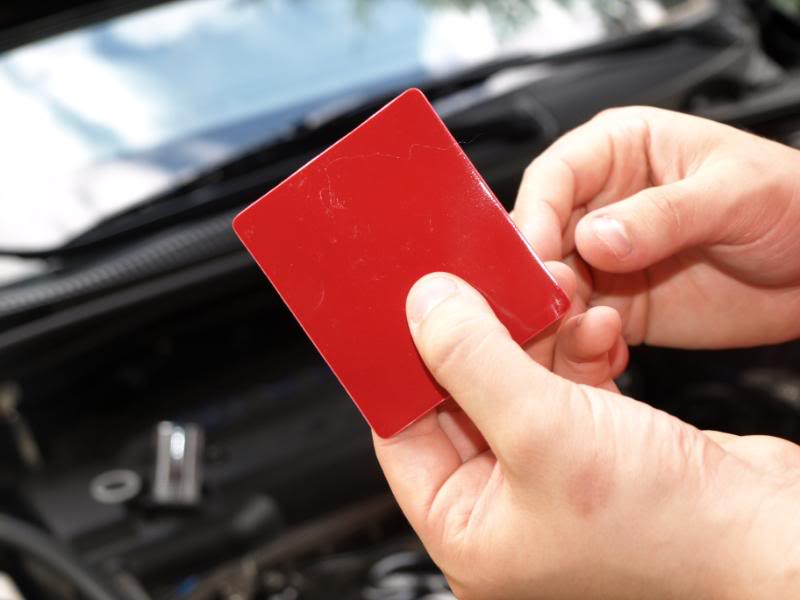

The kit will come with a double sided mounting patch. I just decided to mount it to the flatest surface I could find. On the left side, you can see where I did, and on the right, I just mounted it to the back side of the battery.
Attachment 119676
Attachment 119677
Attachment 119678

Step eight: Once the ballasts are hidden, you'll want to tuck the wires somewhere. BE CAREFUL: you do not want to place them in the way of moving parts. there are belts spinning all around so you want to be careful
I just tucked mine down below. The kit does come with zip-ties to better accomodate picky people.
Attachment 119678

Step nine: repeat on the other side, and enjoy!!
