First off if my spelling and lack of explaining things bothers you pleas cut me some slack, its 5am and i just got home from doing installs all day and night long. ill try to keep it short and sweet so if there are any questions dont hesitate to ask and ill be happy to answer you guys as soon as i wake up....lmao

Parts needed

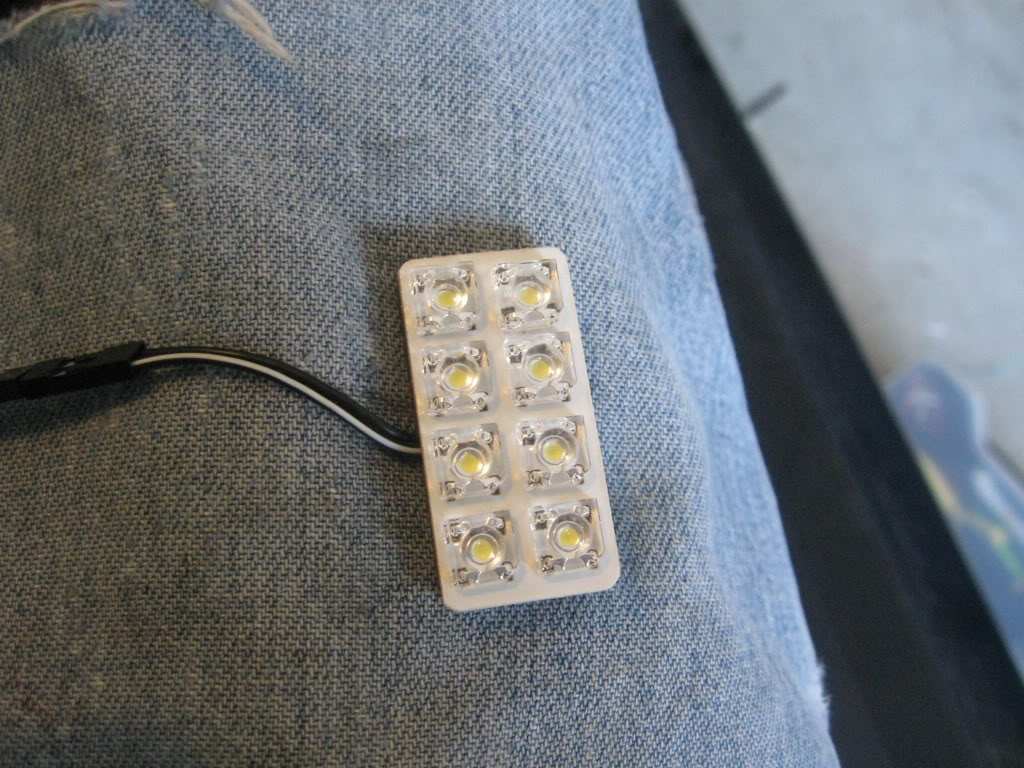

bright high output led lights (get em from oznium.com or local pep-boys)



16 gauge wire (speaker wire will do just fine)

butt splices or solder (to each his own)

aem fic universal harness (for those that have a pnp harness, if your hardwired you will save a step later on)

Tools

crimper or solder iron

stripers (no im not talking about your sister...lmao)

laptop or desktop (doesnt really matter)

Game plan

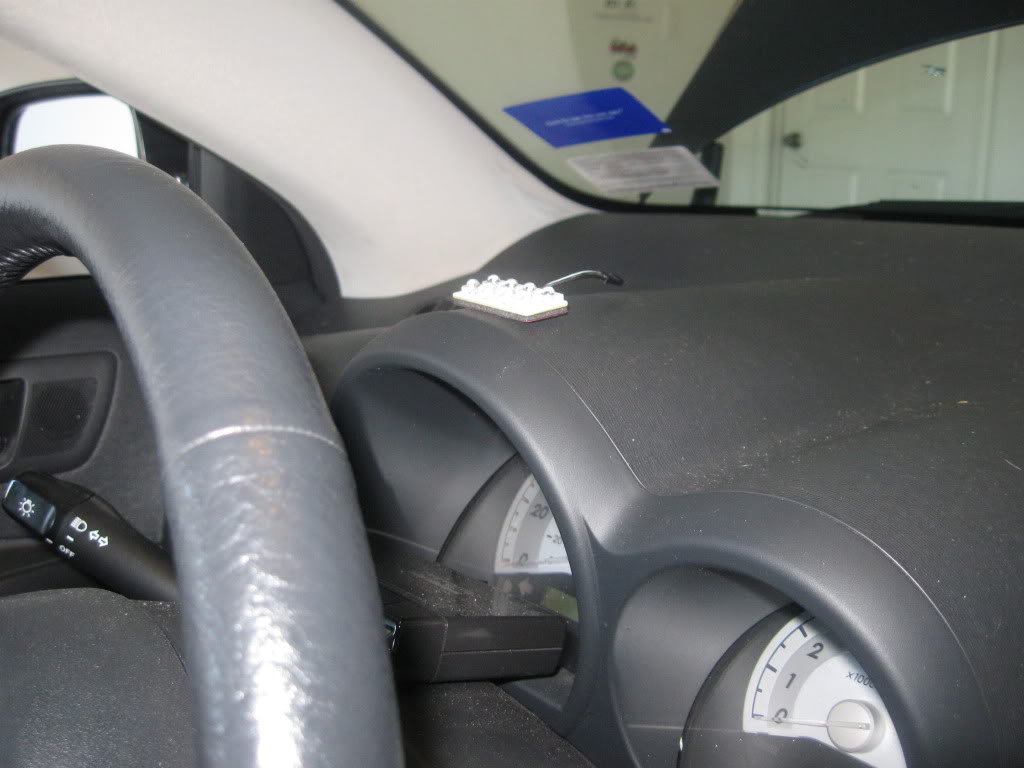

First find a spot thats in your line of sight and visible to place a shift light.

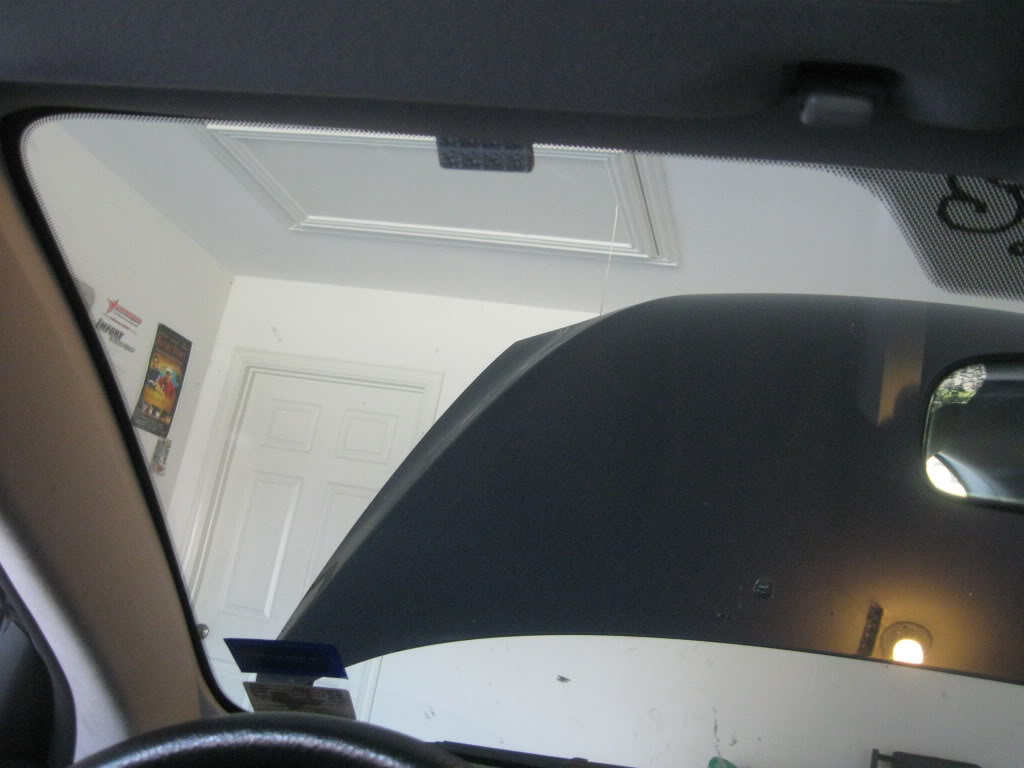

(some ideas)




Run the wire between your fic and shift light

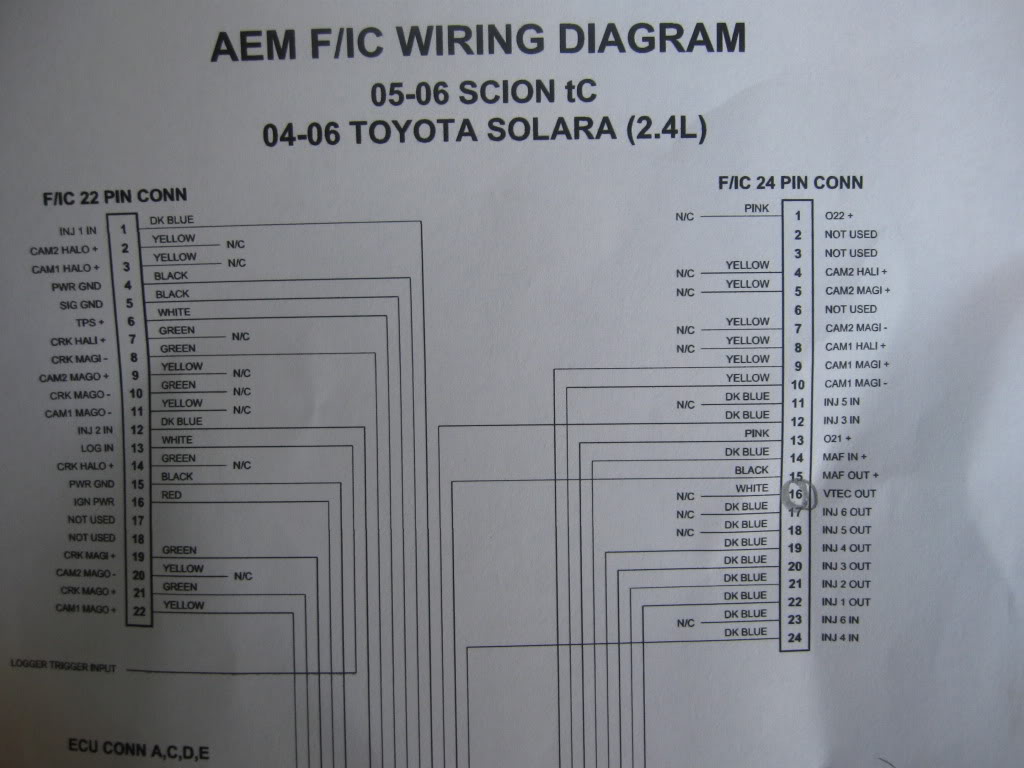

Locate pin 16 on the 24 pin connector

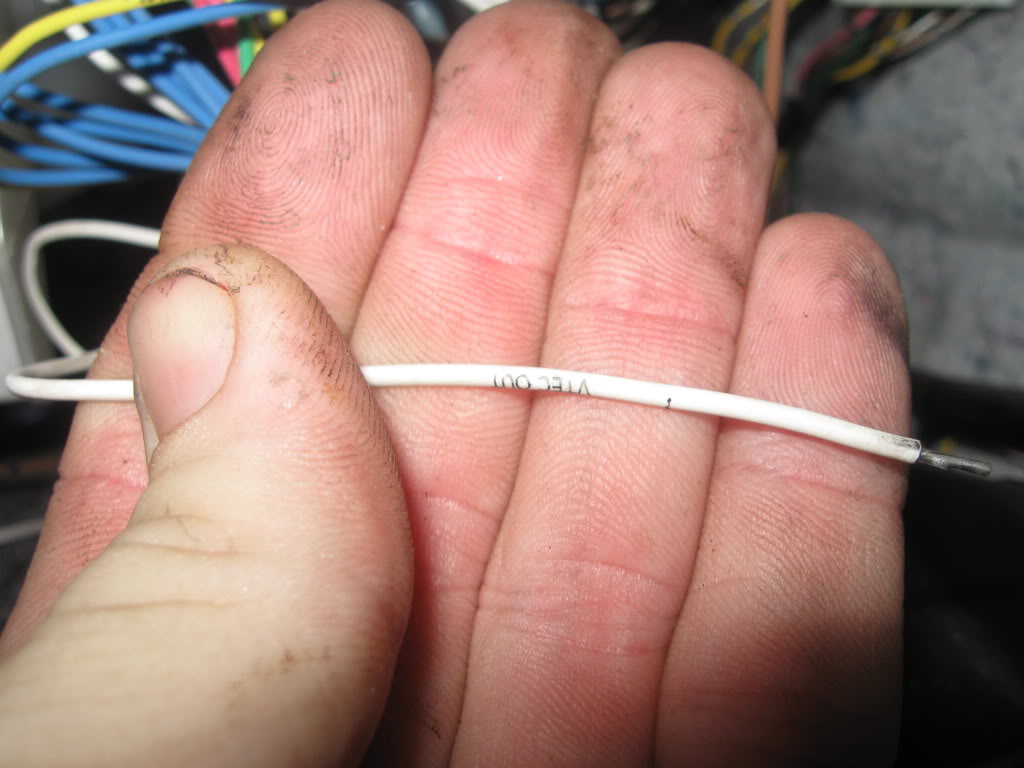

If hardwired your going to use the white wire labeled "vtec out" (finaly a real use for vtac...lmao) to power the shift light.



If pnp harness is used youll need to get the universal harness and pull a pin out of the connector to push into the open spot (pin 16 of 24 pin connector)

Find a ground for the ground wire

After makeing connections double check with a volt meter to make sure they are solid.

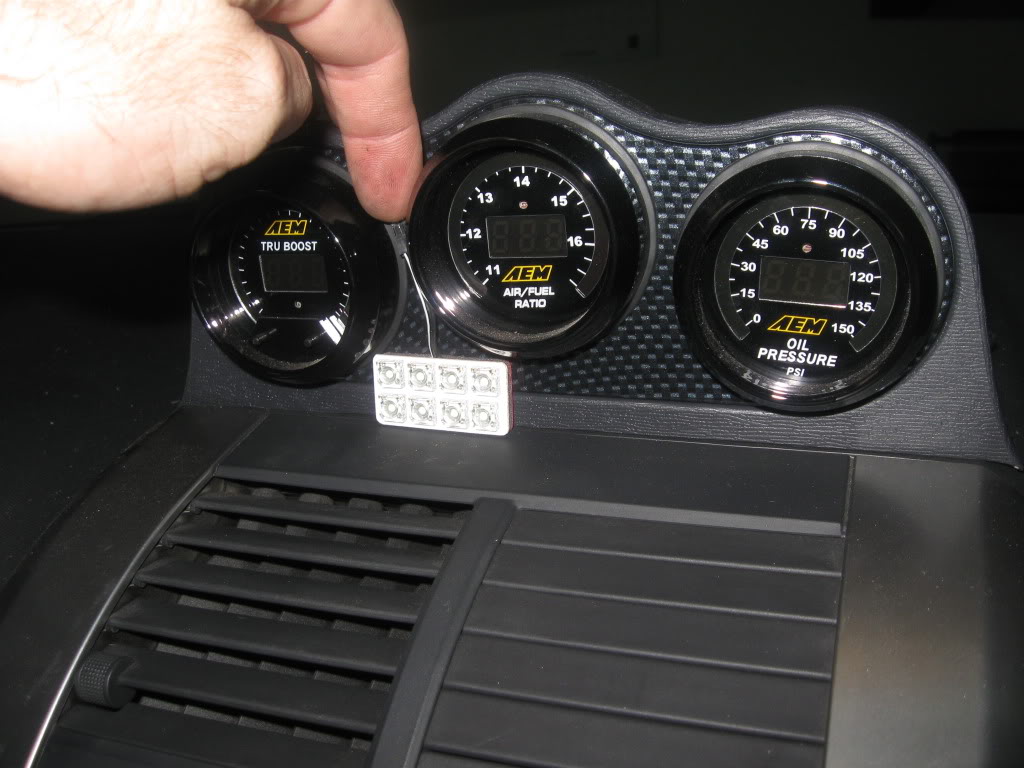

Place LED's in desired location and wire it up

Hook up your fic to computer and open the cal (maps) that your using and click on the connect icon

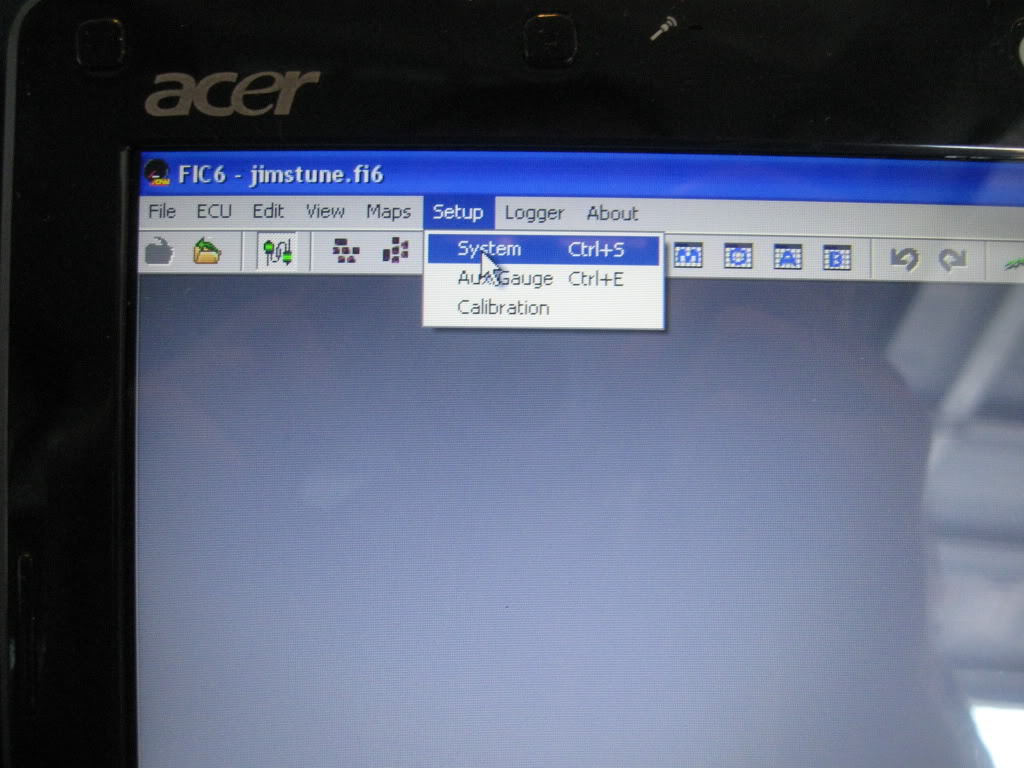

Click on setup, scroll down to system (click it....duh...lol)

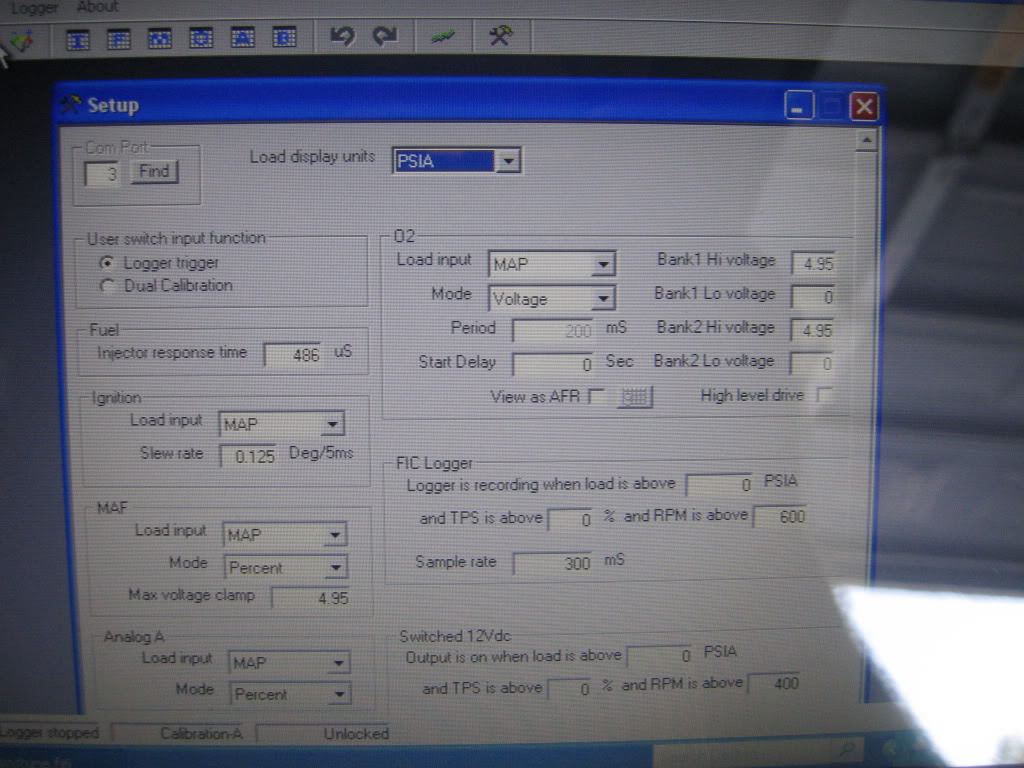

A box will pop up, look at the bottom right hand corner of that box labeled "Switched 12Vdc"...this is were all the magic happens



Set load and tps to 0 if it isnt already

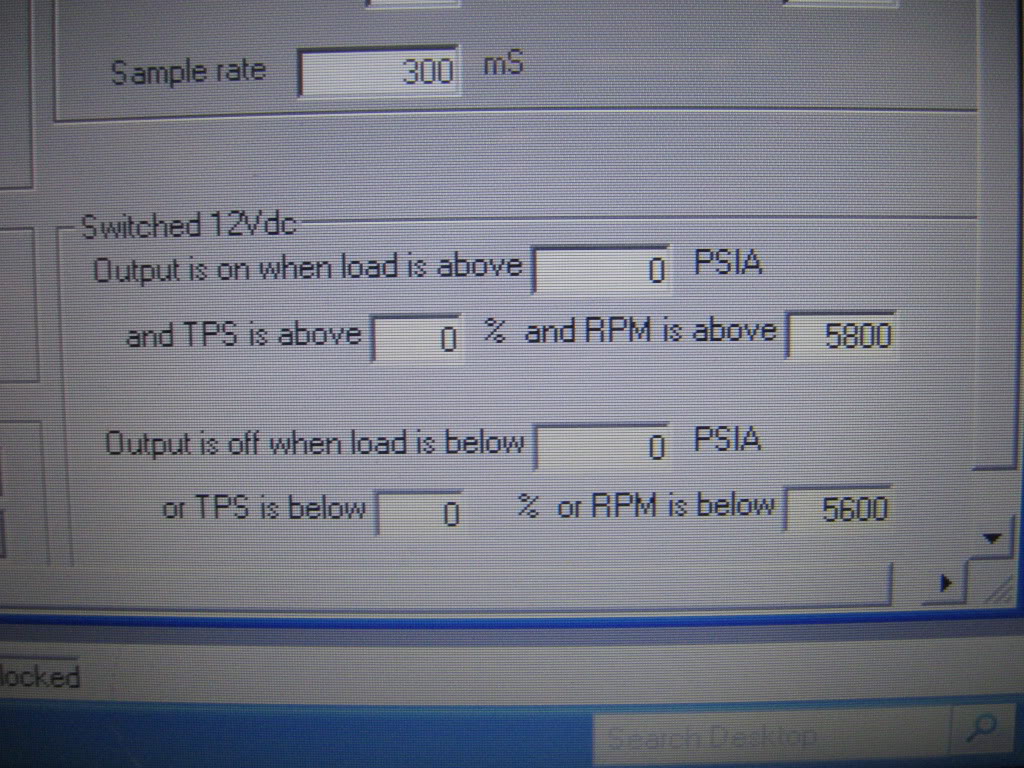

Set the ON to desired RPM

Set the Off to 200-300 RPM's less than the on

(warning the fic is kinda laggy so you want to set the on about 500 less than what is desired, that should make up for the lag. youll see in the vid..lol)

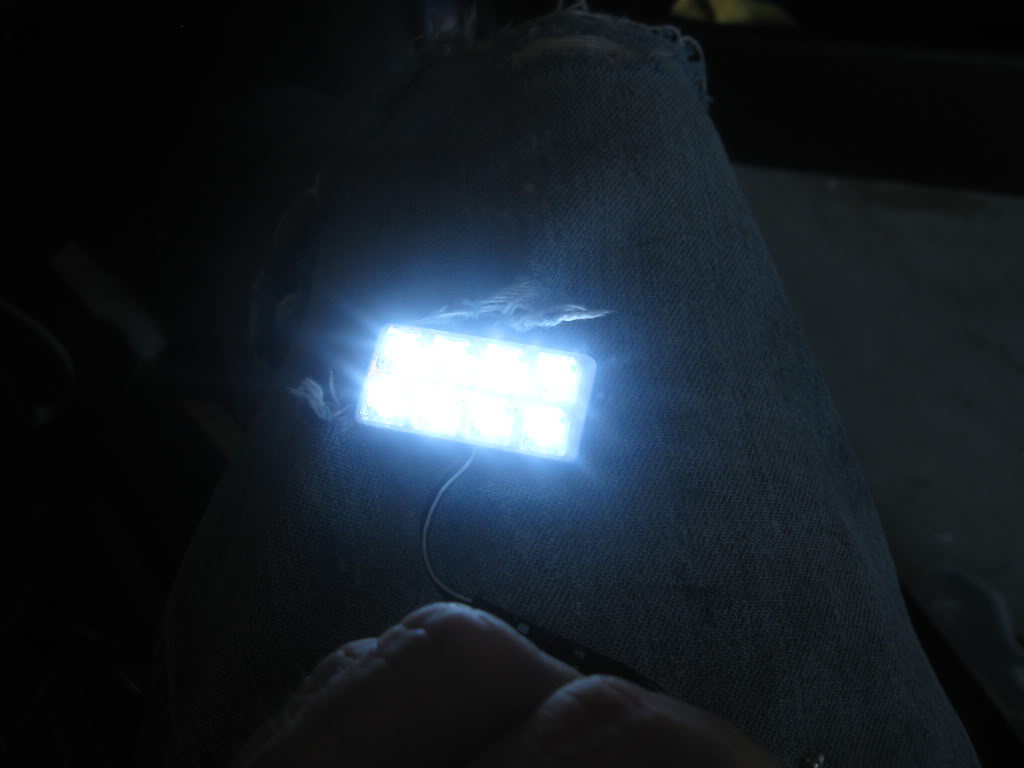

The Results






Big THANKS to Paul at Dezod and Garrett (TheFantasticG) for allowing me to do this mod to his car (like he really minded...lol)

alright guys im going to bed...laters
