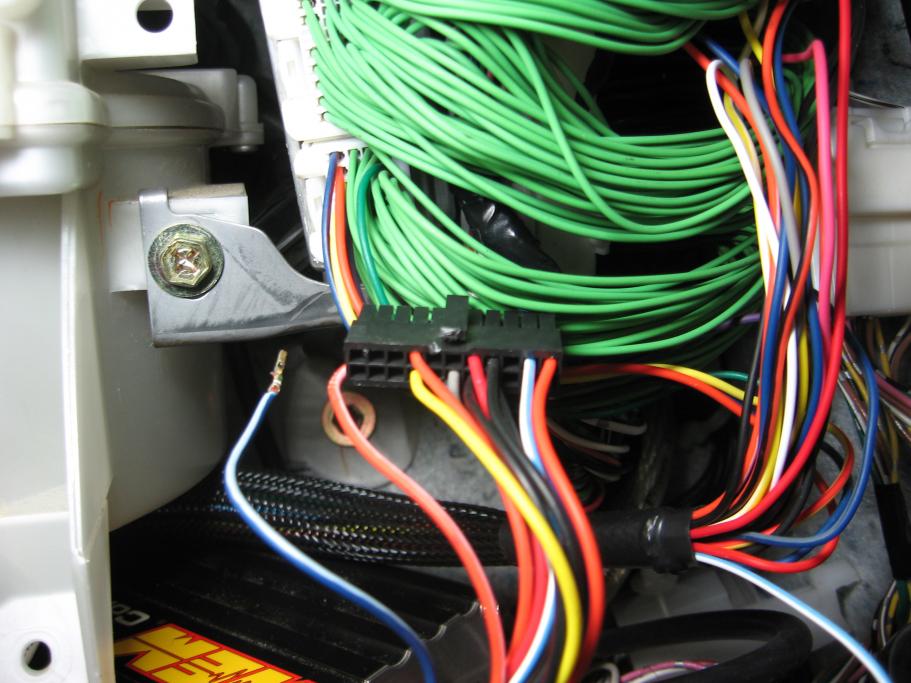

I hate to make a new thread, but I can't find close up pics or the proper pinout/wire color for this. I was going to tap from pin 18 to my wideband so I can log my wideband with the FIC. Anyway, when I was pulling the 22pin connector off 2 wires also pulled out and I can't find where they go. I'm almost positive they should go on the far left pins somewhere....
22 21 20
11 10 09

Any help would be much appreciated





I am actually curious witch wire i need to hook my wide ban gauge wire to data log also ...

I'm assuming that I connect my wide band analog wire to the white login wire correct??

Sorry to but in on your post



Awesome thank you Crush!! My harness does not have an aux in so I'll have to pin it...Anyone know of a place to find the right size female pin for this harness?

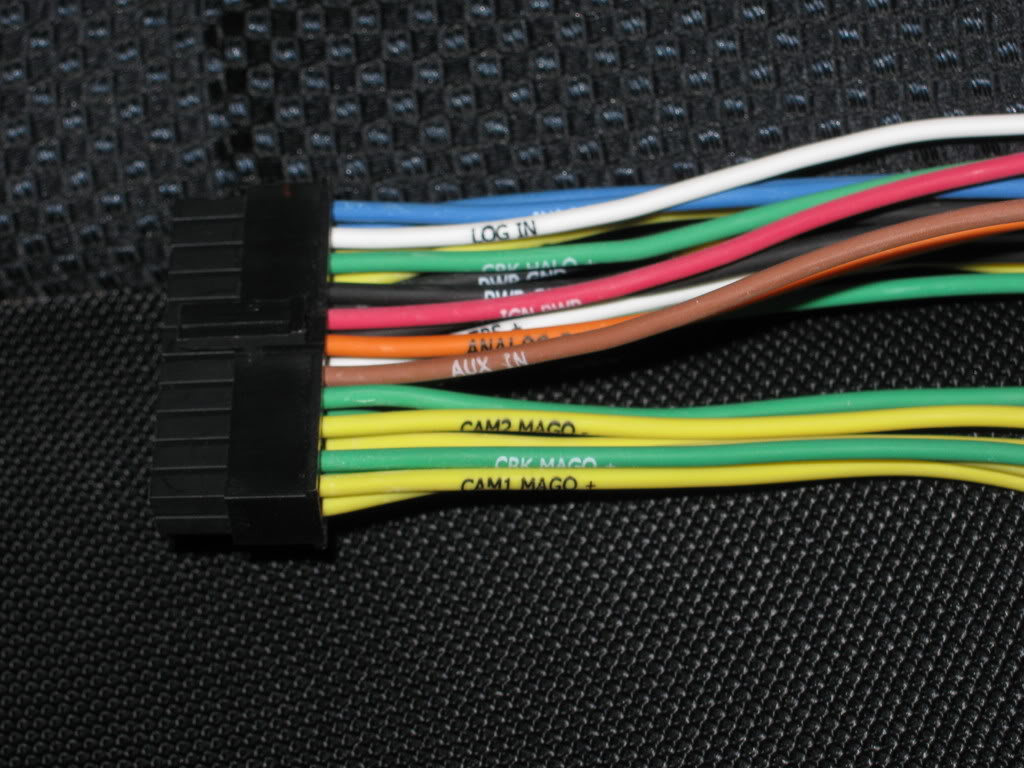

The log wire is just there to hook up to a switched ground to start the internal data logging. The aux in is where you would land your 0-5VDC sensor. You just need to set up the parameters in the FIC software ie. 0-5V = 7.35 - 22.39 A/F for the innovate wb.

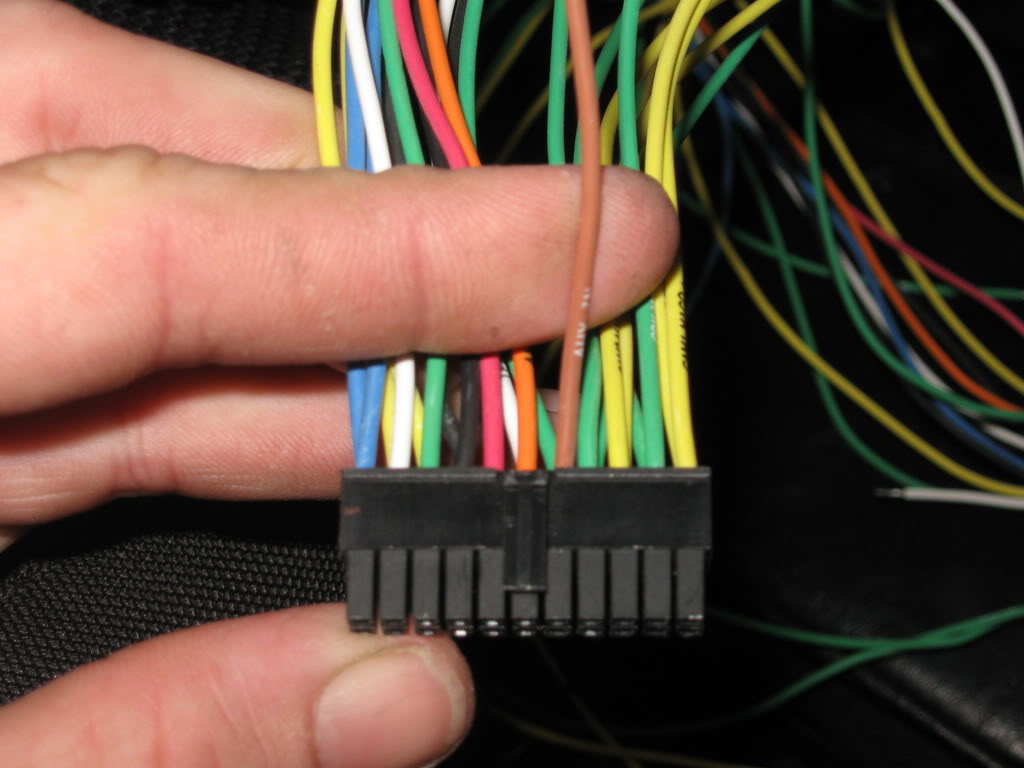

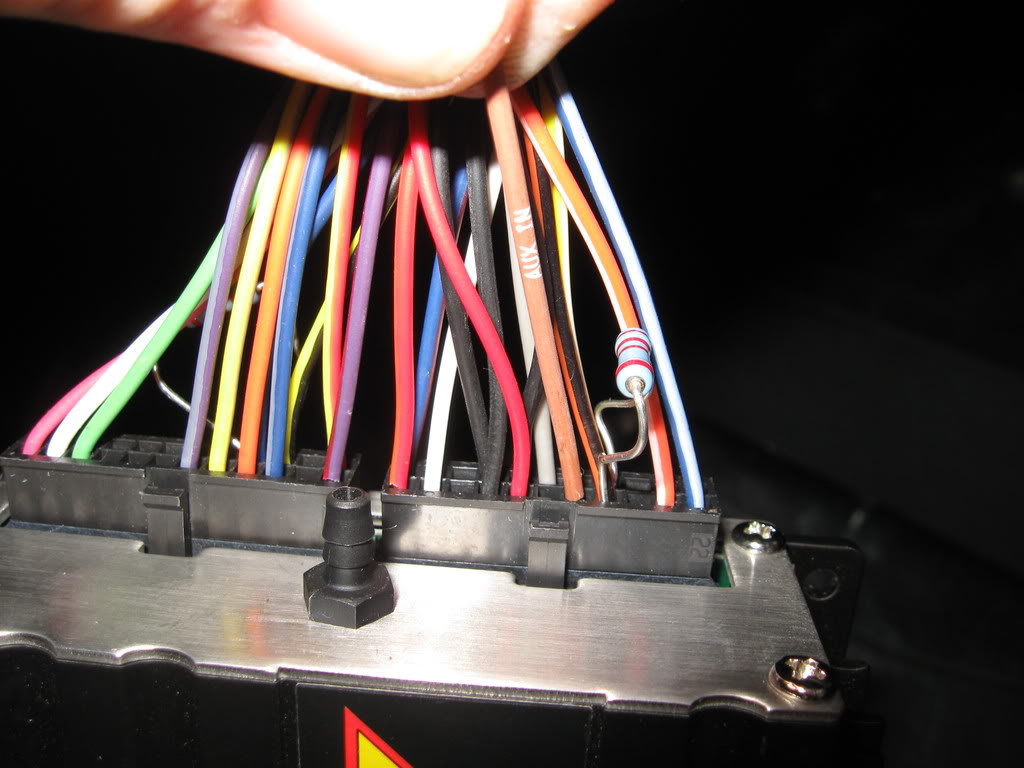

see above pic



if you have the universal harness and if your lucky you can pull a pin and wire from the uni harness (thats one big IF..lol)

I do have some laying around but not sure where, i got em from http://www.alliedelec.com/search/pro...px?SKU=8630537

good luck
