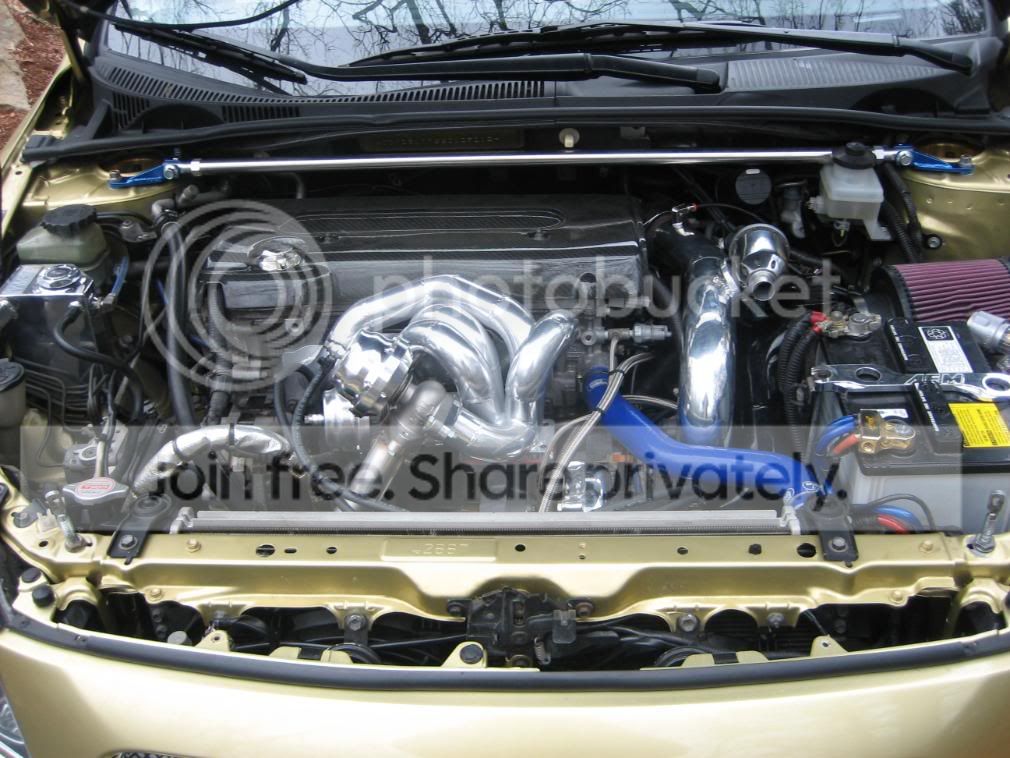

Here are some pics of my "extreme" kit which took some major modification to get to work. We got the GT3076r in there by removing the slave cylinder bleeder valve, replacing it with a bolt, and then shaving down that bolt. Here's the dirt:

Garrett GT3076r Ball Bearing Turbo w/ divided turbine housing
Two Tial 38mm Polished wastegates
Turbo Toyotas Twin Scroll Manifold
Polished Intercooler Piping
Garrett Intercooler with Turbo Toyotas endtanks
Black Intake Pipe (soon to be polished)
630cc Injectors
Unichip Piggy Back
Cooling Mist Vari-Cool Water/Meth

I have yet to have it tuned or dynoed and have not even hit boost yet



Why wouldn't a 3076 fit? is it just in a new spot because of the manifold?

Looks good tho can't wait to see it all wrapped up.



yea it was hitting the slave cylinder causing a lot of headaches... the install took 2 weeks.

dont mind the recirculation fitting on the HKS BOV... I need to find my little fan thing for it haha



That looks awesome. Looks like you are going to need to remove the plastic valve cover. Looks like it's melting...



it looks carbon fiber to me and i dont see where its melting



ah i was just asking because my friends 3076 bolted right into his tC np. On a Turbonetics kit tho



Look at where the highest runner is. There is a little spot right there that looks like the manifold might be melting the plastic valve cover...



thats just a curve to clearence the valve cover



just my opinion here. but i wouldn't consider shaving down a bolt to be a "major modifacation".



i think thats just a reflection of a bump like the one to the right of it



Thats a nasty kit!

Good job!



can I have the recirculation fitting for the HKS???



That manifold is going to be melting your insulation. I really don't see the point of all these crazy manifolds. and with those welds. The crazy formation of your manifold isn't going to get you any extra show points.



not sure about show points, but that turbo will be maxxed out with the performance with the split collector set up



someone buy this guy a clue.



Yes they will give me more show points and it will also give me more horsepower.

The twin scroll design and somewhat equal length of the runners will help minimize turbulence and provide a quicker spool.



lol look at the size of the reducer



lol yea 4" to 3"... thing that sucks as I may not even get a chance to tune this since it will be in NY until the 30th.



so how are you supposed to bleed the clutch now? and is any of TT other manifolds like this?? any thing else need to be done for this to work?



A Garrett GT3076R will fit....he doesn't have a Gt3076R from Garrett, he has Greddy's version of it. Greddys housing is larger than an S cover from Garrett, hence the "tight" fitment issues.

No. His turbo fit fine on a Version 2.1 manifold. The twin scroll mani uses the same turbine placement, so it should have cleared. It was just a few mm off.

Regardless you would need to remove the turbo to do so. When it clears the slave cylinder its only by a few mm with an S cover.

Hope you were joking Scott

The reducer for the intake isn't going to effect performance like you guys might think it would.....don't judge a book by its cover ;)



Most importantly............


NICE WORK ALEX......glad to finally see it in the car sir

Regards-

Todd
