I ws wondering if anyone have any pics of the 1NZ torn down. Like with the head removed and stuff like that. I looked around and I could not really find aynthing with it torn apart.



i take it no one has any pics of the 1NZ?



sorry, i didn't take pics...

once you've seen one apart, you've seen them all



what are you looking for

it is the same as almost all other toyota 4cyl



Me either.

And I found Dave's hidden camera in my garage also!

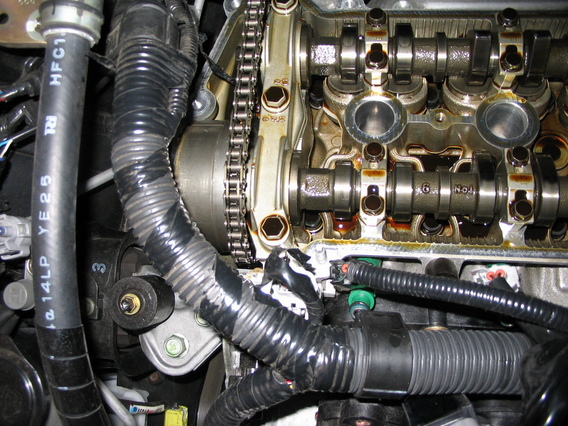

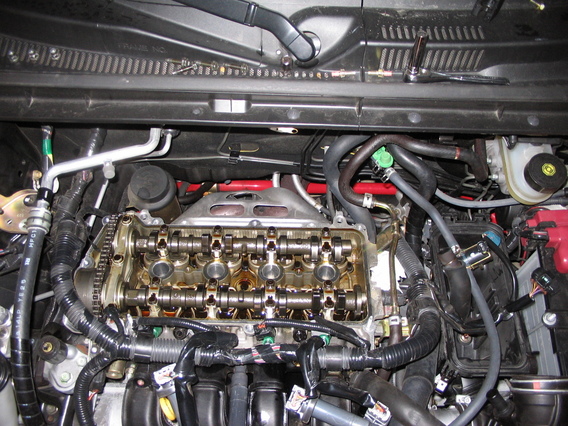

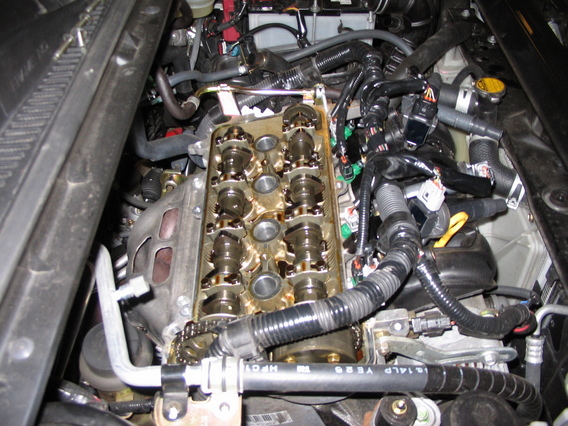

Sadly I don't remember who I grabbed these from, so I can't credit the originator, but these are the only ones I've seen:



is that why i lost my connection to that camera....

thanks Brad, now what am i gonna do for ideas???

and those pics are from Edwin (unlmtdndeavor)
he was doing the fuel rail at that time.


you can also check out this thread...
https://www.scionlife.com/forums/viewtopic.php?t=67782
not imbedded pic but there are links to some...



ah gotta love the sight of worryless timing chains. i love seeing that. i remember my engine being alot less yellow . lol.



Whats that Red bar behind the Exhaust Manifold?



im scared to take off the engine cover

intake was a big deal for me. im sorry i cant help ya out here. the only thing ive seen was the pic listed above



i just wanted to see how the 1NZ looks like on the inside. like the tops of the pistons to see if they are dish or dome etc... i figured there would not be a lot of pics out right now of the motor. probably because its still new



that red bar is the Hotchkis sway bar.....



LOL, Wow that thing goes WAY up there.



i dont think that bar is on an xB? is it on an echo or something?



that red bar is the hotchkis front anit-sway bar.
it is on an xB. i have one too.



TBone, it's an aftermarket item added to the front suspension of an xB...



little correction here Tom...

the xB already has a front anti-sway bar.
so this is not added, but a replacemnet of the factory one.

symantics i know. i just don't want poeple to think there is no front bar there at all.



Sorry, that was a bit misleading the way I said it, Super D.

Yes, there is a front bar on the factory suspension, but when it's removed and the Hotchkiss added the Hotchkiss is more noticible.

Must be the red paint. :D



so is the valve cover out for chroming not the plastic valve cover cover



go read the whole thread...the answer is there...
pay close attention to my post right after the pics...


Tom, you're right. the red paint does not hide well in the shadows like the stoker...
