Default DIY Engine Block Heater 2nd gen xB

This is a DIY project. You assume all risk for properly completing this project.
Very easy project. Longest part was finding the hole and taking all the pics.

Start with your block heater. Here is my part # for a 2011 xB.

Name:  IMAG0693.jpg
Views: 607
Size:  66.4 KB

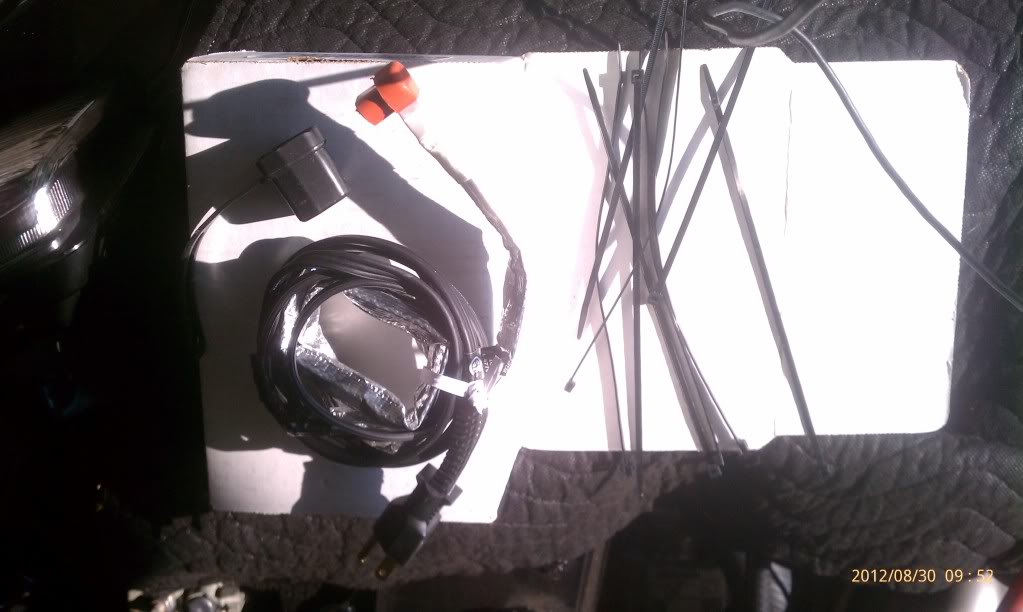

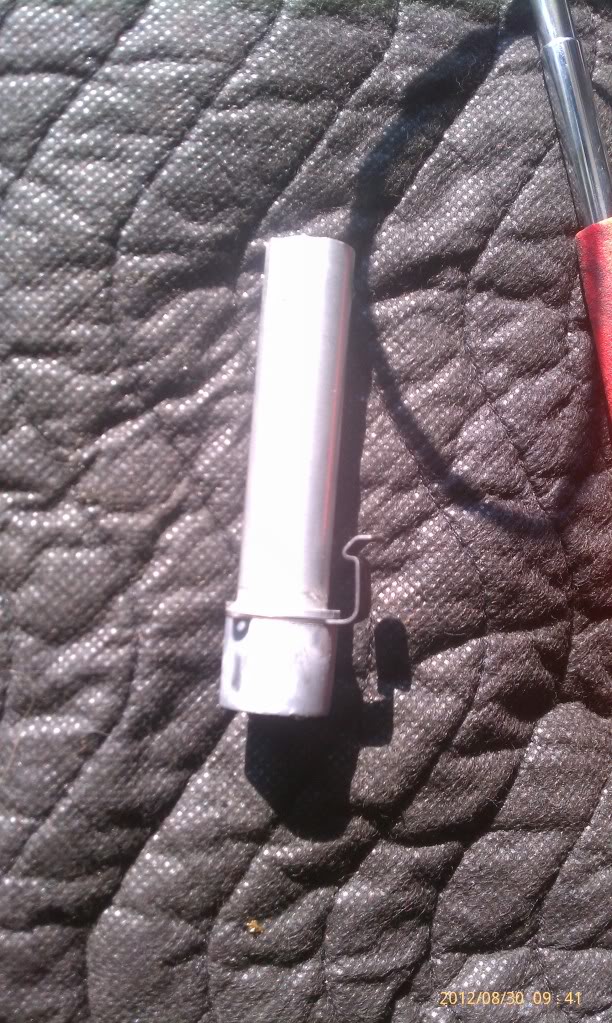

Here is what you get:

Name:  IMAG0682.jpg
Views: 619
Size:  178.4 KB
Name:  IMAG0688.jpg
Views: 600
Size:  73.0 KB

Remove air cleaner. I also removed the plastic cover off the top of engine.

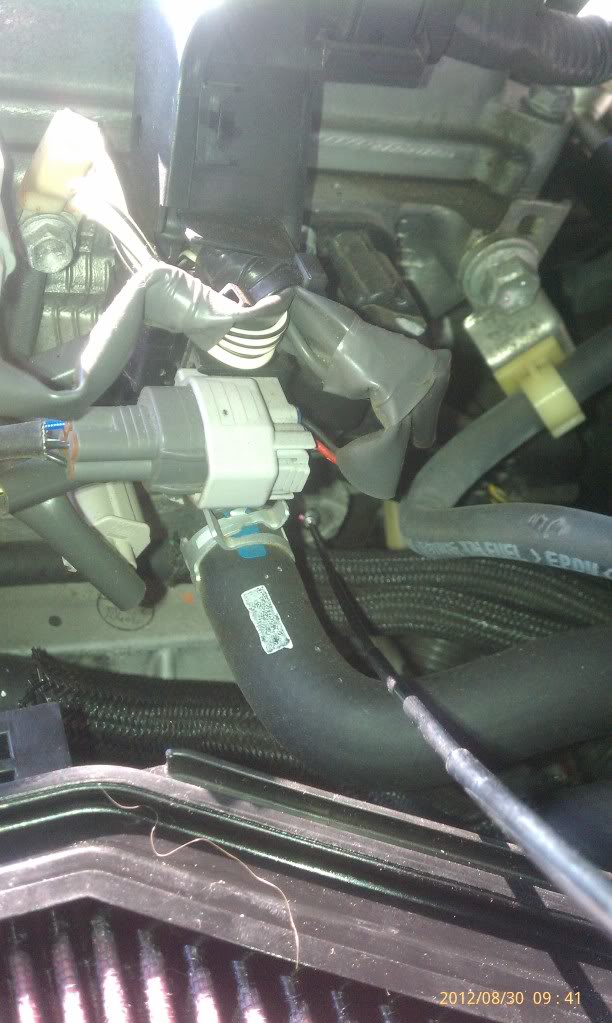

In this pic there is a metal pointer at the base of the hole for the heater. It is on drivers side near back of engine:

Name:  IMAG0681.jpg
Views: 829
Size:  94.1 KB
Name:  IMAG0680.jpg
Views: 935
Size:  91.7 KB

The heater came with a little tube of grease, apply to the heater and slowly press into hole.

Name:  IMAG0687.jpg
Views: 669
Size:  136.0 KB

My finger is now pointing at the installed heater, clip towards rear of car.

Name:  IMAG0686.jpg
Views: 572
Size:  53.2 KB

Route power line away from moving parts. I zipped it to existing lines. Reinstall air cleaner and whatever else you took off.

Name:  IMAG0691.jpg
Views: 629
Size:  76.2 KB
Name:  IMAG0689.jpg
Views: 626
Size:  104.2 KB

I may route the plug line down to the fake vent in the bumper, Idk.
Ready for winter.
