hey there most of you know I have been piecing together a V2.1 Turbo kit, well its almost done except I have a few things to purchase next month to finish it. I can install the whole kit with out a problem but when it comes to all the electronics I needa wire up I am going to need some help. This is what I have going on the car:
V2.1 TT manifold
tt down pipe /w Spipe
t3/to4e 60a/r cold .82a/r hotside
dezod oil lines
dezod intercooler pipes
TT intercooler
HKS SSQV
(still need injectors and wastegate )

for the electronics i have :
greddy ultimate/ w pnp harness
greddy profec boost controller
greddy turbo timer
greddy map sensor ( i think)
greddy boost preasure sensor
phantom boost
phantom oil temp
phantom oil preassure
aem eugo wideband ( came with yellow clip that goes to ecu Correct ? )

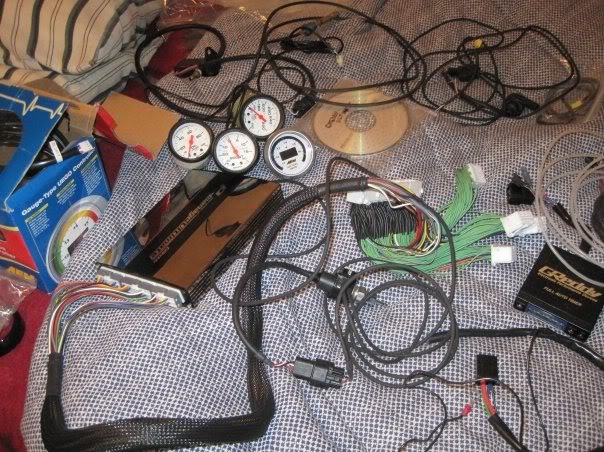

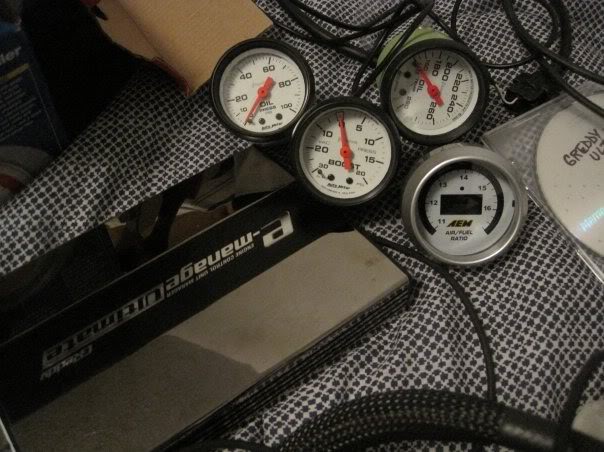

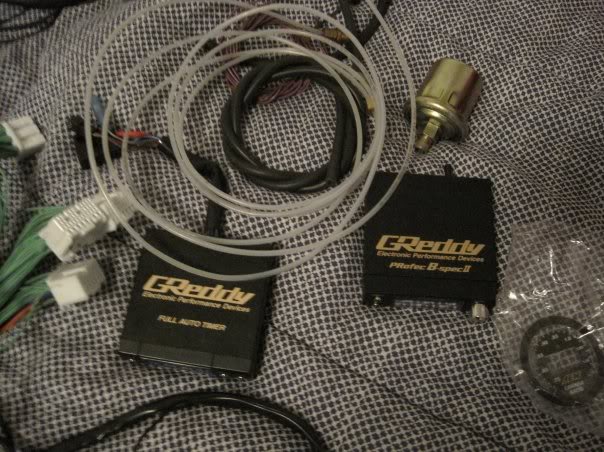

here are some pics of what im talking bout. can anyone point me in the right direction to install these items ? or can someone give me a quick over view ?



thanks



idk what your talking about "yellow clip to ecu"....

the uego has two white connectors that plug into the back of the guage. one set will go from gauge to sensor, the other is power/data-logging wires.

(trying to do this from memory so double check with diagram)
red=12volt power (you want a switched + source)
black=ground
white=0-5volt (for data-logging)
blue=hypertermenel (another way to data-log)



I dont know if ur familiar with the ultimate but it has to plug ins for yellow clips, one goes to my preasure sensor im sure and the other one im guessing would be the one that I need to wire my aem to. Its just a clip with two wires I belive. I can take more detailed pics. will all of the vacuum stuff hook up to a vacuum block ?



ptuning sell there pnp harness for the turbo timer if you dont want to cut you ignition wires and all. as for the rest i forgot how i did mines.



ya I was planning on purchasin that one its only 20 bucks.
I am having trouble installing the support tool disk for the ultimate it keeps telling me access is denied anyone know how to install this thing? theres a bunch of files in it. nothing happens
what bout oil pres and oil temp gauges ?



lol the ultimate program only works for windows xp computers.



so im taking it wont work for windows xp proffesional or office something around those lines. but it wont load up or anything,



Check your USB drivers. There is a firmware and software update for the Ultimate to cover this



^ no clue what ur tallking bout there paul.



http://www.greddy.com/news/?id=9

update file:

http://www.trust-power.com/03electri...fmanage102.EXE



ill load up more pics later on today, see if u guys can help me out with missin parts.



ok I might install the turbo timer and boost controller this weekend so when I do install that part will simply be done and just hook up a few things. I have a question on the 4mm vacuum hose that goes from the boost controller and then splits to two, one it says to hook it up to the FPR and the other one to the compressor side of the turbo ? ok well do I hook that side up to the vacuum block ? and what bout the source that runs to the fpr ? what do i do there.
