Default DIY-Crankshaft Position Sensor

I consolidated my experience changing a CPS on a 2004 xB 1.5l 1NZ-FE:

Last edited by MR_LUV; 01-28-2018 at 12:23 AM. Reason: becomes Sticky
Esbe is offline
Reply With Quote
Old 01-28-2018, 12:26 AM
  #2
Administrator
10 Year Member
5 Year Member
SL Member
Administrator


MR_LUV's Avatar

Join Date: Dec 2007
Location: State of Confusion: CA
Posts: 1,750
Thumbs up

Excellent DIY! Wonderful Illustrations!

Becomes a Sticky
MR_LUV is offline
Reply With Quote
Old 09-09-2018, 10:07 PM
  #3
Member
SL Member

Join Date: Jan 2015
Posts: 20
Default

Why did you replace your sensor? Mine is all gunked up with oil and I have P0012 error.

https://i.imgur.com/pt6KAsV.jpg
https://i.imgur.com/qvMuWLV.jpg (upside down close up)

Last edited by MR_LUV; 09-10-2018 at 12:00 AM.
caliscion83 is offline
Reply With Quote
Old 09-10-2018, 12:45 AM
  #4
Member
SL Member

Join Date: Jan 2015
Posts: 20
Default

Also do you have to drain the oil before replacing?
caliscion83 is offline
Reply With Quote
Old 09-10-2018, 03:46 AM
  #5
Member
SL Member

Join Date: Jan 2015
Posts: 20
Default

Here is the part in question. I cleaned it off a bit and got a better picture. Is that the crankshaft position sensor. The harness also doesn't look that good.



Last edited by caliscion83; 09-10-2018 at 03:56 AM.
caliscion83 is offline
Reply With Quote
Old 09-10-2018, 02:42 PM
  #6
Junior Member
SL Member
Thread Starter


Join Date: Nov 2016
Posts: 10
Default from Esbe

You are correct that that is the crankshaft Position Sensor. You do not have to drain the oil to replace this.
I did not have a code but I bought the vehicle used with 130K and did not know how hard that little motor was made to work. I did preventative maintenance and among other parts I changed this and the VVT solenoid which could be your code source. The VVT solenoid will cost about $60 at this time, no need to change the oil, and is super easy to change.

-- Reactor - Senior Member says "P0012 means: Camshaft Position "A" - Timing Over-Retarded. This code is not an indication of a bad camshaft position sensor. For that we have P0340"
-- Here's your P0012 code explained and it mentions the VVT (or VCT) solenoid (code P0010) as a probable cause:
https://www.yourmechanic.com/article...by-jay-safford

If you decide to change the VVT solenoid,
-- This guy does an excellent job of showing you how to change the VVT solenoid with lots of pictures:
http://www.clubxb.com/forums/scion-x...ml#post1127425

After you remove the plastic top engine cover, here's my note sheet:

Last edited by Esbe; 09-10-2018 at 03:22 PM. Reason: term clarification
Esbe is offline
Reply With Quote
Old 09-10-2018, 03:01 PM
  #7
Member
SL Member

Join Date: Jan 2015
Posts: 20
Default

Thanks a lot! I already did the OCV sensor swap so VVT and CPS will be next on my list.

Do you have part numbers available?
caliscion83 is offline
Reply With Quote
Old 09-10-2018, 03:21 PM
  #8
Junior Member
SL Member
Thread Starter


Join Date: Nov 2016
Posts: 10
Default

I'm sorry but the part costs twice what I mentioned previously. I'll edit the post.

Here's the part I installed a year ago and since then no issues with the part:
STANDARD MOTOR PRODUCTS VVT162 {#1533021010, 1533021011, 1533021020} (Standard Replacement

Here's where I got it from:
https://www.rockauto.com/en/parts/st...actuator,12910

here's a general description of that product:
http://eaccess.smpcorp.com/eCatalogs...16_JTF_VVT.pdf
Esbe is offline
Reply With Quote
Old 09-10-2018, 03:48 PM
  #9
Member
SL Member

Join Date: Jan 2015
Posts: 20
Default

No worries, Iíll probably pick it up on eBay which their sales lately I should get a good discount. Do you also have the crankshaft position sensor part # handy?
caliscion83 is offline
Reply With Quote
Old 09-10-2018, 04:41 PM
  #10
Junior Member
SL Member
Thread Starter


Join Date: Nov 2016
Posts: 10
Default Crank Positoin Sensor Part #

Beck Arnley 180-0307 Crank Angle Sensor

I installed this a year ago and have had no issues with this part.

Let us know how it goes with your repair.
Esbe is offline
Reply With Quote
Old 09-10-2018, 04:55 PM
  #11
Junior Member
SL Member
Thread Starter


Join Date: Nov 2016
Posts: 10
Default

I was looking over the posts and if you replaced the OCV (oil control valve) you've replaced the VVT solenoid - same part different names.
In the second video at 4:20 take note of the mention of an 8mm hex bolt filter beneath the Oil Control ValveToyota 15678-21010 Oil Control Valve Filter

https://parts.toyota.com/a/Scion__XB...04.html#15678A
or
Amazon Amazon








and

Last edited by Esbe; 09-10-2018 at 05:11 PM.
Esbe is offline
Reply With Quote
Old 09-10-2018, 05:10 PM
  #12
Member
SL Member

Join Date: Jan 2015
Posts: 20
Default

Originally Posted by Esbe View Post
I was looking over the posts and if you replaced the OCV (oil control valve) you've replaced the VVT solenoid - same part different names.
This will be the worst case for the P0012 :
https://www.youtube.com/watch?v=vyp5_2i_3cA
and
https://www.youtube.com/watch?v=RrYbow6O9zI
Yes, I already changed that and cleaned the filter too. No go. I noticed the gunky crankshaft position sensor so I'll do that and see if that makes a difference. Otherwise, I have a case open with Toyota about the P0012 but that would require me to go to the dealership for an inspection.

Thanks for sharing the part number. I ordered it already and will hopefully have it replaced later this week.

Do you know anything about the Crankshaft Position Sensor wiring? Should I replace that wire or just clean it off with some simple green?

Last edited by caliscion83; 09-10-2018 at 06:16 PM.
caliscion83 is offline
Reply With Quote
Old 09-10-2018, 06:03 PM
  #13
Moderator
10 Year Member
5 Year Member
SL Member
Moderator

Join Date: Aug 2006
Posts: 296
Default

Originally Posted by Esbe View Post
After you remove the plastic top engine cover, here's my note sheet:
Once again, excellent illustration and thanks for taking the time to do this.
MileHightC is offline
Reply With Quote
Old 09-11-2018, 12:56 AM
  #14
Member
SL Member

Join Date: Jan 2015
Posts: 20
Default

Originally Posted by Esbe View Post

Beck Arnley 180-0307 Crank Angle Sensor

I installed this a year ago and have had no issues with this part.

Let us know how it goes with your repair.
I'm not sure if it's the angle but the OEM crank angle sensor on my picture looks like its connected to a large nut. Did yours look like that?
caliscion83 is offline
Reply With Quote
Old 09-14-2018, 04:36 AM
  #15
Member
SL Member

Join Date: Jan 2015
Posts: 20
Default

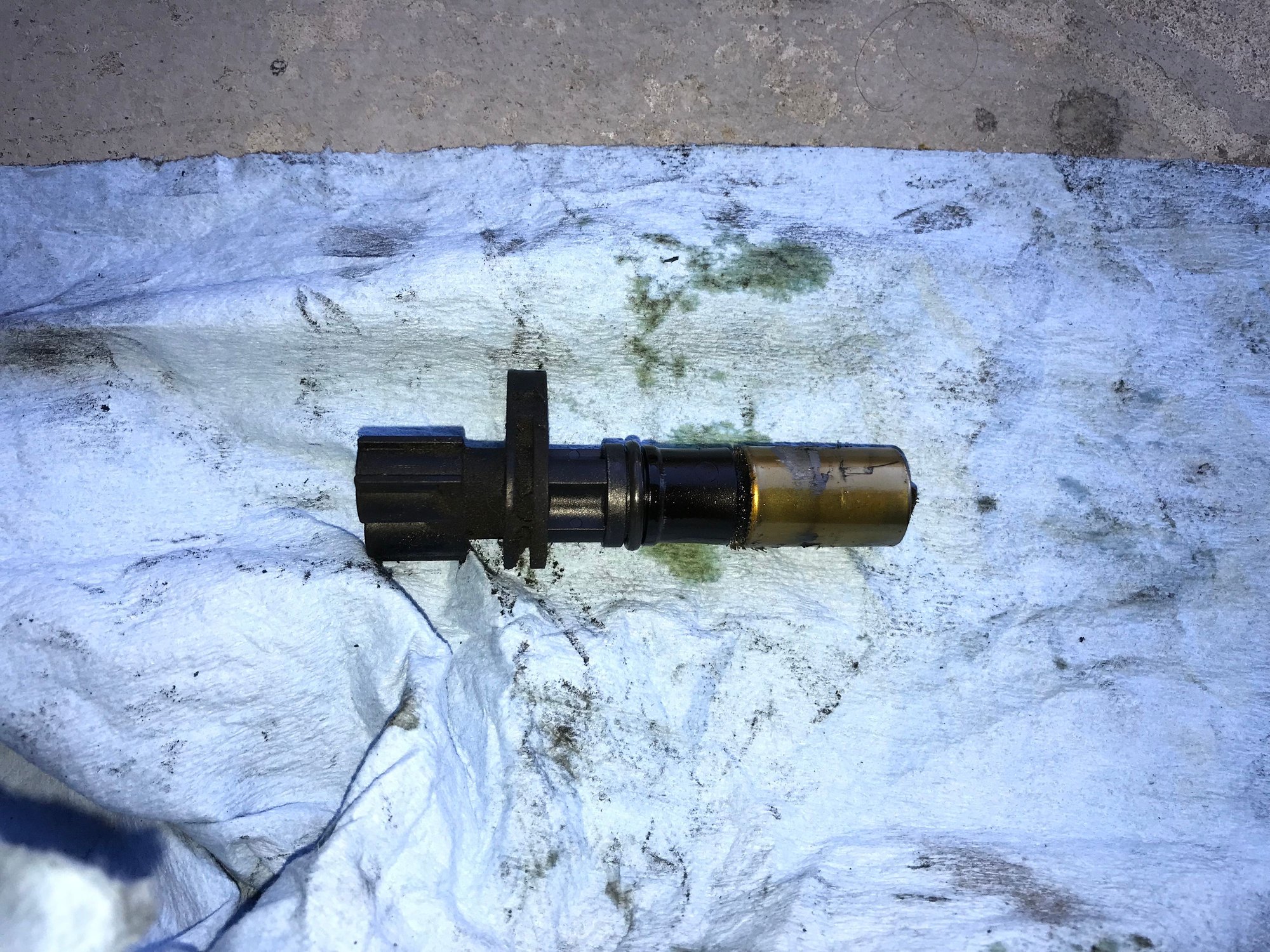

Okay. The part posted a picture of was not the Crankshaft Position Sensor, and I still don't know what it is. However, I did replace my crankshaft position sensor since I was there. Good thing I did, here's what it looked like:

I cleaned up the other sensor from the outside. I couldn't even get the locking mechanism to budge because the wiring is so snug. I'm still trying to figure out what this is and if it's easily replaceable:
