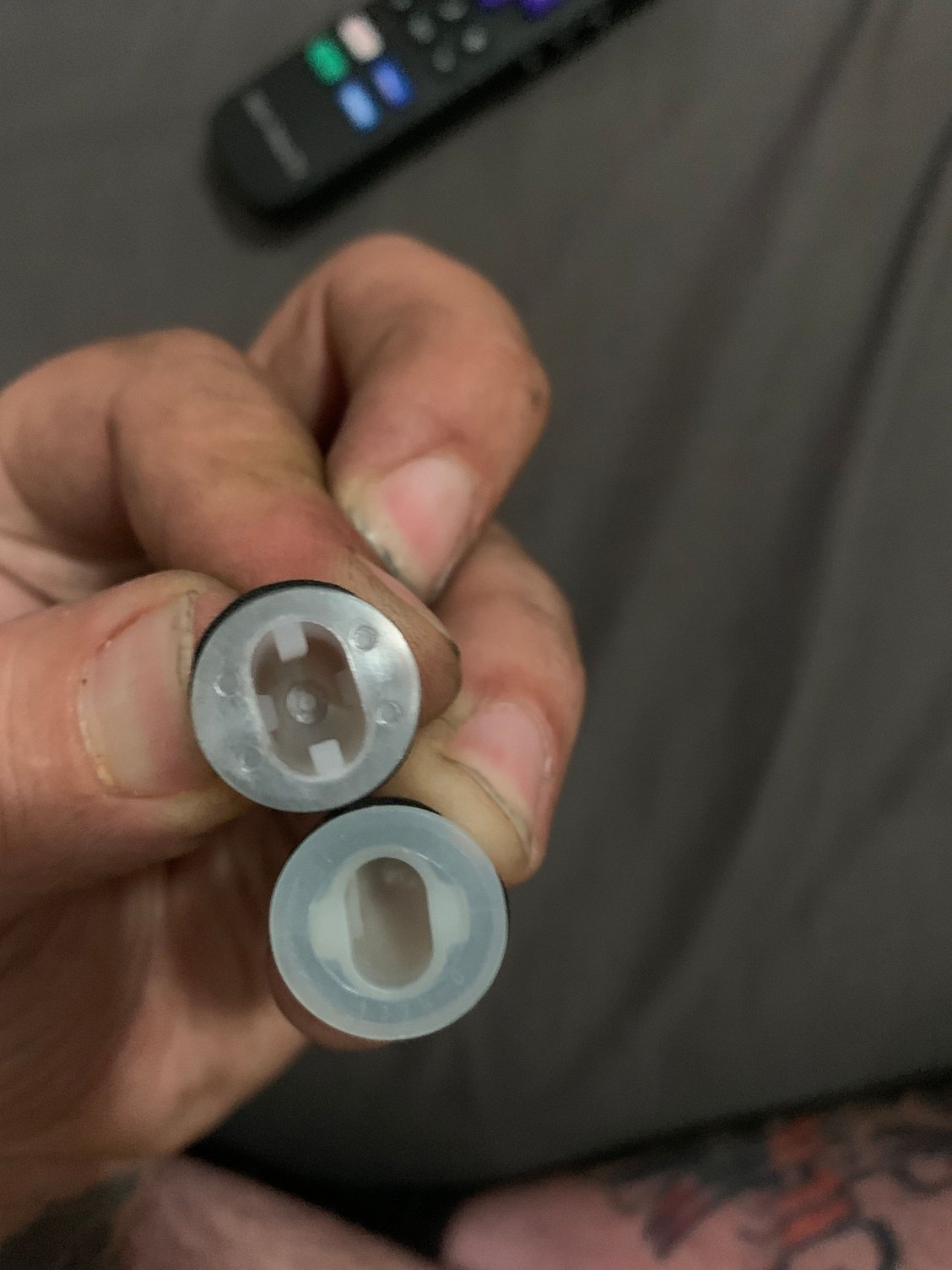

So, the top plastic grommet is the one I sourced and the bottom on is the one that came in my kit. There is a slight diameter variance, by t they both literally fit on to the lower mounting tab of the spiller the same way. Also, the top one seems to make sure the pin on the back of the spoiler stays centered in the grommets.
Last edited by Low_Kei; 05-14-2021 at 08:31 PM.
#23
So, the top plastic grommet is the one I sourced and the bottom on is the one that came in my kit. There is a slight diameter variance, by t they both literally fit on to the lower mounting tab of the spiller the same way. Also, the rope one seems to make sure the pin on the back of the spoiler stays centered in the grommets.
#24
Senior Member
SL Member
Thread Starter
Join Date: Apr 2021
Location: Redlands, California
Posts: 125
Now to wait for the well nuts and bolts to get here.
Last edited by Low_Kei; 05-14-2021 at 08:32 PM.
#25
Senior Member
SL Member
Thread Starter
Join Date: Apr 2021
Location: Redlands, California
Posts: 125
So the well nuts that I sourced came in. Same diameter and same threading on the insert. Tested with on of the bolts that came in my OEM mounting kit. The threads match up. The only variance in the thickness of the top of the well nuts that I sourced (The rubber is thicker to make up for the lack of the metal top insert that comes on the OEM one), and the sourced ones are slightly longer, but that’s fine. The bolts I sourced are coming in today as well and I will test for those with the sourced well nuts. The ones I sourced have a flared base to compensate for the lack of washer that comes with the OEM bolts. Same grade hardware though. I’ll keep everyone updated.
#26
Senior Member
SL Member
Thread Starter
Join Date: Apr 2021
Location: Redlands, California
Posts: 125
Just got the bolts and test fitted. Perfect fit! Now to make a template for where to drill the holes and what size the holes need to be drilled at and I’ll go live with the kits.
#27
#28
Senior Member
SL Member
Thread Starter
Join Date: Apr 2021
Location: Redlands, California
Posts: 125
Update. Have the original templates on the way. Going to make a slight adjustment to the template to accommodate the two millimeter difference in outer diameter between the OEM lower grommet and the one I sourced, then make copies for each set, then I’ll go live with the sale of the kits.
#30
Senior Member
SL Member
Thread Starter
Join Date: Apr 2021
Location: Redlands, California
Posts: 125
#32
Senior Member
SL Member
Thread Starter
Join Date: Apr 2021
Location: Redlands, California
Posts: 125
OEM Spoiler Mounting Kits are Finished. PM me and I’ll also be posting in the Classif
Update time: OEM Spoiler Mounting Kits are finished. PM me and I’ll also be posting in the Classifieds:
xB: Rear Spoiler Mounting hardware Kits with Installation Guide / Templates
Low_Kei
___
xB: Rear Spoiler Mounting hardware Kits with Installation Guide / Templates
Low_Kei
___
Last edited by MR_LUV; 06-02-2021 at 11:35 AM. Reason: Insert PPC Link
#35
Senior Member
SL Member
Thread Starter
Join Date: Apr 2021
Location: Redlands, California
Posts: 125
Wanted to update people on the kits I made. A customer finally sent me two pics after he used my kit to do a spoiler install
Last edited by MR_LUV; 07-09-2021 at 09:13 AM. Reason: spacing
#36
Wish I could find a nice Black or Blue OEM. Those eBay ones suck and only have the lower mounting points. Sent the POS back and got refund. Online salvage ones are stupid. New crazy
dealership price so no go on that either. No prospects in my local Pick ur Part places. Closest was $100 Brown OEM which would become 150+ after scoring paint and clear so I lazed out on that too.
___
dealership price so no go on that either. No prospects in my local Pick ur Part places. Closest was $100 Brown OEM which would become 150+ after scoring paint and clear so I lazed out on that too.
___
Last edited by MR_LUV; 07-10-2021 at 08:03 PM.
#37
Senior Member
SL Member
Thread Starter
Join Date: Apr 2021
Location: Redlands, California
Posts: 125
Wish I could find a nice Black or Blue OEM. Those eBay ones suck and only have the lower mounting points. Sent the POS back and got refund. Online salvage ones are stupid. New crazy
dealership price so no go on that either. No prospects in my local Pick ur Part places. Closest was $100 Brown OEM which would become 150+ after scoring paint and clear so I lazed out on that too.
___
dealership price so no go on that either. No prospects in my local Pick ur Part places. Closest was $100 Brown OEM which would become 150+ after scoring paint and clear so I lazed out on that too.
___
#39
Senior Member
SL Member
Thread Starter
Join Date: Apr 2021
Location: Redlands, California
Posts: 125
Finally mounted my junkyard fin OEM spoiler. Used one of the mounting kits. Taped down the template, used a metal die to tap and mark the pilot holes. Drilled the pilot holes then used a step bit to get to the size needed so the well nuts
and grommets fit snug Installed the well nuts first, then tapped the grommets in place. Then popped the two lower prongs in to the grommets, and bolted the spoiler to the well nuts. Came out great and took me about 20 minutes give or take.
and grommets fit snug Installed the well nuts first, then tapped the grommets in place. Then popped the two lower prongs in to the grommets, and bolted the spoiler to the well nuts. Came out great and took me about 20 minutes give or take.
Last edited by MR_LUV; 01-11-2022 at 12:18 AM.
#40
Senior Member
SL Member
Thread Starter
Join Date: Apr 2021
Location: Redlands, California
Posts: 125
Updating this post. I still have plenty of kits left. Seen people on here and in Facebook groups and other forums looking for spoiler instillation kits and templates for OEM spoilers… I have them available, just PM me.
