Car Audio Setup Pics required
#101
2011 Scion xB RS8.0 sound system and more
Ok, here is the gear, I don't mess around with crap:
Deck

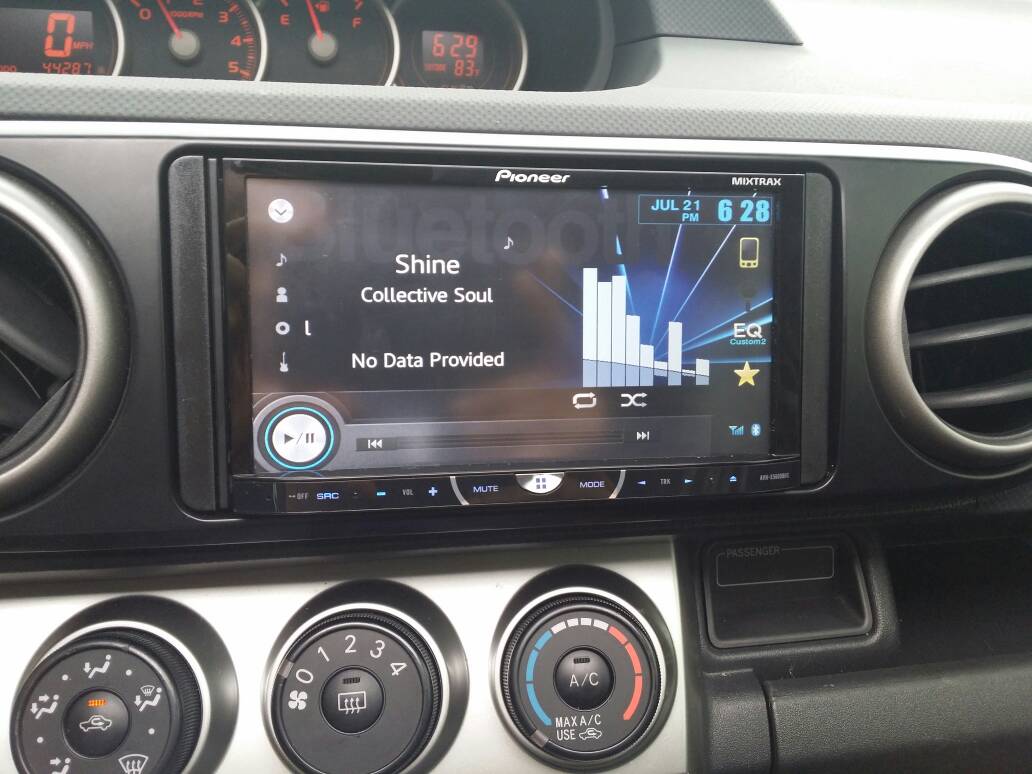

Pioneer AVHP3200BT with 4 Volt preouts
Processor
AudioControl 6XS
Power Cables
0 gauge Monster
Audio Cables
Ixos (They make JL Audio's and Xtant)
Amps
A/D/S PH15 6 channel amp
4 channels to the Front doors; I.E. Bi-amp
2 channels to the Rear
Boston Acoustics GT2300
1400 watts RMS to 1 channel for sub
Subwoofer
Kicker S12L72 12" Solo-Baric Dual 2 ohm
Front stage
Vibe Audio Space 3D
1 7/8" Aluminum Midrange
1 3/4" Silk Dome Tweeter
6.5" Pioneer Midbass Driver
Rear Stage
OEM 2 way Components
These are in rear fill for SQ events
Power Upgrades
Big 3 upgrade under hood
Monster 1 farad cap for noise control on A/D/S amp
Shuriken SK-BT35 Car Audio Power Cell 950 C.A. 35 Amp-Hour
200 amp Circuit breaker
250 amp secondary Fuse at SK-BT35
And Now some pix:
Below you can see I'm still building the upper door pods.
Deck
Pioneer AVHP3200BT with 4 Volt preouts
Processor
AudioControl 6XS
Power Cables
0 gauge Monster
Audio Cables
Ixos (They make JL Audio's and Xtant)
Amps
A/D/S PH15 6 channel amp
4 channels to the Front doors; I.E. Bi-amp
2 channels to the Rear
Boston Acoustics GT2300
1400 watts RMS to 1 channel for sub
Subwoofer
Kicker S12L72 12" Solo-Baric Dual 2 ohm
Front stage
Vibe Audio Space 3D
1 7/8" Aluminum Midrange
1 3/4" Silk Dome Tweeter
6.5" Pioneer Midbass Driver
Rear Stage
OEM 2 way Components
These are in rear fill for SQ events
Power Upgrades
Big 3 upgrade under hood
Monster 1 farad cap for noise control on A/D/S amp
Shuriken SK-BT35 Car Audio Power Cell 950 C.A. 35 Amp-Hour
200 amp Circuit breaker
250 amp secondary Fuse at SK-BT35
And Now some pix:
Below you can see I'm still building the upper door pods.
#103
http://rivermm.tripod.com/2002_hyudai_elantra/
#107
this is my current setup, im sure I will here some crap but its mine. I had 2 12's, then 1 12", then 1 10" and now Im back to same thing I ran in my expedtion, 2 FI BL 18's currently running off 1 audioque 2200d, soon to be a sundown audio 3500d and sundown audio 125.4. Kenwood excelon 996 radio, all knu concepts 0 gauge, xs Power d3100 rear battery with custom terminals. Have some Focal components for doors and a pillars going in hopefully this week if I am off work some. 2 boxes of Stinger roadkill extreme on roof and doors. Viper alarm/remote start. Box is a tline wall designed to play between 28-60hz built just for a daily driver. Has new trim panels built now, just needing to get out and finish covering them and putting them in car when I install all components. Box was built some outside, then finished and doubled with 3/4" birch inside the car. Anyway some pics of beginning to currently and still in progress:
a short video of just when was getting it tuned off only 1000 watts to each sub to break them in a little
Hopefully I will have other amps in, all components, and finish trim panels in a couple weeks.
a short video of just when was getting it tuned off only 1000 watts to each sub to break them in a little
Hopefully I will have other amps in, all components, and finish trim panels in a couple weeks.
#111
My ICE Setup
I have Air Bags And Needed To keep My Spare, The Air Tank & 2 Compressors Are Mounted Underneath, And The Whole ICE System Is Mounted On The Sub Box And Folds Forward To Get To The Spare.
2 10"Kicker Comp 10 Subs
2 6X9 Kicker Speakers Mounted In C Pillars
Proview 32" LED TV
Play Station 3
400wt Inverter
2 10"Kicker Comp 10 Subs
2 6X9 Kicker Speakers Mounted In C Pillars
Proview 32" LED TV
Play Station 3
400wt Inverter
#118
Well, I have been building my system slowly. Honestly this is the first time I have spent real money for my system to achieve the results I want.
Head unit is the same it has been since I bought the first SWXB:
Premier AVIC-F90BT
Amps:
Zapco ST4X - Mids/Tweets
Zapco ST1650 XM - Subs
Speakers:
Morel - 6.5 inch Mids
Morel - Virtus MW4 4" midrange (mounting soon in the A-pillars)
SEAS Prestige - 1 inch Dome Tweets
PSI dual 2ohm 8" subs in a box that's been redesigned a second time into the cargo cover that came with the RS6 XBs. It took time to decided on type of covering, carpet vs. paint vs. carbon fiber vs. vinyl wrap. In the end due to the weird shapes I had to deal with it was painting. Marblized candy red, to kind of match the engine covers I painted several years ago.
Here is the final pic of the finished sub box. Sorry Big Pic
Head unit is the same it has been since I bought the first SWXB:
Premier AVIC-F90BT
Amps:
Zapco ST4X - Mids/Tweets
Zapco ST1650 XM - Subs
Speakers:
Morel - 6.5 inch Mids
Morel - Virtus MW4 4" midrange (mounting soon in the A-pillars)
SEAS Prestige - 1 inch Dome Tweets
PSI dual 2ohm 8" subs in a box that's been redesigned a second time into the cargo cover that came with the RS6 XBs. It took time to decided on type of covering, carpet vs. paint vs. carbon fiber vs. vinyl wrap. In the end due to the weird shapes I had to deal with it was painting. Marblized candy red, to kind of match the engine covers I painted several years ago.
Here is the final pic of the finished sub box. Sorry Big Pic
