DISCLAIMER: MOD AT YOUR OWN RISK - I am not responsible for you doing this incorrectly and damaging your car and/or yourself. This is what worked for me and if it doesn't for you, oh well.

Since the pictures on the old thread mysteriously disappeared and a few people still need this info, I figured I'd post up a 2.0 version of the thread. So let's get crackin -

NOTE - This is meant to work with fog lights that are installed from the factory/dealer and may or may not work with aftermarket fog light kits you install yourself.

Tools you'll need
- 10mm socket
- Wire strippers
- About 3ft of wire (14g recommended)

Not necessary, but good to have -
- Wire crimpers
- Wire butt connectors
- Female spade connectors
- Wire taps
- Electrical tape

First off, get in the car and remove your radio bezel by pulling on the edges until it pops off, unplug the plug behind the clock and set the panel to the side. Next remove the radio by unscrewing the 4 10mm bolts on all 4 corners of the radio. Pull it out, unplug all connectors and set it aside.

Under where the radio was There is a bracket holding the relay for the fog lights, unscrew the 10mm bolt holding it in place and pull it up so you can access the wires.



Sorry about the cluttery wiring but you get the idea.

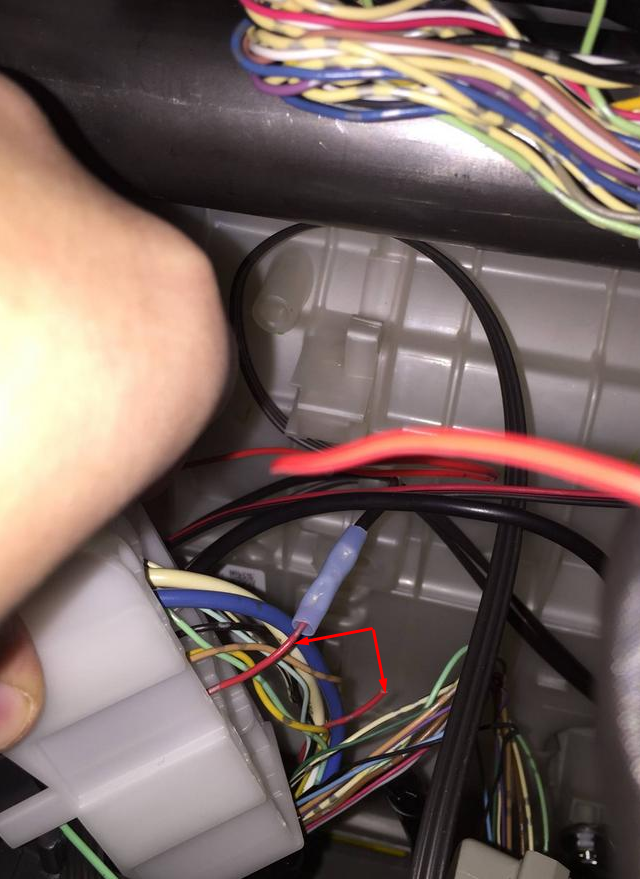

Locate the 18g RED wire and cut it with adequate room to strip. Strip and extend the part of the wire the is coming from the relay. The other half can be left there.

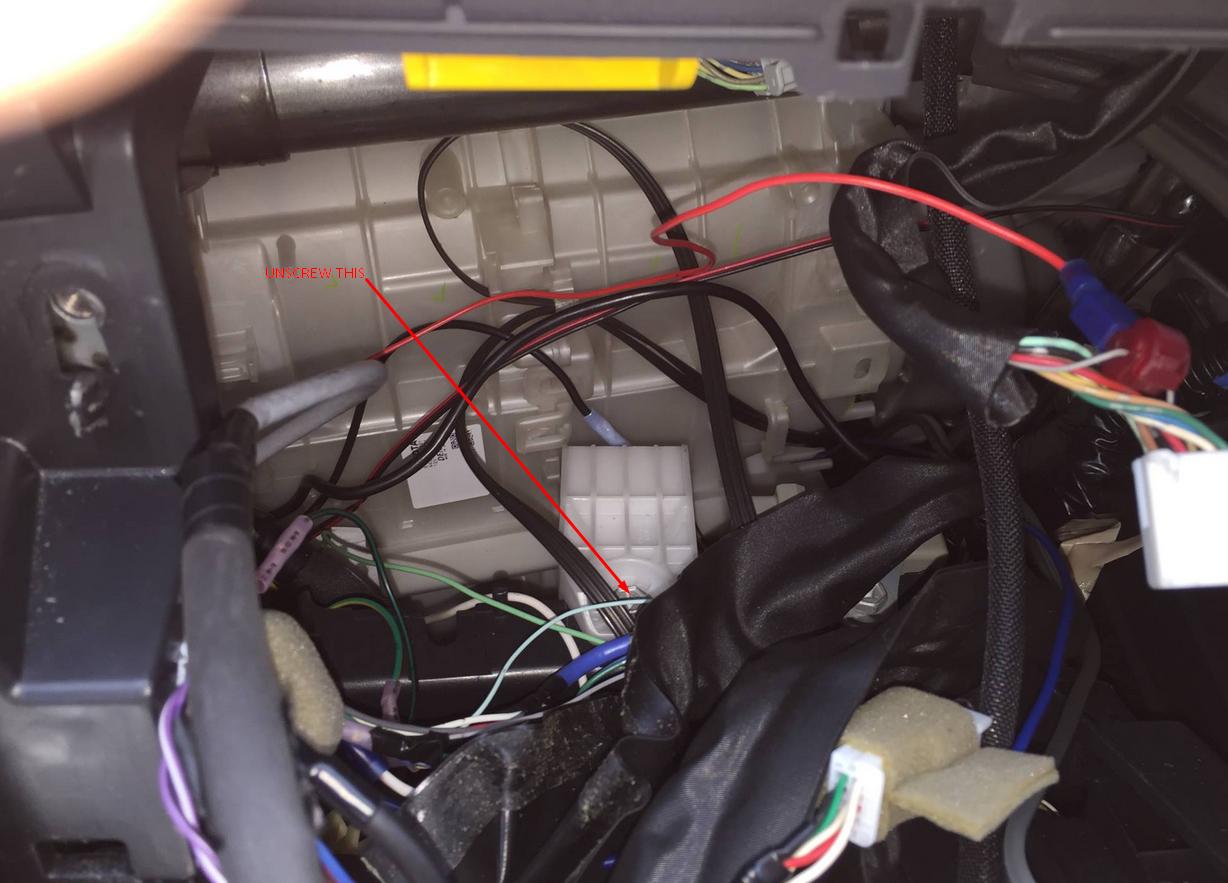

Run the wire under the dash so it can reach to the fuse box under the driver's side of the dash.

Remove the panel covering the fuse box by pulling on any side until it pops off.

Depending on how you want them to work, you will have to locate a wire for power.

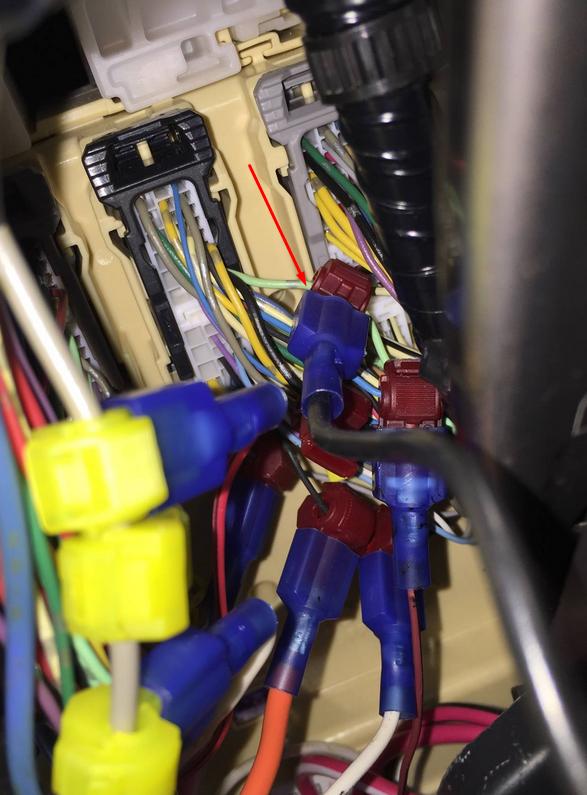

If you want them to turn on with the parking lights, locate the 18g LIGHT GREEN wire coming out of the white large plug from the fuse box,
tap into this wire and connect the wire you ran earlier to send power to the fog lights via your parking lights.

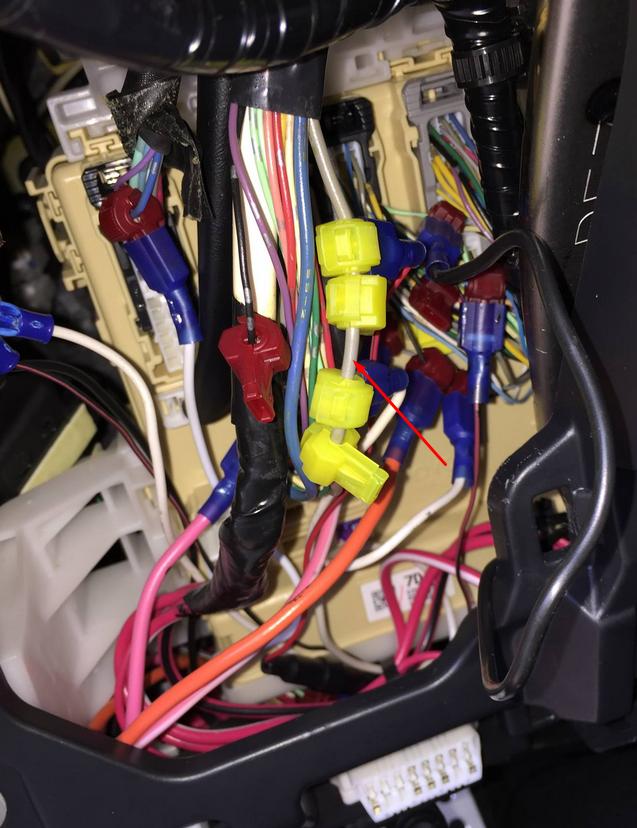

If you want them to turn on with ignition (as in they will turn on any time the car is on so long the button is activated), locate the 14g GREY wire in the loom directly in front.
(You may have to cut through tape to access it), tap into this wire and connect the wire you ran earlier to send power to the fog lights via ignition.



Everything is now connected so you can put back all panels and your fog lights are now independent!

I hope this helped!
SkillFreeJake is offline
Old 01-16-2015, 05:06 PM
  #2
DaYUUM/Scion Evolution
5 Year Member
SL Member


KidJustin's Avatar

Join Date: Jan 2011
Location: Southern California
Posts: 3,542
Default

AWESOME! STICK'D
KidJustin is offline
Old 01-16-2015, 11:03 PM
  #3
Junior Member


TRDmAsTa19's Avatar

Join Date: Feb 2013
Location: Charleston, Wv
Posts: 12
Default

Did the light green wire version "fogs on with parking lights" Here's my problem.. Did everything right but now my fogs do not work also when I turn my headlights on the lights in my head unit fade completely out and as soon as I turn my headlights off the head unit lights come back on lmao help..
TRDmAsTa19 is offline
Old 01-17-2015, 01:42 PM
  #4
Member
SL Member

Join Date: May 2012
Location: Hybla Valley, VA
Posts: 56
Default

This is what happened last time I did it. The heat/ac ***** would not light up. After a few days it started to smell like burned plastic. The wires were melting.
kada90 is offline
Old 01-17-2015, 08:51 PM
  #5
Member
SL Member

Xversa's Avatar

Join Date: May 2014
Location: Arizona
Posts: 92
Default

Why not just run your fog wiring independently from the lights. Control them with a separate switch
Credit to: SoKrispy


Xversa is offline
Old 01-25-2015, 01:39 AM
  #6
Senior Member
5 Year Member
SL Member
Thread Starter

SkillFreeJake's Avatar

Join Date: Jan 2013
Location: Texas
Posts: 304
Default

Originally Posted by Xversa View Post
Why not just run your fog wiring independently from the lights. Control them with a separate switch
Credit to: SoKrispy


Did you even read the post? *facepalm*
SkillFreeJake is offline
Old 01-25-2015, 05:49 PM
  #7
Member
SL Member

Xversa's Avatar

Join Date: May 2014
Location: Arizona
Posts: 92
Default

IMHO Its a lot easer, and SAFER to run separate wiring and not run the risk of damaging your car's electrical system.
This will also work with factory installed lights. You just bypass the factory wiring.
Xversa is offline
Old 01-25-2015, 07:19 PM
  #8
Senior Member
5 Year Member
SL Member
Thread Starter

SkillFreeJake's Avatar

Join Date: Jan 2013
Location: Texas
Posts: 304
Default

Originally Posted by Xversa View Post
IMHO Its a lot easer, and SAFER to run separate wiring and not run the risk of damaging your car's electrical system.
This will also work with factory installed lights. You just bypass the factory wiring.
Like I said in the post this is what worked for me. I just reposted the instructions from the old thread where the pics disappeared. If you want the make your own thread on how you do it, be my guest.
SkillFreeJake is offline
Old 01-27-2015, 09:49 PM
  #9
Member
SL Member


Join Date: Oct 2014
Location: Dededo, GU, USA
Posts: 64
Default

Originally Posted by Xversa View Post
Why not just run your fog wiring independently from the lights. Control them with a separate switch
Credit to: SoKrispy


This is what i did with mine. Got the power of the fog switch connected to park lights so when you turn your park lights on you can either turn it off or on. I also did wired it to my cigarette lighter but the switch has a light constantly on so i decided to remove and connect it to park lights.
jaspercanda is offline
Old 02-21-2015, 06:56 PM
  #10
Junior Member

Join Date: Feb 2015
Posts: 8
Default

Hi everyone. I bought an aftermarket fog light for my 2011 tC and wanted to know if there was a way to use the original fog harness and hook it up to my fog lamps. I searched for 2 months for an answer and found nada.
I was hoping someone could help figure out how to manage this wiring mess.

Thank you kindly.


_____________
BWizzard is offline
Old 02-22-2015, 06:04 AM
  #11
Junior Member

Join Date: Feb 2015
Posts: 19
Default

you are the man! been looking for the parking light wiring for days now.
TCnewguy is offline
Old 02-22-2015, 08:10 AM
  #12
Member
SL Member


Join Date: Oct 2014
Location: Dededo, GU, USA
Posts: 64
Default

Originally Posted by BWizzard View Post
hi everyone. i bought an aftermarket fog light for my 2011 tc and wanted to know if there was a way to use the original fog harness and hook it up to my fog lamps. i searched for 2 months for an answer and found nada.
i was hoping someone could help figure out how to manage this wiring mess.

thank you kindly
No way. The plugs wont fit unless its OEM.
jaspercanda is offline
Old 02-22-2015, 05:28 PM
  #13
Junior Member

Join Date: Feb 2015
Posts: 19
Default

okay I tired the green wire and I think I used there wrong one. There is about 5 different green wires with the grey dots coming off of the wiring. So I just used the grey one.
TCnewguy is offline
Old 02-24-2015, 01:40 AM
  #14
Junior Member

Join Date: Feb 2015
Posts: 8
Default

Originally Posted by jaspercanda View Post
No way. The plugs wont fit unless its OEM.
thanks man. i listen to you and did the wiring with the aftermarket harness. but now i have another noob question : what collor is the ignition wire under the steering wheel?
BWizzard is offline
Old 02-24-2015, 03:12 PM
  #15
Junior Member

Join Date: Feb 2015
Posts: 19
Default

big fat grey one coming out of the 2nd (middle) connector.
TCnewguy is offline
Old 02-24-2015, 08:17 PM
  #16
Junior Member

Join Date: Feb 2015
Posts: 8
Default

Originally Posted by TCnewguy View Post
big fat grey one coming out of the 2nd (middle) connector.
thanks a lot.
BWizzard is offline
Old 02-25-2015, 12:01 AM
  #17
Junior Member

Join Date: Feb 2015
Posts: 8
Default




almost there . i did some testing after hooking up to the ignition aqnd completingg all the wirring and all is GOOD! im wso happy you guys could help with this. even thought i was stupid enough to ask questions that were answered in the original post....

i will wait for warmer temperatures to go uner and finish the instal.
BWizzard is offline
Old 07-27-2015, 01:34 AM
  #18
Junior Member


Join Date: Jul 2015
Posts: 24
Default

There is a 4-pin plug behind the panel with the controls for the side mirrors. It will probably be taped to a bundle of wires. This plug is for the factory fog light switch. The wires are tan, brown, blue, and white/black. The brown wire shows 12 volts when the parking or headlights are on. If you have an aftermarket fog light switch, this is unused, and will serve the same purpose as the light green parking light wire, and that brown wire is right where you need it to be.
